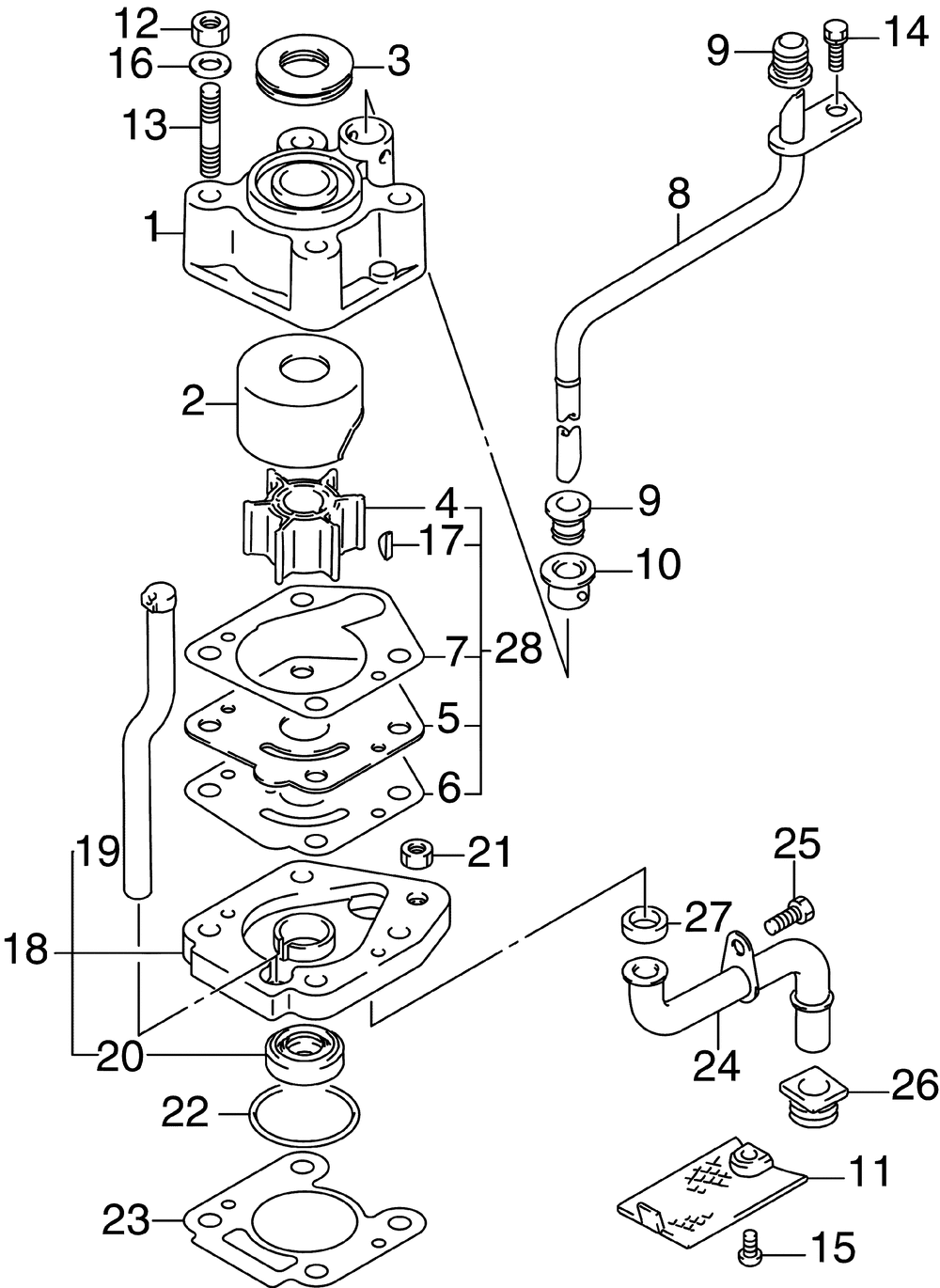

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | IMPELLER HOUSING | 1 | |
| 2 | SLEEVE (IMP CUP) | 1 | |
| 3 | GROMMETPUMP CASE | 1 | |
| 4 | IMPELLER | 1 | |
| 5 | PLATE WTR PUMP | 1 | |
| 6 | GASKET | 1 | |
| 7 | GASKET | 1 | |
| 8 | TUBEWATER(S) | 1 | |
| 8 | TUBEWATER(L) | 1 | |
| 9 | GROMMET | 2 | |
| 10 | BUSHWATER PUMP | 1 | |
| 11 | FILTERWATER | 1 | |
| 12 | NUT | 4 | |
| 13 | BOLT | 4 | |
| 14 | BOLT6X15 | 1 | |
| 15 | SCREW6X10 | 1 | |
| 16 | WASHER | 4 | |
| 17 | KEY | 1 | |
| 18 | HSGWATER INLET | 1 | |
| 19 | DRAINWATER INLET | 1 | |
| 20 | SEALOIL12X26X10 | 1 | |
| 22 | O-RING | 1 | |
| 23 | GASKET | 1 | |
| 24 | TUBEWATER INLET | 1 | |
| 25 | BOLT6X9 | 1 | |
| 26 | GROMMET | 1 | |
| 27 | GROMMET | 1 | |
| 28 | KITWTR PMP REPAIR | 1 |
