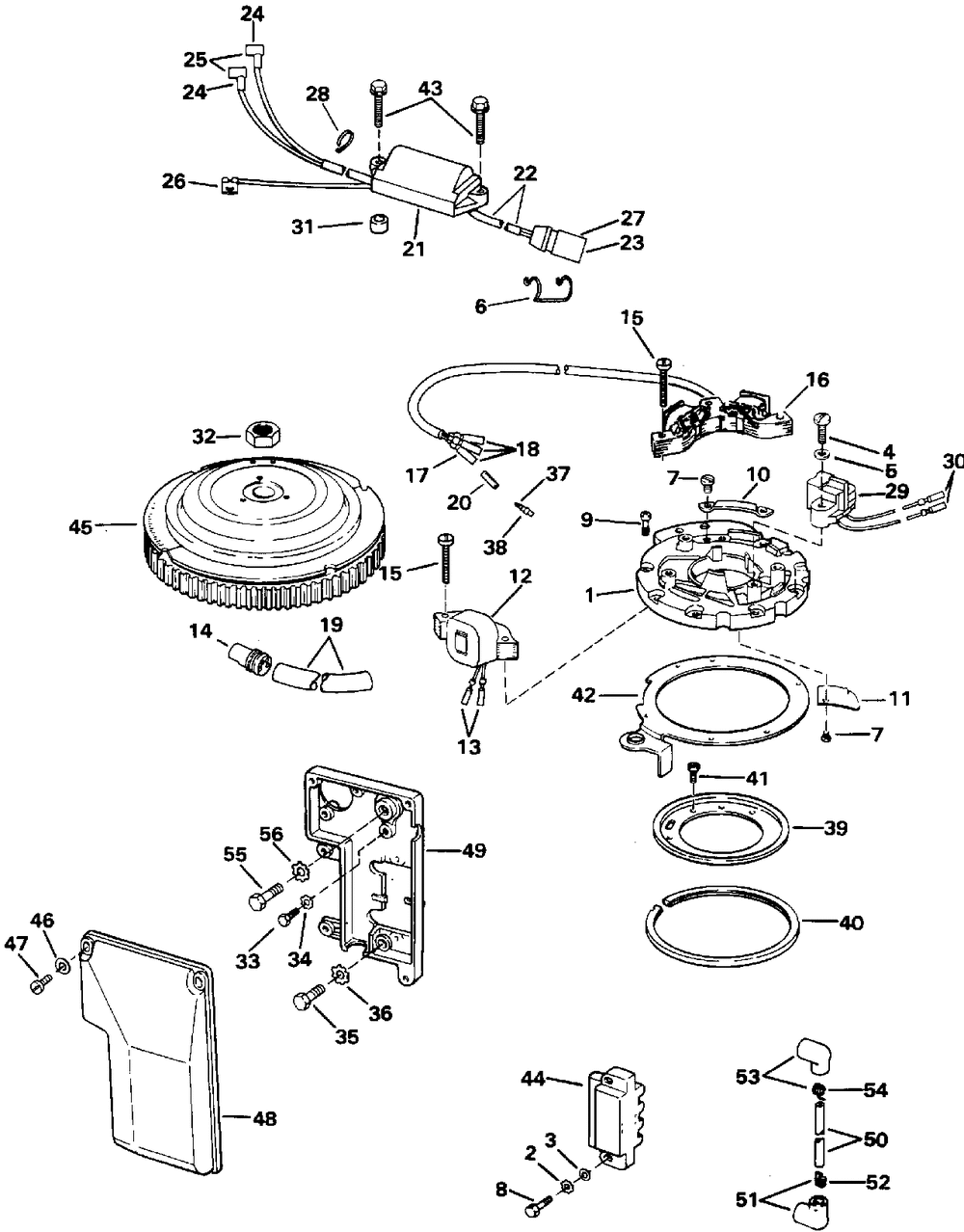

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PLATE & SLEEVE AY | 1 | |
| 2 | LOCKWASHER (005 per pack) | 2 | |
| 3 | WASHER Negative battery stud to center frame | 2 | |
| 4 | SCREW | 2 | |
| 5 | WASHER | 2 | |
| 6 | RETAINER | 1 | |
| 7 | SCREW | 3 | |
| 8 | SCREW (005 per pack) | 2 | |
| 9 | SCREW-RET TO PLATE | 5 | |
| 10 | CLAMP-LEADS | 1 | |
| 11 | COVER-LEADS | 1 | |
| 12 | COIL&LAM AYCHARGE | 1 | |
| 13 | TERMSCKT (010 per pack) | 2 | |
| 14 | CONN 5 SKT PLUG | 1 | |
| 15 | SCREWSEMS-FLAT | 2 | |
| 19 | TUBING | 1 | |
| 21 | POWER PACK AY | 1 | |
| 22 | Детать | 1 | |
| 23 | PIN(10)44-100-1414 (010 per pack) | 5 | |
| 24 | COVER IGN COIL | 2 | |
| 25 | PIN 481817-AE44 (010 per pack) | 2 | |
| 26 | RING TERMINAL (005 per pack) | 1 | |
| 27 | CONNECTOR 5-PIN | 1 | |
| 28 | TIE STRAP 100PK (100 per pack) | 1 | |
| 29 | SENSOR AY(CD-2) | 1 | |
| 31 | SPACER-SHAFT | 1 | |
| 32 | NUT FLYWHEEL | 1 | |
| 33 | SCREW-ADJ LEVER | 1 | |
| 34 | LOCKWASHER | 1 | |
| 35 | SCREW1/4-20 | 1 | |
| 39 | SUPPORT PLATE | 1 | |
| 40 | BEARING SUPPORT | 1 | |
| 41 | SCREW | 4 | |
| 42 | RETAINER | 1 | |
| 43 | SCREW | 2 | |
| 44 | IGNITION COIL | 1 | |
| 45 | Детать | 1 | |
| 47 | SCREW | 2 | |
| 48 | COVER | 1 | |
| 49 | BRACKETELECTRICAL | 1 | |
| 50 | SP PLUG LEAD AY | 2 | |
| 51 | SP PLUG BOOT 10PK (010 per pack) | 1 | |
| 52 | SP PLG SPRING TERM | 1 | |
| 53 | COIL BOOT 10 PK (010 per pack) | 1 | |
| 55 | SCREW | 1 | |
| 56 | LOCKWASHER | 1 |
