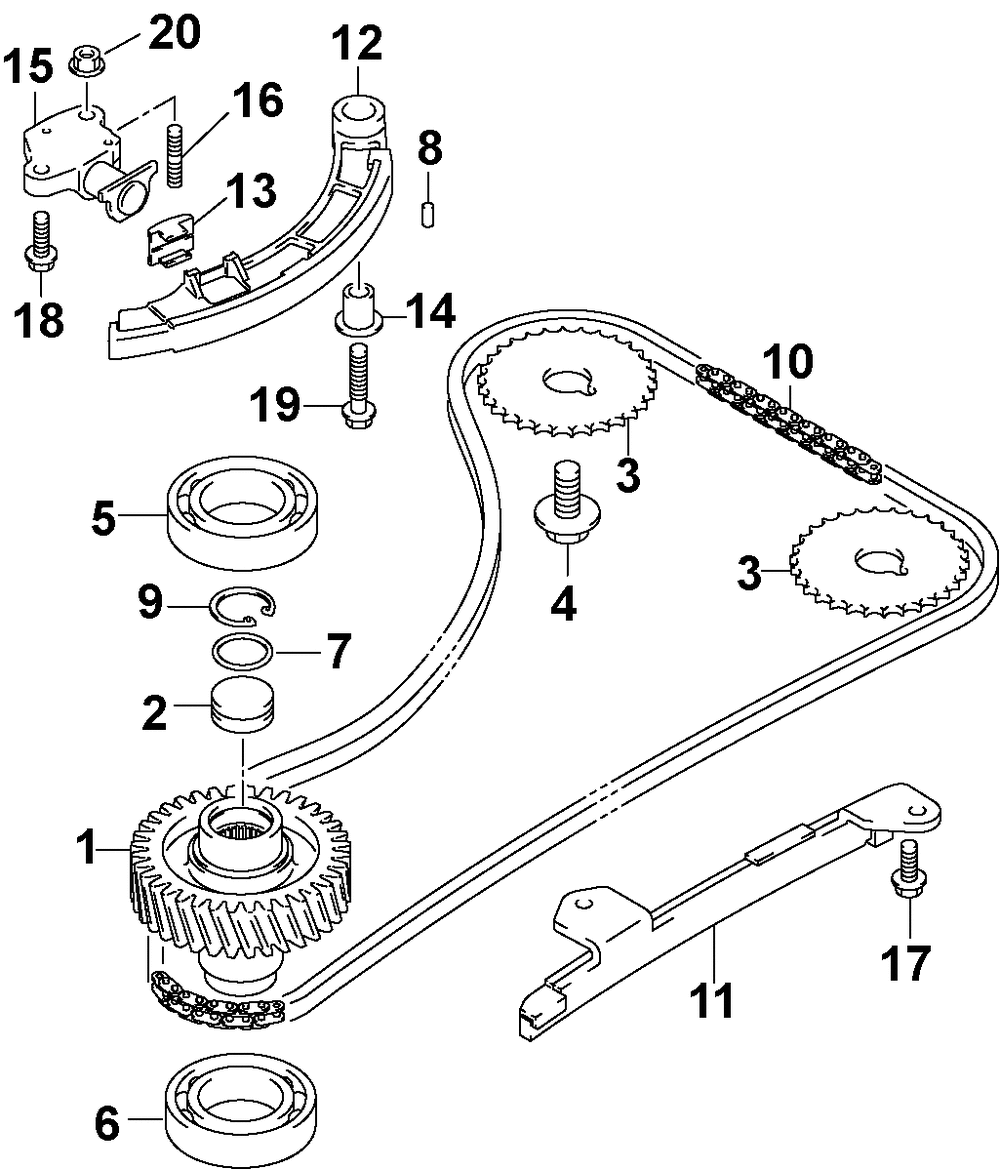

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | GEAR DRIVEN | 1 | |
| 2 | PLUG DRIVEN GEAR | 1 | |
| 3 | SPROCKET | 2 | |
| 4 | BOLT 12X25 | 2 | |
| 5 | BEARING 35X62X14 | 1 | |
| 6 | BEARING 35X62X16 | 1 | |
| 7 | RINGD:1.9 ID:21.8 | 1 | |
| 8 | PIN 5X10 MM | 2 | |
| 9 | CIRCLIP | 1 | |
| 10 | CHAIN TIMING | 1 | |
| 11 | GUIDETIMING CHAIN | 1 | |
| 12 | TENSIONER | 1 | |
| 13 | PAD | 1 | |
| 14 | SPACER | 1 | |
| 15 | ADJUSTER AY | 1 | |
| 16 | BOLTSTUD | 1 | |
| 17 | BOLT | 2 | |
| 18 | BOLT ADJUSTER | 1 | |
| 19 | BOLT | 1 | |
| 20 | NUT | 1 |
