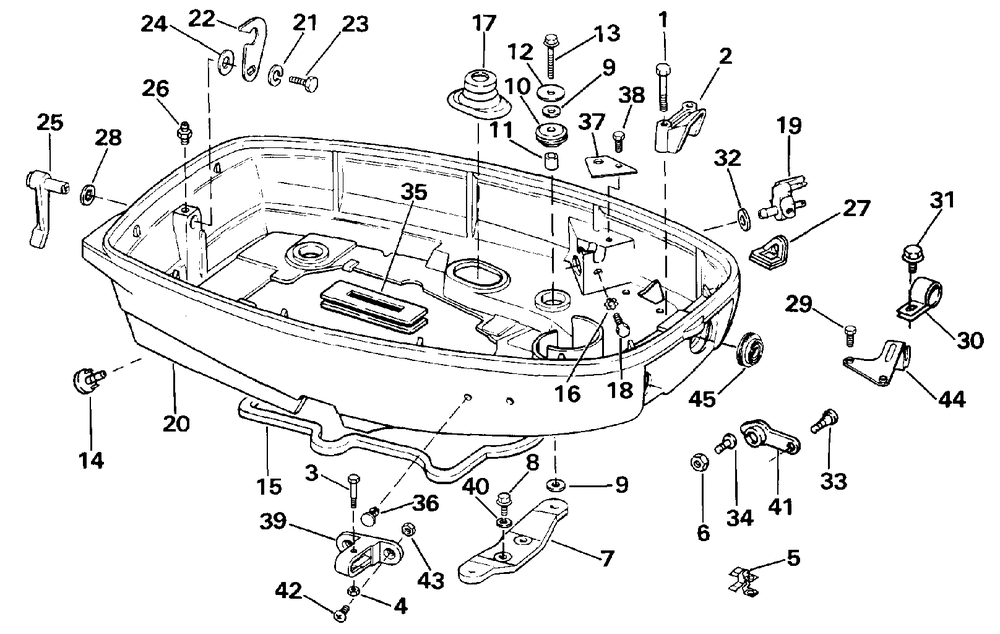

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SCREW | 2 | |
| 2 | CLAMPLMC AY-FRONT | 1 | |
| 3 | SCREW | 1 | |
| 4 | NUT | 1 | |
| 5 | SPRING CLIP | 1 | |
| 7 | MOUNT BRKT | 1 | |
| 8 | SCREW | 2 | |
| 9 | WASHER Trim manifold to DPS manifold | 8 | |
| 10 | GROMMET | 4 | |
| 11 | SPACER | 4 | |
| 12 | WASHER | 4 | |
| 13 | SCREW | 4 | |
| 14 | NIPPLE MC LWR 5PK (005 per pack) | 1 | |
| 15 | FF SEAL EXH HSG | 1 | |
| 16 | LOCKWASHER (005 per pack) | 1 | |
| 17 | GROMMET | 1 | |
| 18 | SCREW | 1 | |
| 19 | KIT AYFUEL CONN | 1 | |
| 20 | 20EC-20ELC-25EC-25ELC 20EC-20ELC-25EC-25ELC 25RC-25RLC-20CRC-20CRLC | 1 | |
| 20 | 25TEC-25TELC | 1 | |
| 21 | WASHER Negative battery stud to center frame | 1 | |
| 22 | LATCH MTR CVR REAR | 1 | |
| 24 | WASHER | 1 | |
| 25 | LATCH HNDL AY | 1 | |
| 26 | FITTING LUBE | 1 | |
| 27 | GROMMET | 1 | |
| 27 | GROMMET | 1 | |
| 28 | WASHER | 1 | |
| 29 | SCREW | 2 | |
| 30 | CLAMP | 1 | |
| 31 | HEX CAP SCREW | 1 | |
| 32 | SEAL-FUEL CONNECT | 1 | |
| 35 | GROMMET | 1 | |
| 36 | PLUG 30RC-30RLC-35RC-35RLC 30TEC-30TELC | 2 | |
| 37 | Детать | 1 | |
| 38 | SCREW | 1 | |
| 39 | BLOCK-ANCHOR | 1 | |
| 40 | LOCKWASHER 5 PK (005 per pack) | 2 | |
| 42 | SCREW | 2 | |
| 43 | NUT | 2 | |
| 44 | LOCK BRKT-THROTTLE | 1 | |
| 45 | GROMMET | 1 | |
| 0397028 | REM CONT KIT Not Shown | 1 |
