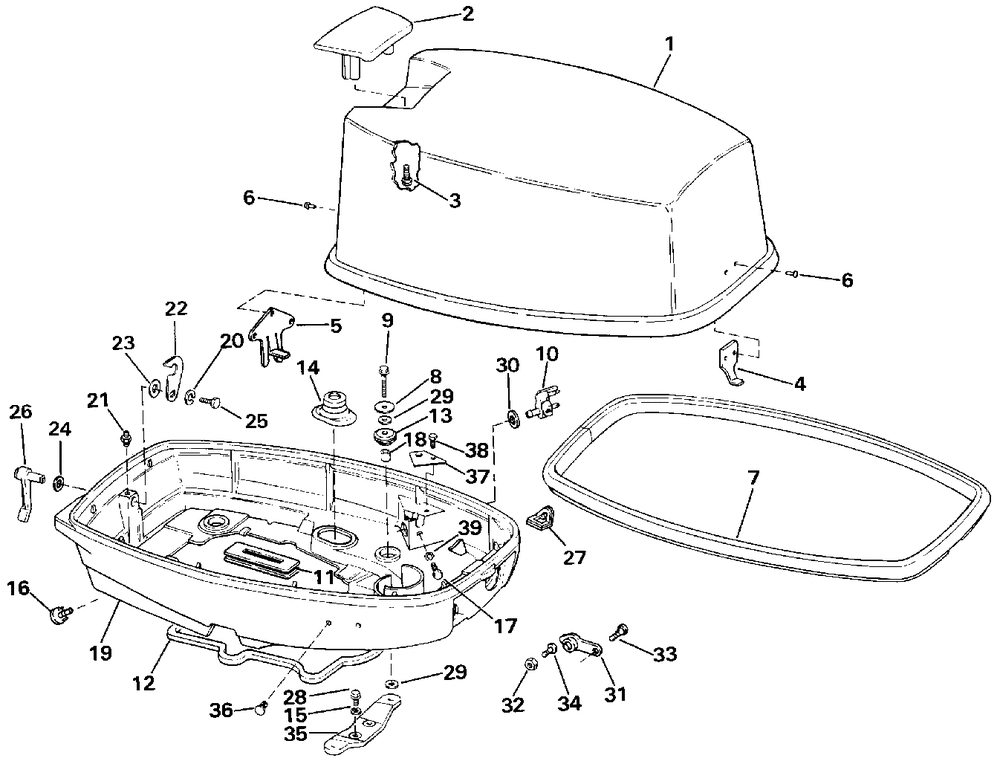

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | Детать | 1 | |
| 2 | TILT HDLE-MTR CVR Fiberglass Cover . | 1 | |
| 3 | *SCREW Duct to cover | 2 | |
| 4 | HOOK FRONT MTR CVR 20CRE - 20CRLE 25RE - 25RLE 30RE - 30RLE 35RE - 35RLE | 1 | |
| 5 | HOOK-MOTOR COVER | 1 | |
| 6 | RIVET | 5 | |
| 7 | SEAL MTR CVRBLK | 1 | |
| 8 | WASHER | 4 | |
| 9 | SCREW | 4 | |
| 10 | KIT AYFUEL CONN | 1 | |
| 11 | GROMMET | 1 | |
| 12 | FF SEAL EXH HSG | 1 | |
| 13 | GROMMET | 4 | |
| 14 | GROMMET | 1 | |
| 15 | LOCKWASHER 5 PK (005 per pack) | 2 | |
| 16 | NIPPLE MC LWR 5PK (005 per pack) | 1 | |
| 17 | SCREW | 1 | |
| 18 | SPACER | 4 | |
| 19 | 20EC-20ELC-25EC-25ELC 20EC-20ELC-25EC-25ELC 25RC-25RLC-20CRC-20CRLC | 1 | |
| 20 | WASHER Negative battery stud to center frame | 1 | |
| 21 | FITTING LUBE | 1 | |
| 22 | LATCH MTR CVR REAR | 1 | |
| 23 | WASHER | 1 | |
| 24 | WASHER | 1 | |
| 25 | SCREW | 1 | |
| 26 | LATCH HNDL AY | 1 | |
| 27 | GROMMET | 1 | |
| 29 | WASHER Trim manifold to DPS manifold | 8 | |
| 30 | SEAL-FUEL CONNECT | 1 | |
| 35 | MOUNT BRKT | 1 | |
| 36 | PLUG 30RC-30RLC-35RC-35RLC 30TEC-30TELC | 2 | |
| 37 | Детать | 1 | |
| 38 | SCREW | 1 | |
| 39 | LOCKWASHER (005 per pack) | 1 | |
| 0210853 | Not Shown | 1 | |
| 0282503 | DECAL SET Not Shown | 1 |
