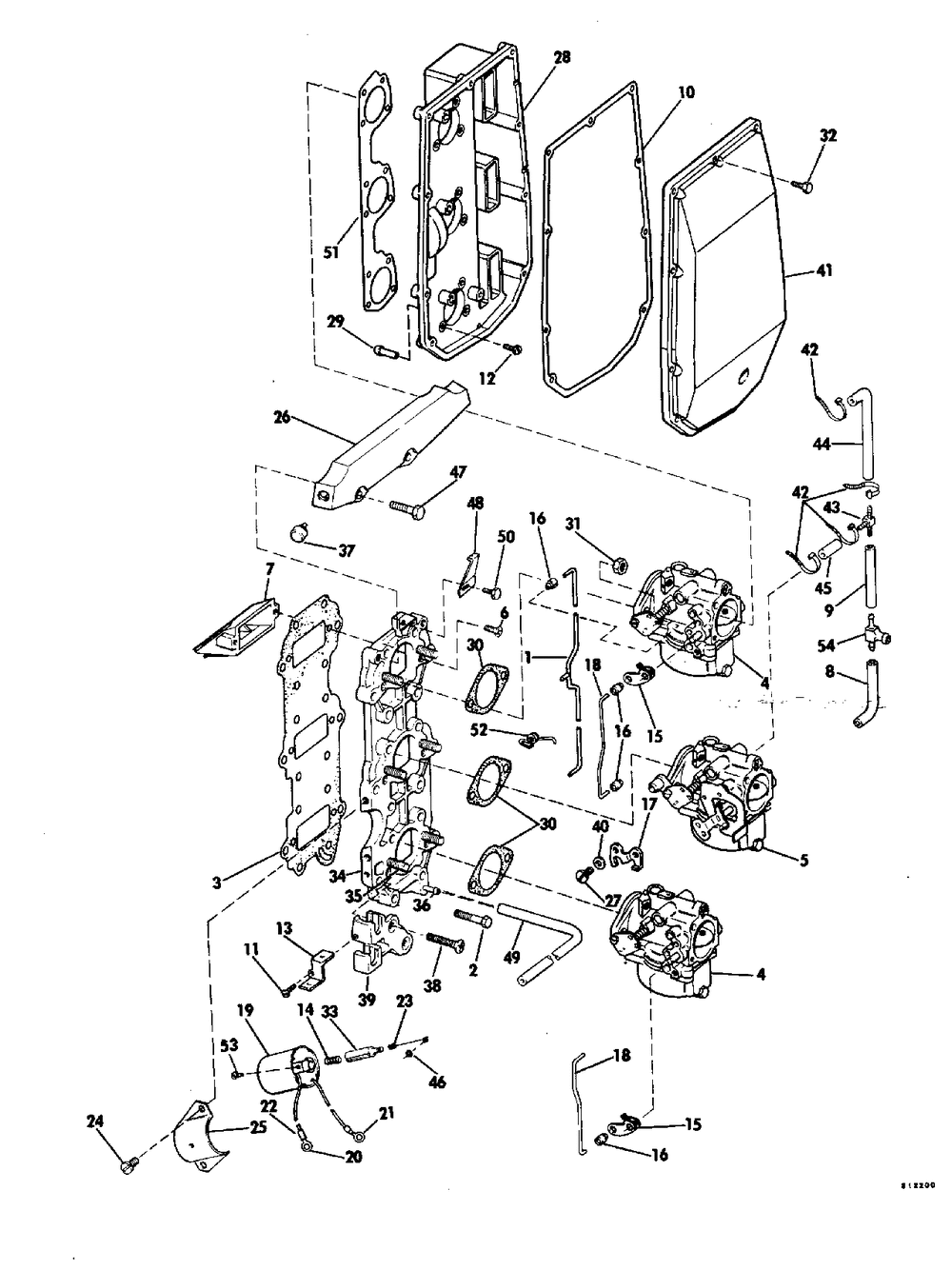

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | LINK | 1 | |
| 2 | SCREW | 16 | |
| 3 | GASKET | 1 | |
| 6 | SCREW | 6 | |
| 7 | Детать | 3 | |
| 10 | GASKET AIR SILNCR | 1 | |
| 11 | SCREW | 1 | |
| 12 | Детать | 9 | |
| 13 | Детать | 1 | |
| 14 | SPRING | 1 | |
| 15 | ARM & SCREW | 2 | |
| 16 | RETAINER | 7 | |
| 17 | LEVER | 2 | |
| 18 | LINK | 2 | |
| 19 | Детать | 1 | |
| 20 | TERM. 40724 (005 per pack) | 1 | |
| 21 | TERM. 61867-2 0.250 in. (6.3 mm) diameter | 1 | |
| 22 | SLEEVE | 1 | |
| 23 | SPRING | 1 | |
| 24 | Детать | 2 | |
| 25 | CLAMP | 1 | |
| 26 | BRACKET | 1 | |
| 27 | SCREW UPPER CARBURETOR ONLY | 2 | |
| 28 | Детать | 1 | |
| 29 | NIPPLE | 1 | |
| 30 | GASKET 5PK (Also Available in Carburetor Repair Kit.) (005 per pack) | 3 | |
| 31 | NUT | 6 | |
| 32 | SCREW (005 per pack) | 10 | |
| 33 | Детать | 1 | |
| 34 | INTAKE MAN STUD | 1 | |
| 35 | STUD | 6 | |
| 36 | NIPPLE | 1 | |
| 37 | BUMPER | 2 | |
| 38 | SCREW-ANCHOR BLOCK | 2 | |
| 39 | Детать | 1 | |
| 40 | WASHER | 2 | |
| 41 | Детать | 1 | |
| 42 | TIE STRAP 100PK (100 per pack) | 6 | |
| 43 | TEE See "Oil Recirculation System" | 1 | |
| 46 | O-RING | 1 | |
| 47 | SCREW | 2 | |
| 48 | Детать | 1 | |
| 50 | SCREW | 1 | |
| 51 | GASKET | 1 | |
| 52 | Детать | 1 | |
| 53 | SCREW | 1 | |
| 54 | NIPPLE | 1 |
