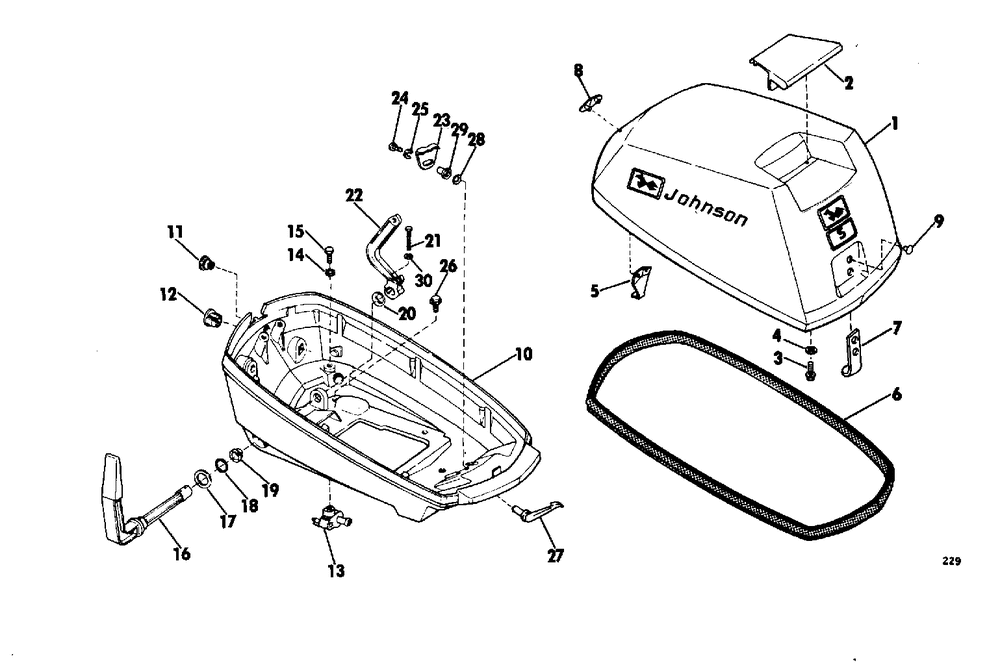

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | Детать | 1 | |
| 2 | Electric Start | 1 | |
| 3 | SCREW | 2 | |
| 4 | WASHER | 2 | |
| 5 | HOOK | 1 | |
| 6 | Детать | 1 | |
| 7 | Детать | 1 | |
| 8 | RIVET PLATE | 1 | |
| 9 | RIVET | 1 | |
| 10 | Детать | 1 | |
| 11 | Детать | 1 | |
| 12 | GROMMET CHOKE KNOB | 1 | |
| 13 | FUEL CONN. BODY AY Fuel Connector With Quick Disconnect | 1 | |
| 14 | WASHER | 1 | |
| 15 | SCREW | 1 | |
| 16 | Детать | 1 | |
| 17 | THRUST WASHER | 1 | |
| 18 | WASHER | 1 | |
| 19 | BUSHING 5-PK (005 per pack) | 1 | |
| 20 | WASHER | 1 | |
| 21 | SCREW | 1 | |
| 22 | LEVER | 1 | |
| 23 | LATCH | 1 | |
| 24 | SCREW | 1 | |
| 25 | WASHER | 1 | |
| 26 | SCREW | 4 | |
| 27 | LATCH HNDL | 1 | |
| 28 | WASHER | 1 | |
| 29 | Детать | 1 | |
| 30 | LOCKWASHER | 1 |
