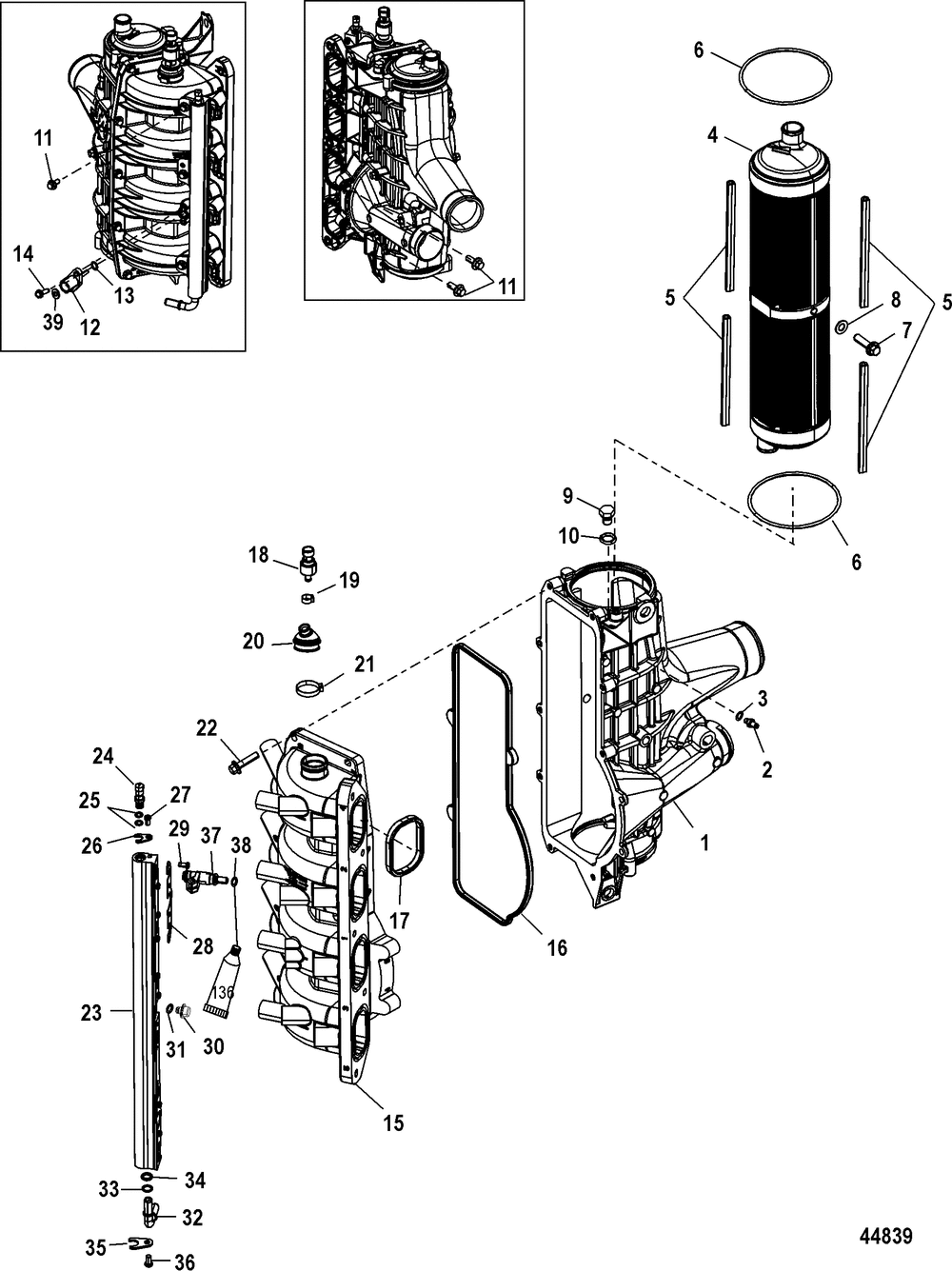

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| - | IAFM SNtahos_ 1B733800 & Below | 1 | |
| - | IAFM SNtahos_ 1B733801 thru 1B842419 1B85xxxx THRU 1B85xxxx | 1 | |
| 1 | CAC ASSEMBLY | 1 | |
| 9 | PLUG-8MM | 1 | |
| 11 | SCREW @2 (2 per pack) | 5 | |
| 12 | SENSOR ASSY-TEMP | 1 | |
| 13 | O RING | 1 | |
| 14 | SCREW @2 (2 per pack) | 2 | |
| 15 | ORD 8M0041478 | 1 | |
| 16 | SEAL | 1 | |
| 17 | SEAL | 6 | |
| 18 | SENSOR | 1 | |
| 19 | CLAMP | 1 | |
| 20 | BOOT | 1 | |
| 21 | CLAMP | 1 | |
| 22 | SCREW @2 (2 per pack) | 9 | |
| 23 | FUEL RAIL KIT | 1 | |
| 24 | VALVE KIT | 1 | |
| 25 | O RING @2 (2 per pack) | 2 | |
| 26 | BRACKET | 1 | |
| 27 | SCREW @2 (2 per pack) | 1 | |
| 28 | BRACKET | 3 | |
| 30 | DAMPER | 1 | |
| 31 | O RING | 1 | |
| 32 | TUBE KIT-FUEL INL | 1 | |
| 33 | WASHER @2 (2 per pack) | 1 | |
| 34 | O RING @2 (2 per pack) | 1 | |
| 35 | BRACKET | 1 | |
| 37 | INJECTOR-FUEL | 4 | |
| 39 | GASKET | 1 |
