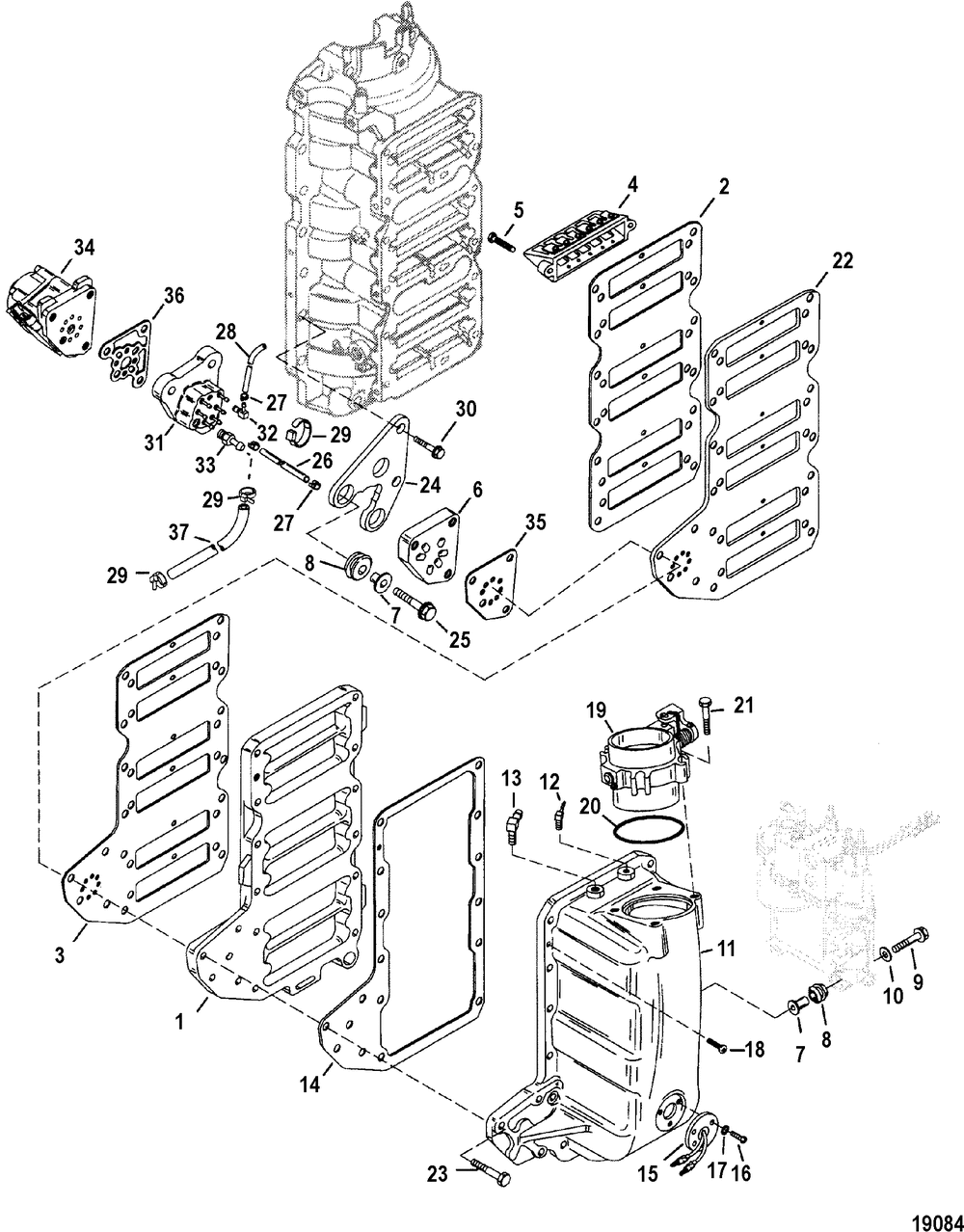

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| - | GASKET SET | 1 | |
| - | AIR HANDLER | 1 | |
| 1 | ADAPTOR PLATE KIT | 1 | |
| 2 | GASKET | 1 | |
| 3 | GASKET | 1 | |
| 4 | REED BLOCK ASSY (1 PIECE) SNtahos_ 0G438000 & Up | 6 | |
| 5 | SCREW | 12 | |
| 6 | PLENUM ASSY | 1 | |
| 7 | BUSHING | 6 | |
| 8 | GROMMET | 6 | |
| 9 | SCREW @10 (10 per pack) | 3 | |
| 10 | WASHER | 3 | |
| 11 | QV | 1 | |
| 12 | FITTING | 1 | |
| 13 | ELBOW | 1 | |
| 15 | SENSOR | 1 | |
| 16 | SCREW | 3 | |
| 17 | LOCKWASHER @5 (5 per pack) | 3 | |
| 18 | SCREW | 2 | |
| 19 | ORD 841194T04 | 1 | |
| 20 | O RING | 1 | |
| 21 | SCREW | 4 | |
| 22 | PLATE | 1 | |
| 23 | SCREW | 3 | |
| 24 | BRACKET | 1 | |
| 25 | SCREW | 3 | |
| 26 | ORD 32-855834 66 | 6 | |
| 27 | TIE STRAP @5 (5 per pack) | 13 | |
| 28 | TUBING-39 INCH | 1 | |
| 29 | TIE STRAP @100 (100 per pack) | 3 | |
| 31 | NLA REF SB 03-08 | 1 | |
| 33 | FITTING | 1 | |
| 34 | REF OB SB 03-08 | 1 | |
| 35 | GASKET | 1 | |
| 36 | GASKET | 1 | |
| 37 | TUBING-25 IN@2 (2 per pack) | 1 |
