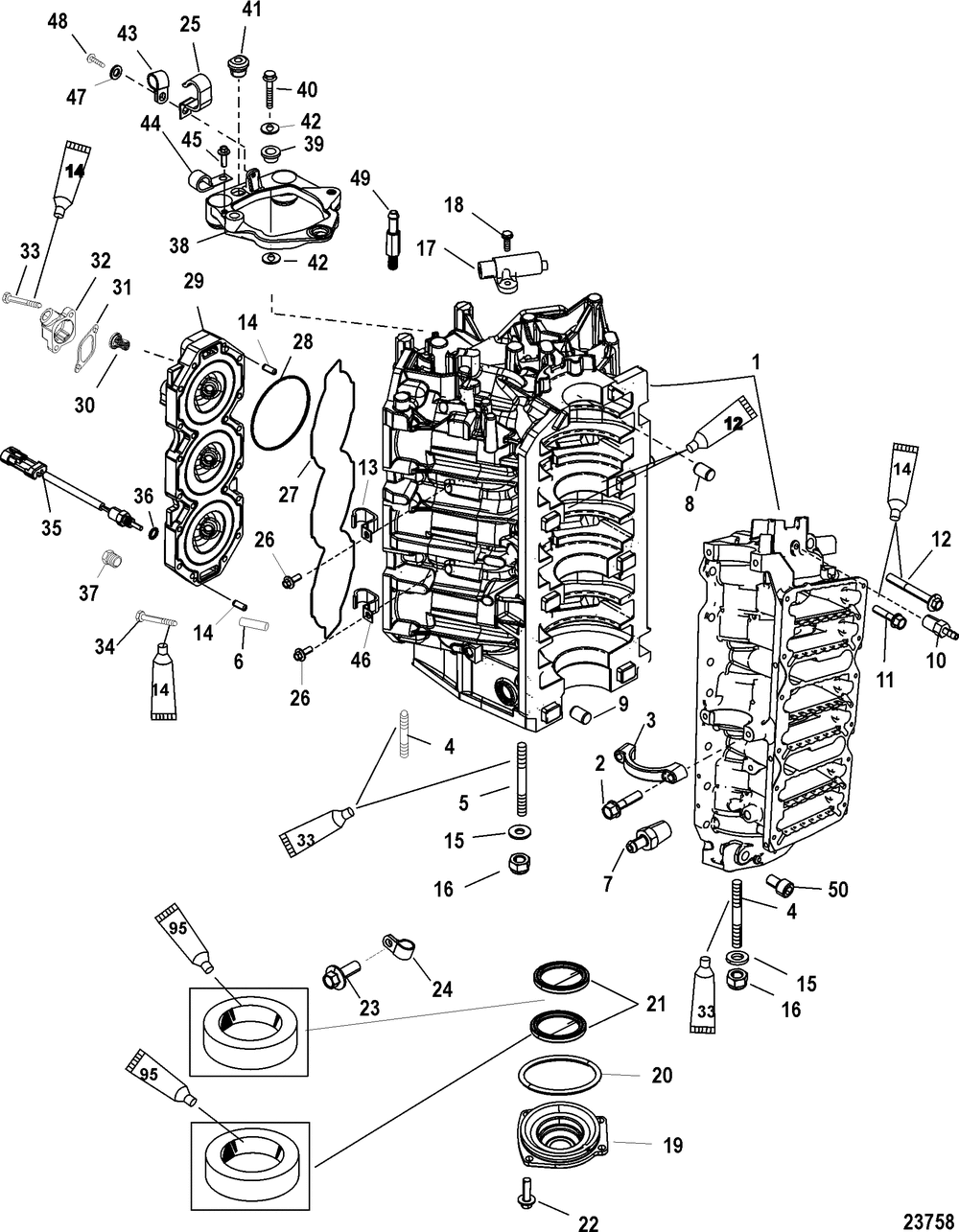

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| - | GASKET SET | 1 | |
| - | PH 200DFI 3L (200) | 1 | |
| - | PH 225DFI 3L (225) | 1 | |
| 1 | CYLINDER BLOCK (200) | 1 | |
| 1 | CYLINDER BLOCK (225) | 1 | |
| 2 | SCREW | 4 | |
| 3 | COVER | 2 | |
| 4 | STUD | 4 | |
| 5 | STUD | 6 | |
| 6 | DEFLECTOR-WATER | 6 | |
| 7 | CHECK VALVE | 1 | |
| 8 | PIN-CENTER MAIN | 3 | |
| 9 | PIN-DOWEL-SOLID | 1 | |
| 10 | CONNECTOR | 1 | |
| 11 | SCREW | 14 | |
| 12 | SCREW | 8 | |
| 13 | J CLIP | 1 | |
| 14 | PIN-DOWEL @3 (3 per pack) | 4 | |
| 15 | WASHER | 10 | |
| 16 | NUT @3 (3 per pack) | 10 | |
| 17 | SENSOR ASSY | 1 | |
| 18 | SCREW | 2 | |
| 19 | END CAP ASSY | 1 | |
| 20 | O RING | 1 | |
| 21 | SEAL | 2 | |
| 22 | SCREW @5 (5 per pack) | 4 | |
| 23 | SCREW @5 (5 per pack) | 1 | |
| 24 | CLAMP | 1 | |
| 27 | SEAL | 2 | |
| 28 | SEAL | 6 | |
| 29 | HEAD ASY-CYL-STBD (Starboard) | 1 | |
| 29 | HEAD ASY-CYL-PORT (Port | 1 | |
| 30 | THERMOSTAT 130 | 2 | |
| 31 | GASKET | 2 | |
| 32 | COVER (Port) | 1 | |
| 32 | COVER (Starboard) | 1 | |
| 33 | SCREW | 4 | |
| 34 | SCREW @5 (5 per pack) | 40 | |
| 35 | SENSOR ASSY-TEMP | 2 | |
| 36 | O-RING | 2 | |
| 37 | PLUG-(BRASS)@2 (2 per pack) | 1 | |
| 38 | PLATE ASSY-ALT | 1 | |
| 39 | MOUNT | 3 | |
| 40 | SCREW | 3 | |
| 41 | GROMMET SNtahos_ 0G359968 & Up | 1 | |
| 42 | WASHER | 6 | |
| 43 | CLAMP | 1 | |
| 44 | J CLIP | 1 | |
| 46 | CLIP | 1 | |
| 47 | WASHER (10 per pack) | 1 | |
| 48 | SCREW @5 (5 per pack) | 1 | |
| 49 | PIN | 1 | |
| 50 | SCREW | 1 |
