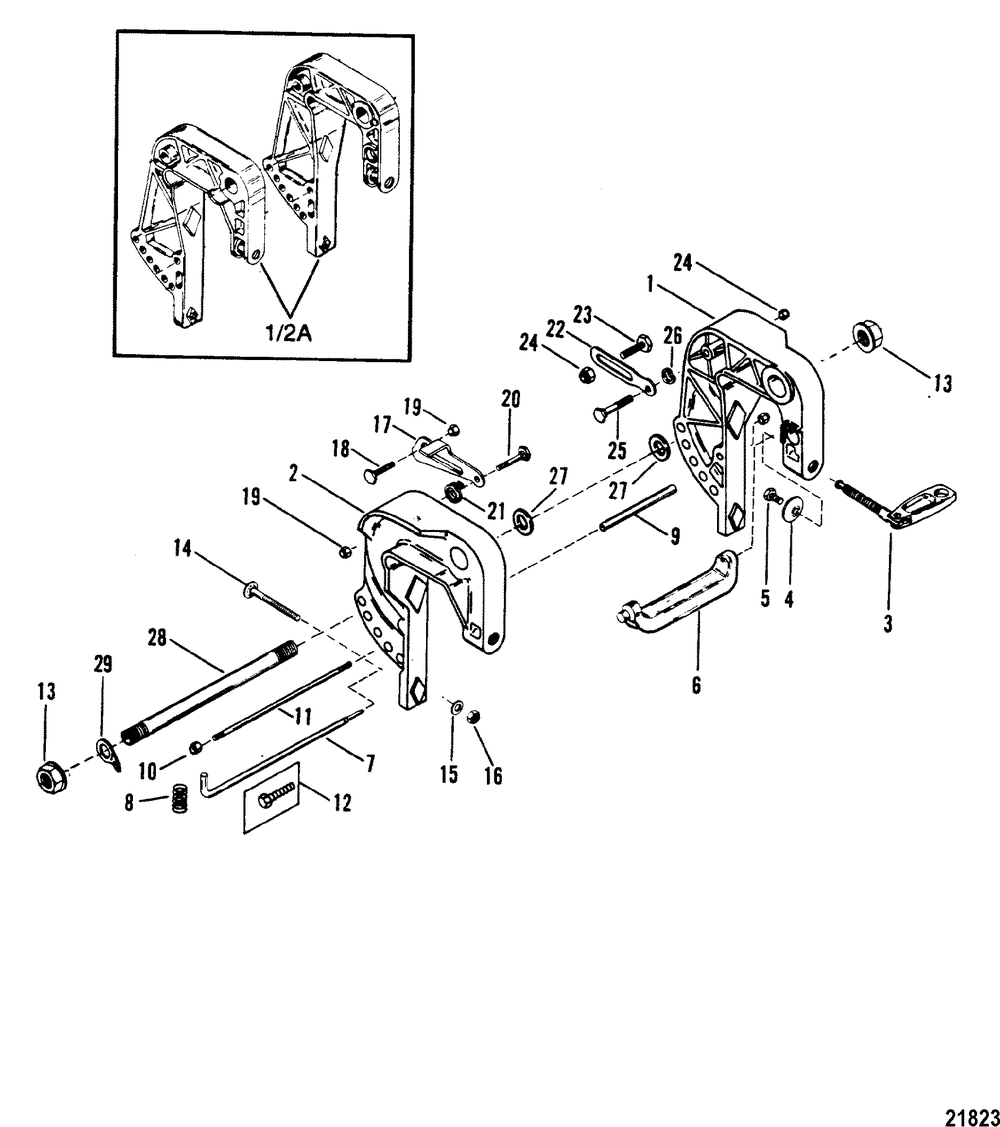

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BRKT-TRANSOM-BLK (5 Hole Screw Attaching) | 1 | |
| 1 | BRKT-TRANSOM-BLK (5 Hole Stud Attaching) | 1 | |
| 1 | BRKT-TRANSOM-BLK (5 Hole Stud Attaching) | 1 | |
| 1 | ORD 1497-8794A 9 (5 Hole Screw Attaching) | 1 | |
| 1 | ORD 1497-8794A 9 | 1 | |
| 1/2A | TRANSOM BRKT KIT | 1 | |
| 1/2A | TRANSOM BRKT KIT | 1 | |
| 2 | CLAMP BRACKET (5 Hole Stud Attaching) | 1 | |
| 2 | CLAMP BRACKET (5 Hole Stud Attaching) | 1 | |
| 2 | BRKT-TRANSOM-BLK (5 Hole Screw Attaching) | 1 | |
| 2 | ORD 1497-8796A7 (5 Hole Screw Attaching) | 1 | |
| 2 | ORD 1497-8796A7 | 1 | |
| 3 | SCREW ASSY-THUMB | 2 | |
| 3 | SCREW ASSY-THUMB | 2 | |
| 4 | ORD 12-818884 | 2 | |
| 5 | SCREW | 2 | |
| 6 | HANDLE | 1 | |
| 7 | PIN KIT-TILT LOCK | 1 | |
| 7 | PIN-KIT USE WITH 5 HOLE BRACKET | 1 | |
| 8 | SPRING USE WITH 5 HOLE BRACKET | 1 | |
| 9 | SPACER | 1 | |
| 9 | SPACER SCREW ATTACHING | 1 | |
| 10 | NUT @2 (2 per pack) | 2 | |
| 11 | STUD | 1 | |
| 12 | SCREW @5 (5 per pack) | 2 | |
| 13 | NUT | 2 | |
| 14 | SCREW | 2 | |
| 15 | WASHER | 2 | |
| 16 | NUT | 2 | |
| 17 | LEVER | 1 | |
| 18 | SCREW | 1 | |
| 19 | NUT @5 (5 per pack) | 2 | |
| 20 | SCREW | 1 | |
| 21 | SPRING | 1 | |
| 22 | STRAP | 1 | |
| 26 | WASHER-WAVE @5 (5 per pack) | 1 | |
| 27 | WASHER @2 (2 per pack) | 2 | |
| 28 | TILT TUBE | 1 | |
| 29 | CLIP | 1 |
