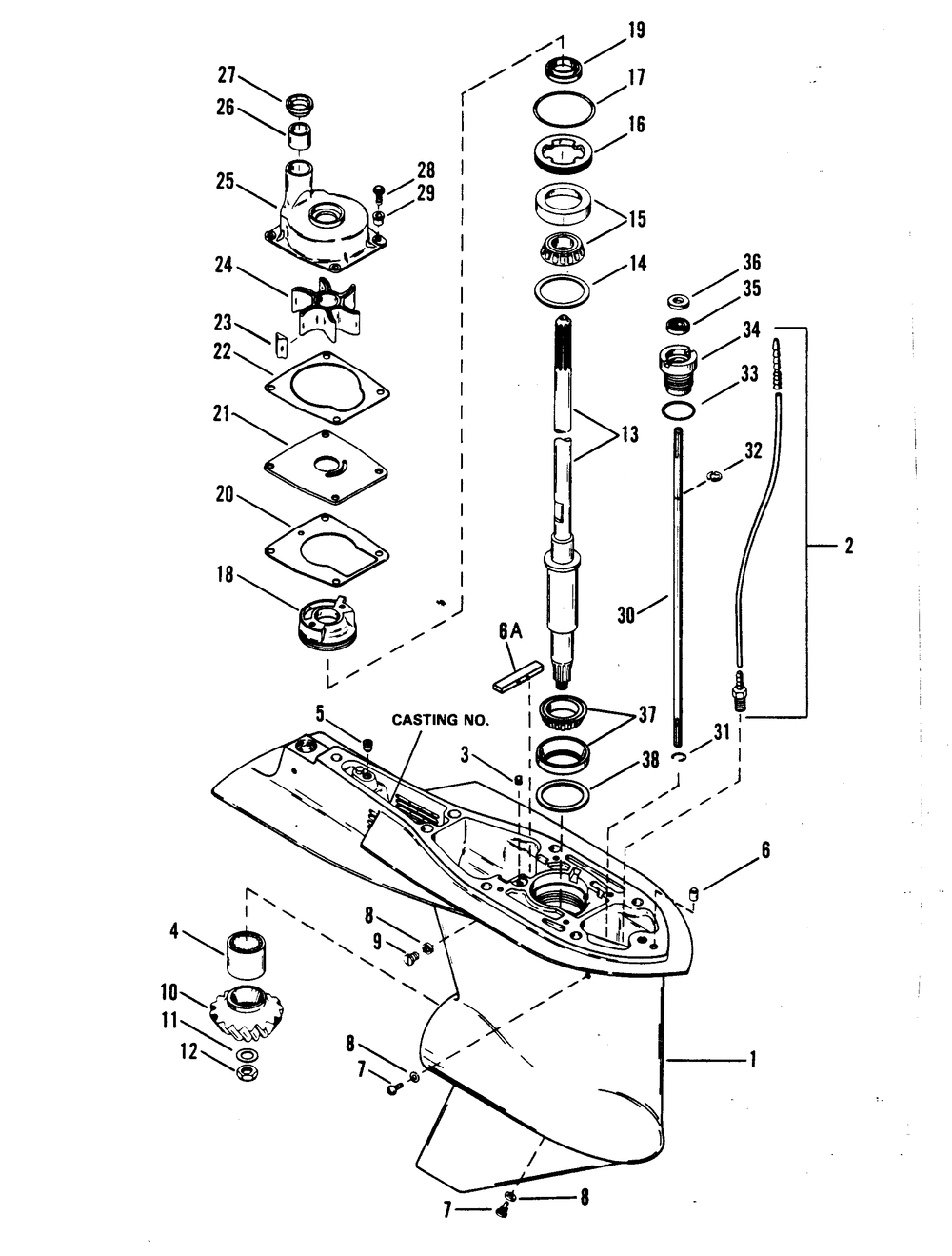

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| - | GEAR HOUSING | 1 | |
| - | GEAR HOUSING | 1 | |
| - | GEAR HOUSING | 1 | |
| - | GEAR HOUSING | 1 | |
| - | GEAR HSG LG-GREY | 1 | |
| - | GEAR HOUSING | 1 | |
| 1 | GEAR HSG ASY-BLK | 1 | |
| 1 | GEAR HSG ASY-GREY CASTING tahos_1659-9554C4 | 1 | |
| 2 | CONNECTOR ASSY (LONG/X-LONG) | 1 | |
| 2 | CONNECTOR-FUEL (XX-LONG) | 1 | |
| 3 | PLUG-PIPE | 1 | |
| 4 | BEARING | 1 | |
| 5 | SCREW-SET | 1 | |
| 6 | PIN-DOWEL-SOLID | 2 | |
| 6A | FILLER PLATE | 1 | |
| 7 | SCREW @5 (5 per pack) | 2 | |
| 8 | SEAL-BLUE @15 (15 per pack) | 3 | |
| 9 | SCREW-DRAIN @2 (2 per pack) | 1 | |
| 11 | WASHER @2 (2 per pack) | 1 | |
| 12 | NUT @5 (5 per pack) | 1 | |
| 13 | DRIVESHAFT ASY | 1 | |
| 13 | DRIVESHAFT | 1 | |
| 13 | DRIVESHAFT ASY | 1 | |
| 14 | SHIM | 0 | |
| 15 | BEARING KIT | 1 | |
| 16 | NUT | 1 | |
| 17 | O RING | 1 | |
| 18 | BASE ASSY-W/P | 1 | |
| 19 | SEAL | 1 | |
| 20 | GASKET | 1 | |
| 21 | FACEPLATE | 1 | |
| 22 | GASKET | 1 | |
| 23 | KEY @2 (2 per pack) | 1 | |
| 24 | IMPELLER | 1 | |
| 25 | WATER PUMP HSG | 1 | |
| 26 | SEAL @2 (2 per pack) | 1 | |
| 27 | GUIDE | 1 | |
| 28 | SCREW @4 (4 per pack) | 4 | |
| 29 | INSULATOR @2 (2 per pack) | 4 | |
| 30 | SHIFT SHAFT ASSY | 1 | |
| 31 | RETAINING RING | 1 | |
| 32 | E RING @2 (2 per pack) | 1 | |
| 33 | O RING @5 (5 per pack) | 1 | |
| 34 | BUSHING ASSY | 1 | |
| 35 | SEAL | 1 | |
| 36 | WASHER | 1 | |
| 37 | BEARING KIT | 1 | |
| 38 | SHIM SET | 0 |
