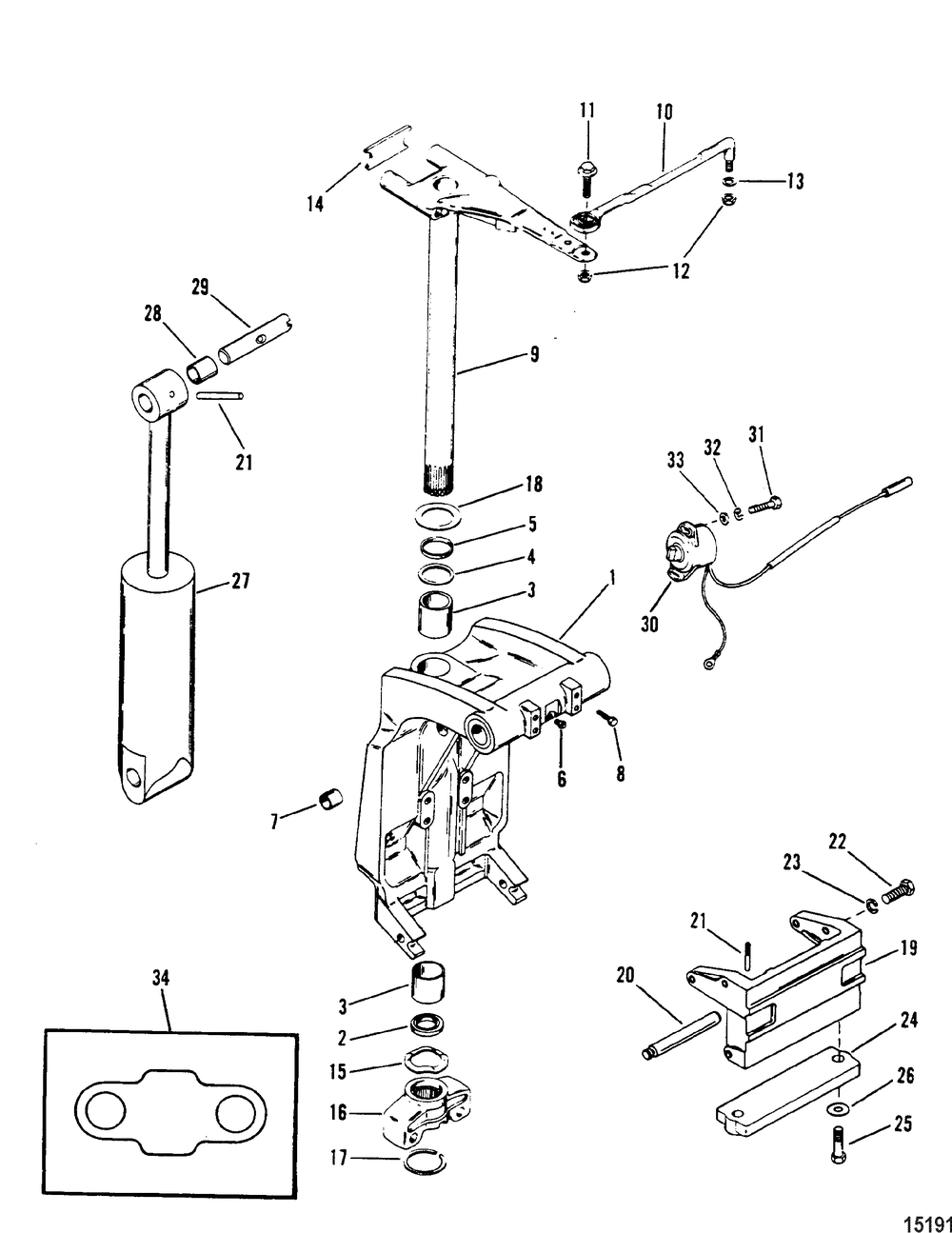

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ORD 1499-8710T20 (GRAY) | 1 | |
| 1 | BRACKET-SWIVEL-BL (BLACK) | 1 | |
| 2 | SEAL | 1 | |
| 3 | BUSHING | 2 | |
| 4 | O RING @4 (4 per pack) | 1 | |
| 5 | SPACER | 1 | |
| 6 | FITTING @2 (2 per pack) | 2 | |
| 7 | BUSHING | 2 | |
| 8 | SCREW | 2 | |
| 9 | SWIVEL PIN ASY-BK (BLACK) | 1 | |
| 9 | ORD 99661A35 (GRAY) | 1 | |
| 9 | SWIVEL PIN ASSY | 1 | |
| 9 | SWIVEL PIN ASSY | 1 | |
| 9 | SWIVEL PIN (Sea Ray Round End) | 1 | |
| 10 | LINK ROD KIT | 1 | |
| 11 | SCREW | 1 | |
| 12 | NUT-SS @3 (3 per pack) | 2 | |
| 13 | WASHER | 2 | |
| 14 | BUMPER (X-LONG) | 1 | |
| 15 | WASHER-WAVE | 1 | |
| 16 | YOKE-BOTTOM (BLACK) | 1 | |
| 16 | ORD 42961A06 (GRAY) | 1 | |
| 17 | RING-RETAINING | 1 | |
| 18 | WASHER | 1 | |
| 19 | BRACKET (Not Used With Power Trim) | 1 | |
| 20 | SHAFT (Not Used With Power Trim) | 1 | |
| 21 | PIN-TRILOBE | 2 | |
| 22 | SCREW | 6 | |
| 23 | LOCKWASHER | 6 | |
| 24 | ANODE KIT | 1 | |
| 25 | SCREW | 2 | |
| 26 | WASHER (10 per pack) | 2 | |
| 27 | SHOCK ABSORBER-BL (Not Used With Power Trim) | 1 | |
| 27 | SHOCK ABSORBER-BL (Not Used With Power Trim) | 1 | |
| 27 | SHOCK ABSORBER-BL (Not Used With Power Trim) | 1 | |
| 29 | SHAFT-UPPER TILT | 1 | |
| 30 | ORDER 8M0098273 | 1 | |
| 31 | SCREW | 2 | |
| 32 | LOCKWASHER @15 (15 per pack) | 2 | |
| 33 | WASHER @5 (5 per pack) | 2 | |
| 34 | BUMPER (X-LONG) | 1 |
