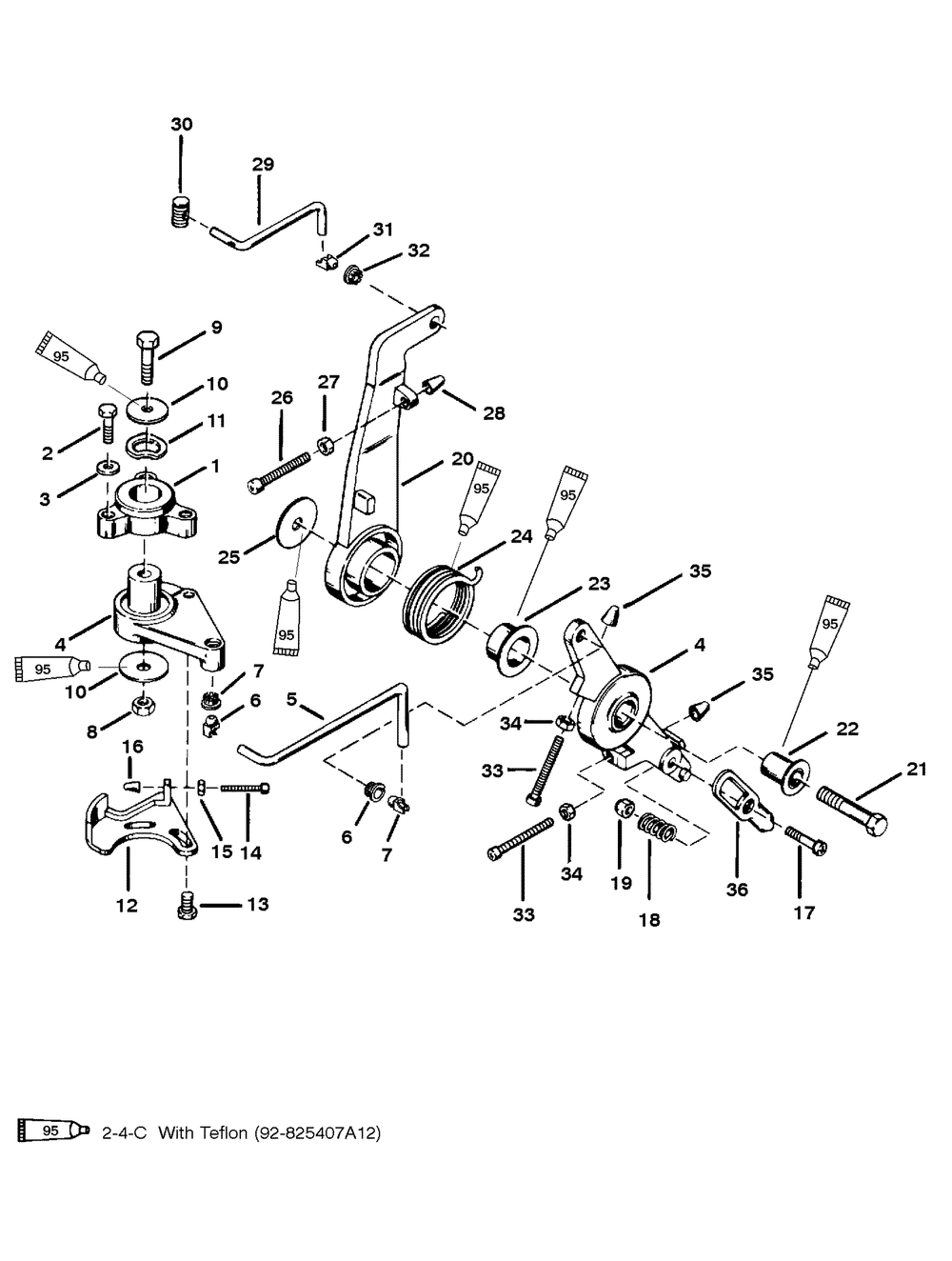

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BRACKET | 1 | |
| 2 | SCREW @5 (5 per pack) | 3 | |
| 3 | LOCKWASHER @5 (5 per pack) | 3 | |
| 4 | ACTUATOR-THROTTLE | 1 | |
| 5 | ROD-LINK | 1 | |
| 6 | BALL (1 Piece Shaft) | 2 | |
| 7 | BASE (1 Piece Shaft) | 2 | |
| 8 | NUT @5 (5 per pack) | 1 | |
| 9 | SCREW @5 (5 per pack) | 1 | |
| 10 | WASHER | 2 | |
| 11 | WASHER-WAVE @3 (3 per pack) | 1 | |
| 12 | PLATE-THROTTLE | 1 | |
| 13 | SCREW | 2 | |
| 14 | SCREW | 1 | |
| 15 | NUT @5 (5 per pack) | 1 | |
| 16 | CAP DESIGN I | 1 | |
| 17 | SCREW | 1 | |
| 18 | SPRING @5 (5 per pack) | 1 | |
| 19 | NUT @5 (5 per pack) | 1 | |
| 20 | LEVER-SPARK ADV | 1 | |
| 21 | SCREW | 1 | |
| 22 | BUSHING | 1 | |
| 23 | BUSHING | 1 | |
| 24 | SPRING | 1 | |
| 25 | ORD 12- 46765 | 1 | |
| 26 | SCREW | 1 | |
| 29 | LINK ROD | 1 | |
| 30 | PIVOT | 1 | |
| 33 | SCREW | 1 | |
| 36 | LATCH | 1 |
