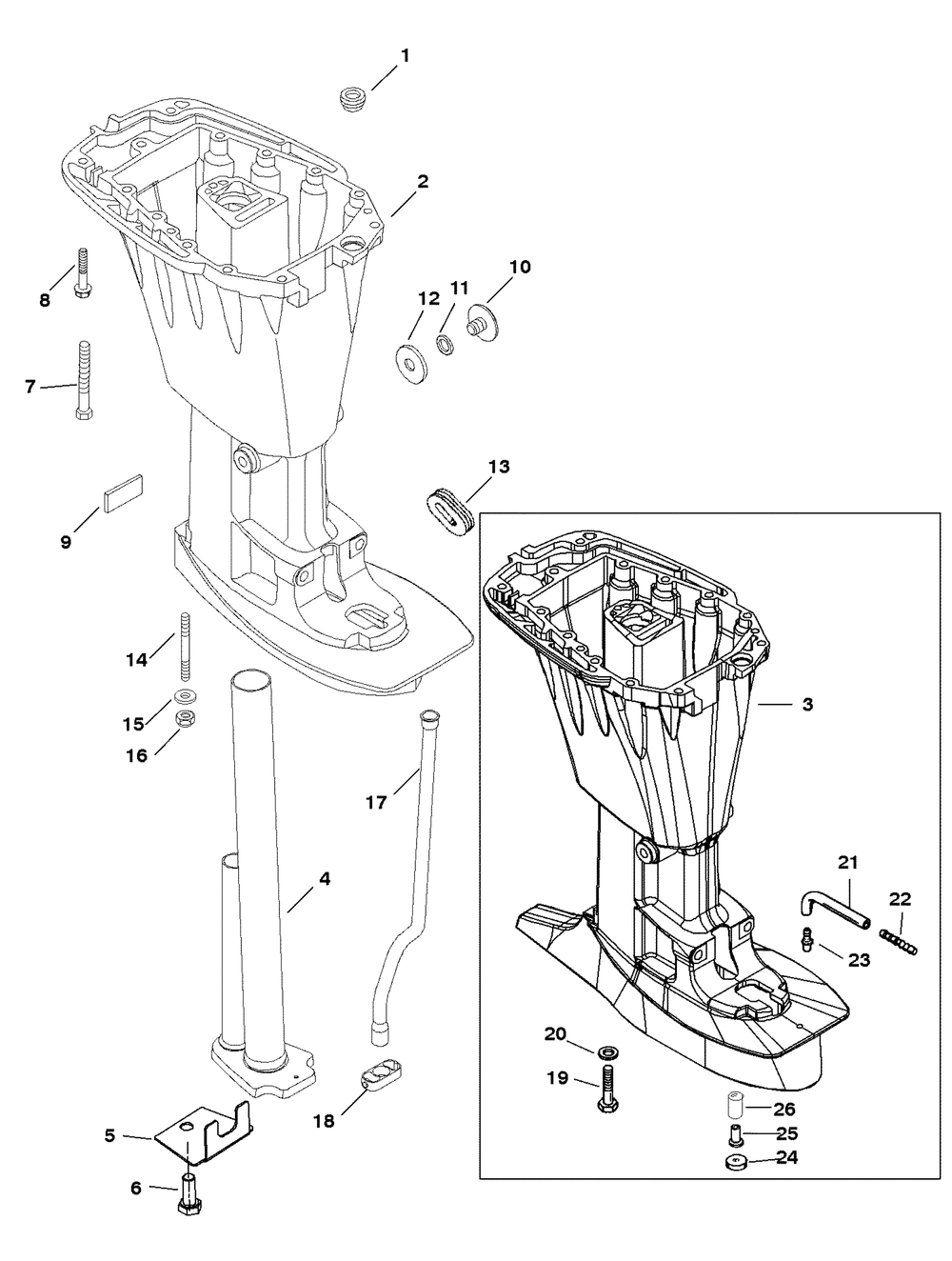

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| - | GASKET SET | 1 | |
| 1 | SEAL | 1 | |
| 2 | D SHAFT HSG-BLK (BLACK) NON-BIGFOOT | 1 | |
| 2 | ORD 3532-825218T5 (GRAY) NON-BIGFOOT | 1 | |
| 3 | D SHAFT HSG-BLK (BLACK) BIGFOOT | 1 | |
| 3 | D SHAFT HSG-GRAY (GRAY) BIGFOOT | 1 | |
| 5 | ORD 8M4503628 (BIGFOOT) | 1 | |
| 6 | SCREW (BIGFOOT) | 1 | |
| 7 | SCREW | 8 | |
| 8 | SCREW | 5 | |
| 9 | BUMPER | 1 | |
| 10 | PLUG-DRAIN | 1 | |
| 11 | GASKET | 1 | |
| 12 | SEAL | 2 | |
| 13 | GROMMET (LONG) | 1 | |
| 14 | STUD (LONG) | 1 | |
| 14 | STUD | 1 | |
| 15 | WASHER | 1 | |
| 16 | NUT @2 (2 per pack) | 1 | |
| 17 | TUBE/SEAL KIT (LONG) | 1 | |
| 18 | GUIDE | 1 | |
| 19 | SCREW THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT | 4 | |
| 20 | WASHER @5 (5 per pack) | 4 | |
| 21 | CONNECTOR ASSY (BIGFOOT) | 1 | |
| 22 | CONNECTOR | 1 | |
| 23 | FITTING PORT | 1 | |
| 24 | SPACER (LONG) | 1 | |
| 25 | COUPLING | 1 | |
| 26 | BUSHING (BIGFOOT) | 1 |
