| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

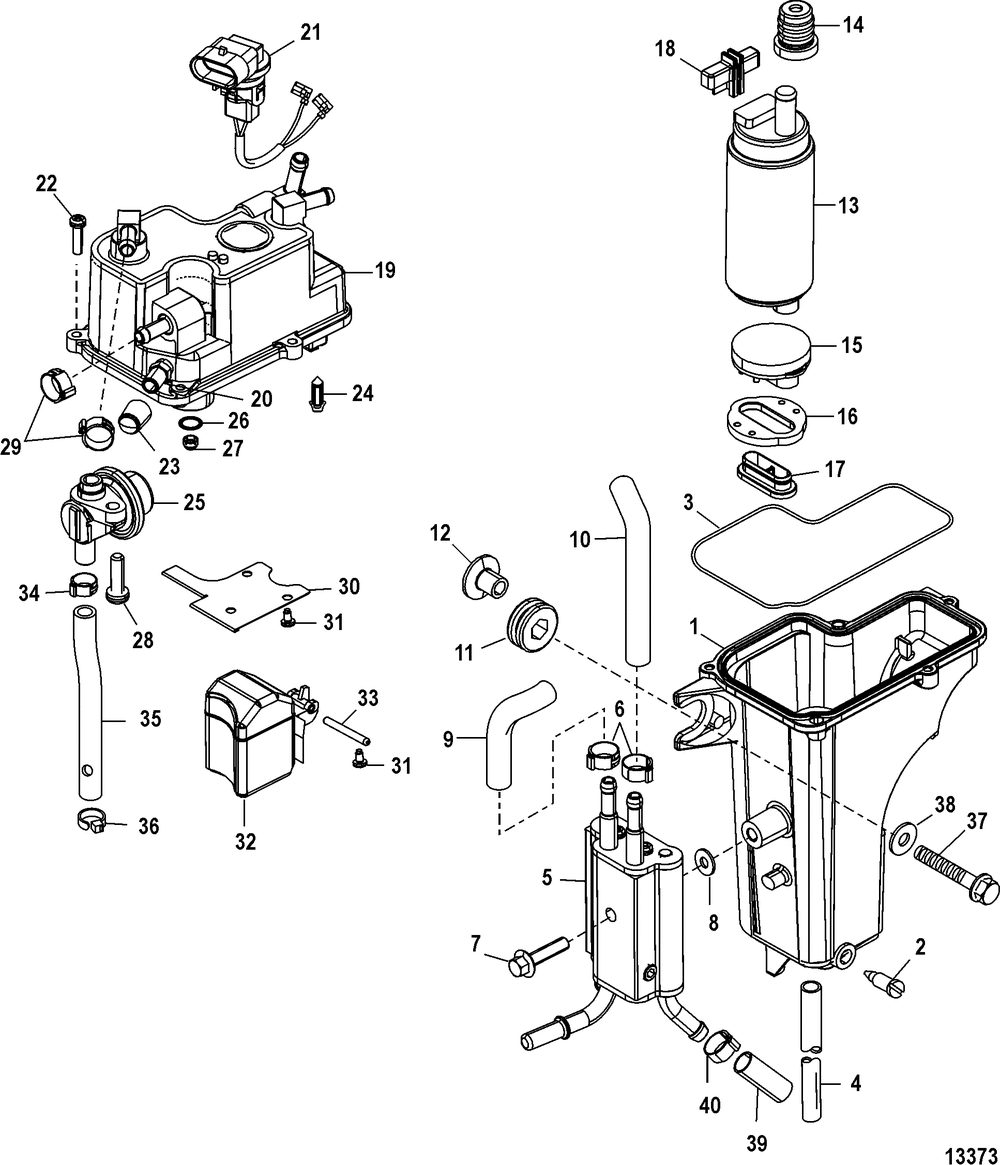

| - | VAPOR SEPARATE AS | 1 | |
| 1 | BODY ASSEMBLY | 1 | |
| 2 | SCREW-DRAIN | 1 | |
| 3 | O RING | 1 | |
| 4 | HOSE-40 INCH | 1 | |
| 5 | FUEL COOLER | 1 | |
| 6 | CLAMP | 2 | |
| 7 | SCREW | 1 | |
| 8 | WASHER | 1 | |
| 9 | HOSE | 1 | |
| 10 | HOSE | 1 | |
| 11 | GROMMET | 3 | |
| 12 | BUSHING | 3 | |
| 13 | FUEL PUMP KIT | 1 | |
| 14 | INSULATOR | 1 | |
| 15 | ISOLATOR | 1 | |
| 16 | INSULATOR | 1 | |
| 17 | FUEL STRAINER | 1 | |
| 18 | COVER | 1 | |
| 19 | COVER ASSY | 1 | |
| 20 | CONNECTOR | 1 | |
| 21 | SCREW | 5 | |
| 23 | CAP | 1 | |
| 24 | FLOAT VALVE KIT | 1 | |
| 25 | REGULATOR KIT | 1 | |
| 26 | O RING | 1 | |
| 27 | SCREEN | 1 | |
| 28 | SCREW | 1 | |
| 30 | PLATE | 1 | |
| 31 | SCREW | 5 | |
| 32 | FLOAT | 1 | |
| 33 | PIN-FLOAT | 1 | |
| 34 | CLIP | 1 | |
| 35 | TUBE | 1 | |
| 36 | TIE STRAP @5 (5 per pack) | 1 | |
| 38 | WASHER @5 (5 per pack) | 3 | |
| 39 | SLEEVE | 1 |
