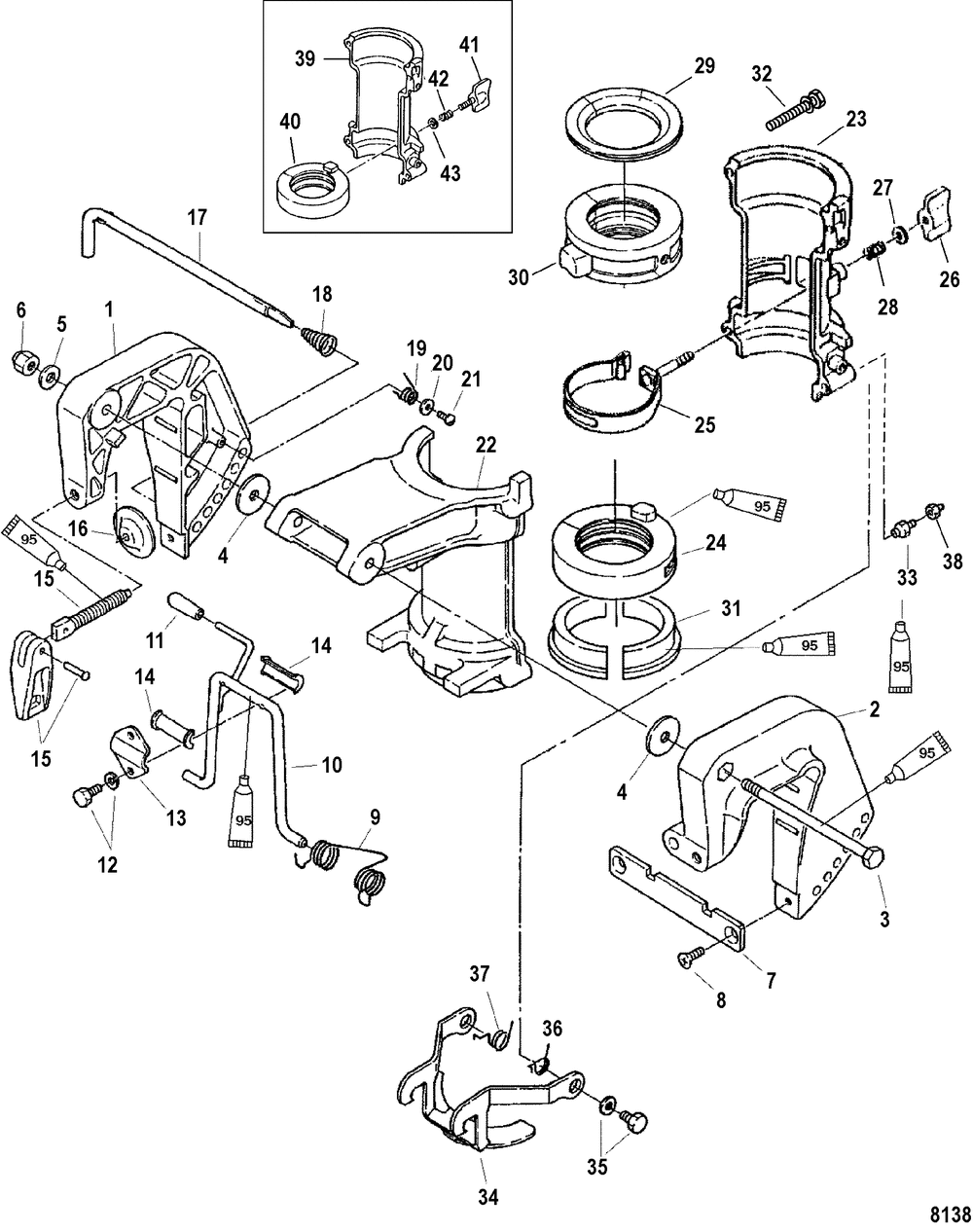

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BRKT-CLAMP-S-BLK (STARBOARD) | 1 | |
| 2 | BRKT-CLAMP-P-BLK (PORT) | 1 | |
| 3 | SCREW | 1 | |
| 4 | WASHER | 2 | |
| 5 | WASHER DESIGN I | 1 | |
| 6 | NUT | 1 | |
| 7 | DISTANCE PLATE | 1 | |
| 8 | SCREW | 2 | |
| 9 | SPRING | 1 | |
| 10 | STOP-TILT | 1 | |
| 11 | GRIP | 1 | |
| 12 | BOLT | 2 | |
| 13 | SET PLATE | 1 | |
| 14 | BUSHING | 2 | |
| 15 | ORD 8M0059063 (BLACK) | 2 | |
| 16 | WASHER | 2 | |
| 17 | THRUST ROD | 1 | |
| 18 | ORD 24-815093003 | 1 | |
| 19 | SPRING | 1 | |
| 20 | WASHER | 1 | |
| 21 | SCREW | 1 | |
| 22 | BRKT-SWIVEL-FRONT | 1 | |
| 23 | SWIVEL BRACKET-B SNtahos_ 0R023867 & Up | 1 | |
| 24 | BUSHING SNtahos_ 0R023867 & Up | 1 | |
| 25 | BAND-FRICTION SNtahos_ 0R023867 & Up | 1 | |
| 26 | NUT-WING SNtahos_ 0R023867 & Up | 1 | |
| 27 | WASHER | 1 | |
| 28 | SPRING SNtahos_ 0R023867 & Up | 1 | |
| 29 | THRUST PLATE | 1 | |
| 30 | BUSHING | 1 | |
| 31 | THRUST PLATE | 2 | |
| 32 | BOLT Handle | 4 | |
| 33 | FITTING | 2 | |
| 34 | ARM-REVERSE LOCK | 1 | |
| 35 | BOLT | 2 | |
| 36 | SPRING (LEFT) | 1 | |
| 37 | SPRING (RIGHT) | 1 | |
| 38 | CAP (Use where Applicable) | 2 | |
| 39 | BRKT-SWIVEL-BACK SNtahos_ 0R023866 & Below | 1 | |
| 40 | BUSHING SNtahos_ 0R023866 & Below | 1 | |
| 41 | SCREW (BLACK) | 1 | |
| 42 | SPRING | 1 | |
| 43 | WASHER | 1 |
