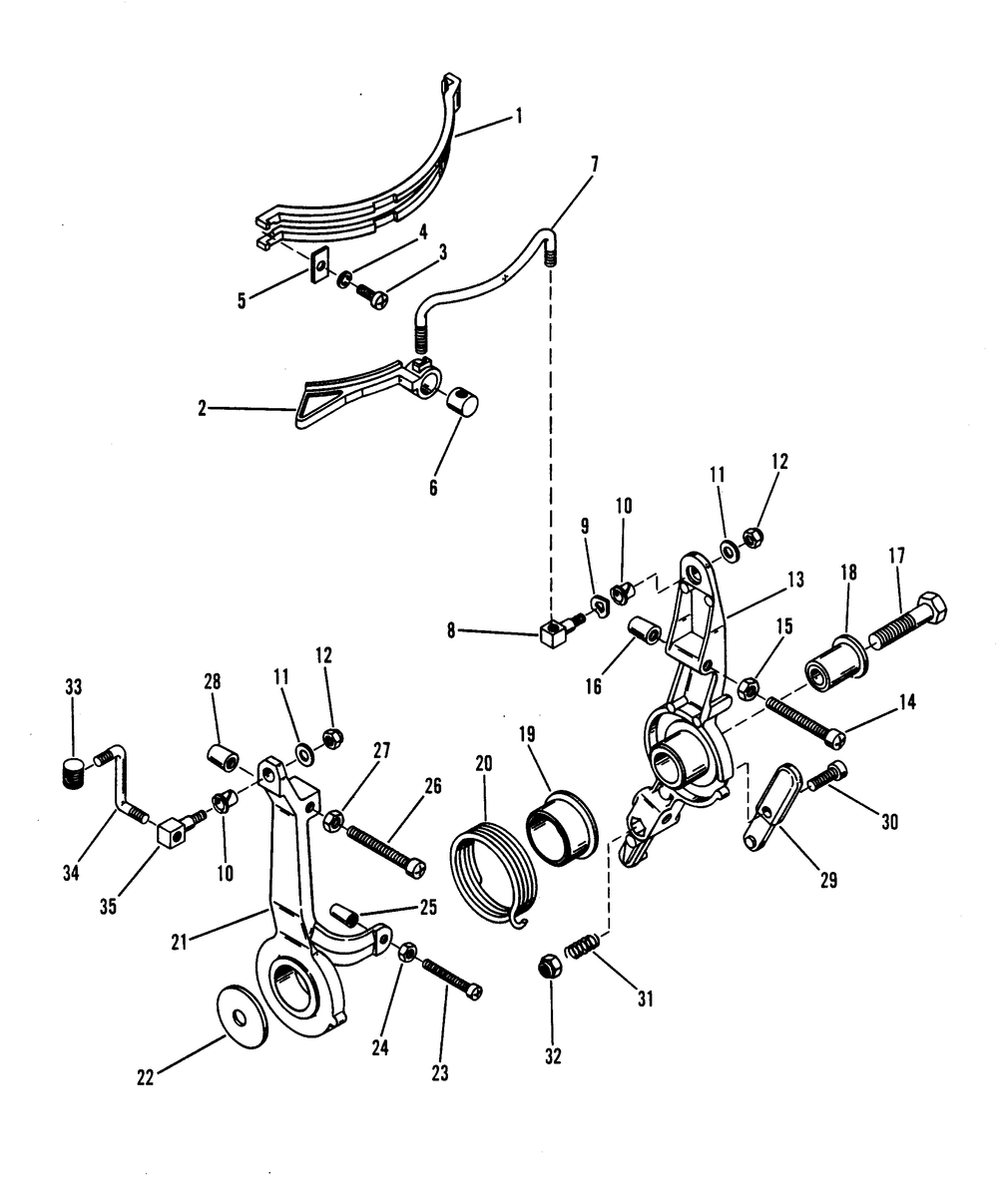

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOUSING | 1 | |
| 2 | CAM | 1 | |
| 3 | SCREW @5 (5 per pack) | 1 | |
| 4 | LOCKWASHER @15 (15 per pack) | 1 | |
| 5 | PLATE | 1 | |
| 6 | BARREL | 1 | |
| 7 | LINK | 1 | |
| 8 | SWIVEL ASSY | 1 | |
| 9 | WASHER-WAVE @5 SNtahos_ 1B446999 & Below (5 per pack) | 2 | |
| 10 | BUSHING | 2 | |
| 11 | WASHER | 2 | |
| 12 | NUT @5 (5 per pack) | 2 | |
| 13 | ARM ASSY | 1 | |
| 14 | SCREW | 2 | |
| 15 | NUT @5 (5 per pack) | 2 | |
| 16 | CAP | 2 | |
| 17 | SCREW (USE W/O NUT) | 1 | |
| 18 | BUSHING | 1 | |
| 19 | BUSHING | 1 | |
| 20 | SPRING | 1 | |
| 21 | ARM ASSY | 1 | |
| 22 | ORD 12- 46765 | 1 | |
| 23 | SCREW | 1 | |
| 24 | NUT @5 (5 per pack) | 1 | |
| 25 | CAP DESIGN I | 1 | |
| 26 | SCREW | 1 | |
| 29 | LATCH | 1 | |
| 30 | SCREW | 1 | |
| 31 | SPRING @5 (5 per pack) | 1 | |
| 32 | NUT @5 (5 per pack) | 1 | |
| 33 | PIVOT | 1 | |
| 34 | LINK | 1 |
