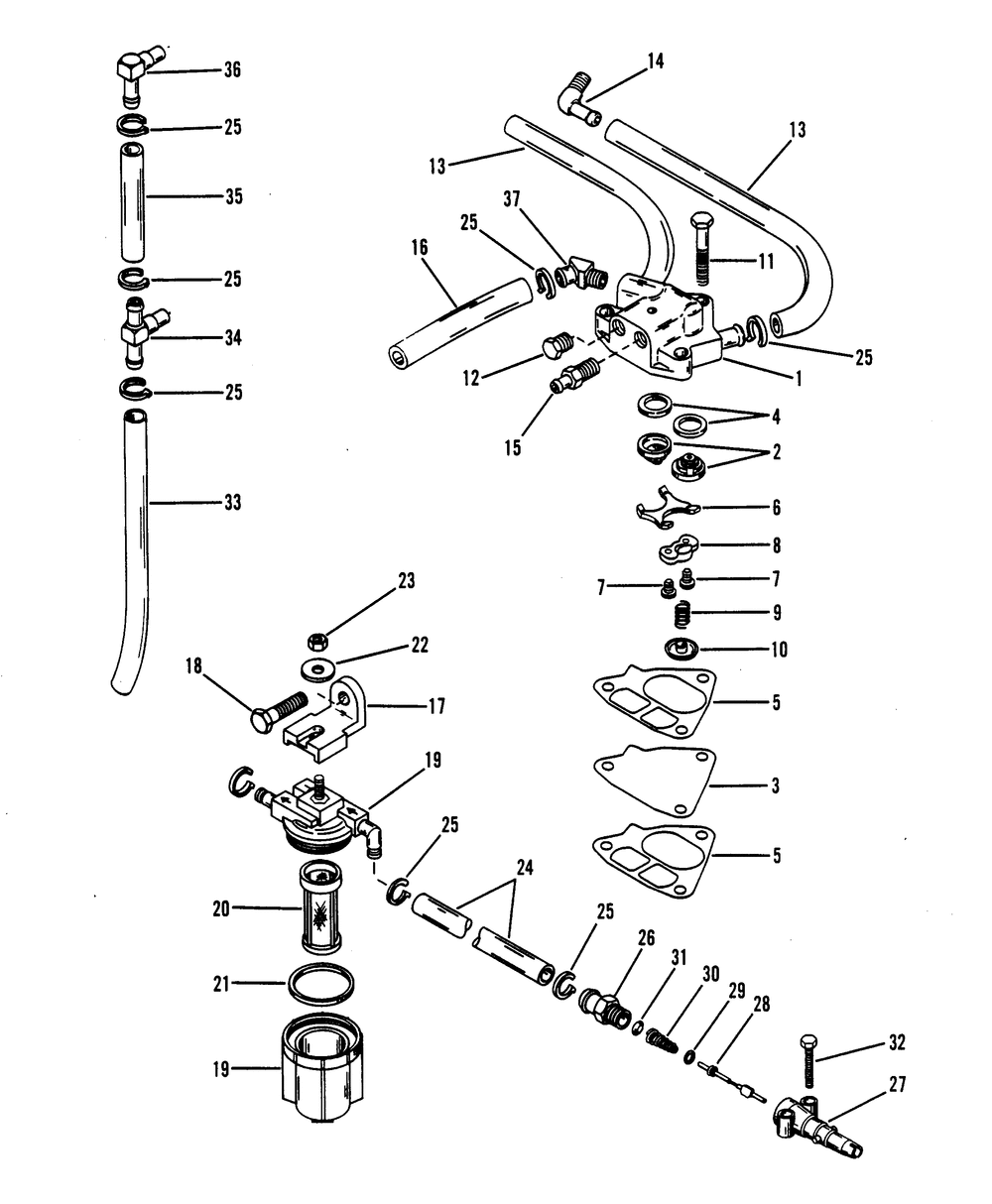

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL PUMP ASSY | 1 | |
| 2 | CHECK VALVE KIT | 1 | |
| 3 | DIAPHRAGM KT@5 (5 per pack) | 1 | |
| 6 | RETAINER | 1 | |
| 7 | SCREW | 2 | |
| 8 | RETAINER | 1 | |
| 9 | SPRING | 1 | |
| 10 | CAP | 1 | |
| 11 | SCREW | 3 | |
| 12 | PLUG-(BRASS)@2 (2 per pack) | 1 | |
| 13 | HOSE-48 INCH | 2 | |
| 14 | ELBOW | 1 | |
| 15 | FITTING | 1 | |
| 16 | HOSE-57 INCH | 1 | |
| 17 | BRACKET | 1 | |
| 18 | SCREW @5 (5 per pack) | 1 | |
| 19 | FILTER KIT-FUEL | 1 | |
| 20 | FILTER-FUEL @2 (2 per pack) | 1 | |
| 21 | SEAL-FILTER @10 (10 per pack) | 1 | |
| 22 | WASHER | 1 | |
| 23 | NUT | 1 | |
| 25 | CLAMP @5 (5 per pack) | 10 | |
| 26 | FITTING @2 (2 per pack) | 1 | |
| 27 | ADAPTOR | 1 | |
| 28 | STEM | 1 | |
| 29 | O RING @2 (2 per pack) | 1 | |
| 30 | SPRING | 1 | |
| 31 | WASHER-CUP @3 (3 per pack) | 1 | |
| 32 | SCREW | 2 | |
| 34 | FITTING | 1 | |
| 36 | FITTING | 1 | |
| 37 | FITTING | 1 |
