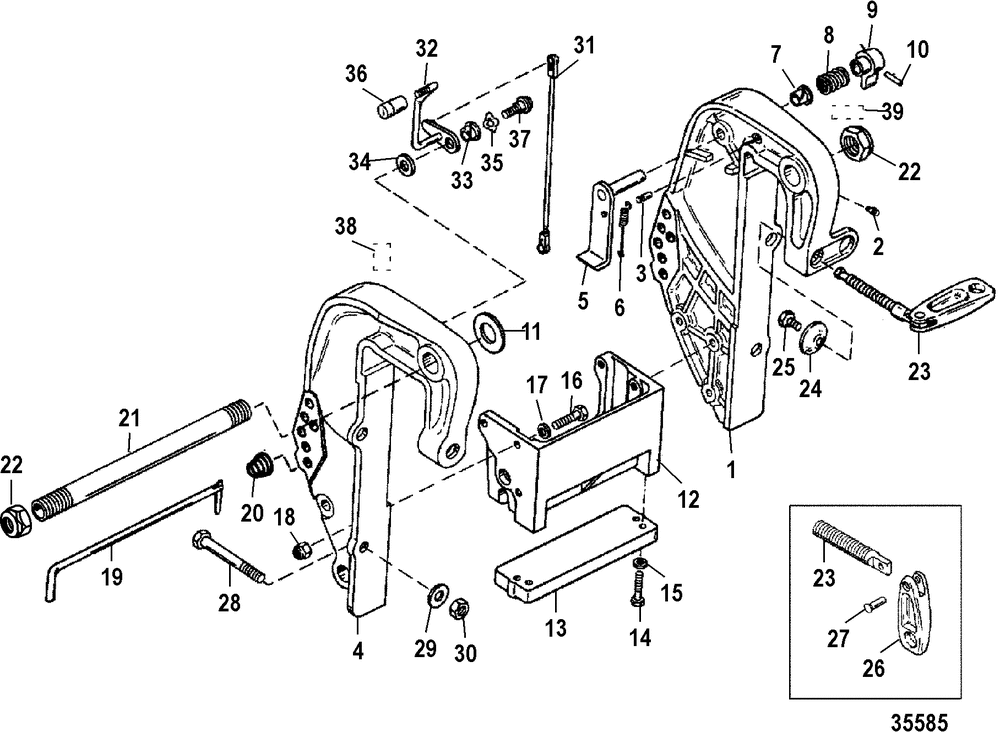

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BRACKET-CLAMP-BLK (PORT - MANUAL LONG BIGFOOT) | 1 | |
| 1 | BRACKET-CLAMP-GR (GRAY) MANUAL PORT | 1 | |
| 2 | FITTING | 1 | |
| 3 | PIN-GROOVE | 1 | |
| 4 | BRACKET-CLAMP-GR (GRAY) MANUAL STBD. | 1 | |
| 4 | BRACKET-CLAMP-BLK (PORT - MANUAL LONG BIGFOOT) | 1 | |
| 5 | ORD 19618A 2 (GRAY) | 1 | |
| 5 | TILT LOCK LEVER-P | 1 | |
| 6 | SPRING | 1 | |
| 7 | NYLINER | 1 | |
| 8 | SPRING | 1 | |
| 9 | ORD 812709 (GRAY) | 1 | |
| 9 | KNOB | 1 | |
| 10 | PIN-GROOVE | 1 | |
| 11 | WASHER | 2 | |
| 12 | ORD 18486A08 (GRAY) | 1 | |
| 12 | ORD 18486A08 | 1 | |
| 13 | ANODE KIT | 1 | |
| 14 | SCREW @5 (5 per pack) | 2 | |
| 15 | WASHER (10 per pack) | 2 | |
| 16 | SCREW @5 (5 per pack) | 5 | |
| 16 | SCREW @10 (10 per pack) | 1 | |
| 17 | LOCKWASHER | 4 | |
| 18 | NUT @5 (5 per pack) | 2 | |
| 19 | PIN ASY-TILT | 1 | |
| 20 | SPRING | 1 | |
| 21 | TILT TUBE EDP | 1 | |
| 22 | NUT @5 (5 per pack) | 2 | |
| 23 | SCREW ASSY-THUMB MANUAL | 2 | |
| 24 | WASHER MANUAL | 2 | |
| 25 | SCREW | 2 | |
| 28 | SCREW | 4 | |
| 29 | WASHER @5 (5 per pack) | 4 | |
| 31 | LINK (NON POWER TRIM) | 1 | |
| 32 | TILT LEVER ASSY (NON POWER TRIM) | 1 | |
| 33 | BUSHING | 1 | |
| 34 | WASHER | 1 | |
| 35 | WASHER-WAVE | 1 | |
| 36 | KNOB-TILT GAS ASSIST TRIM | 1 | |
| 37 | BOLT (NON POWER TRIM) | 1 |
