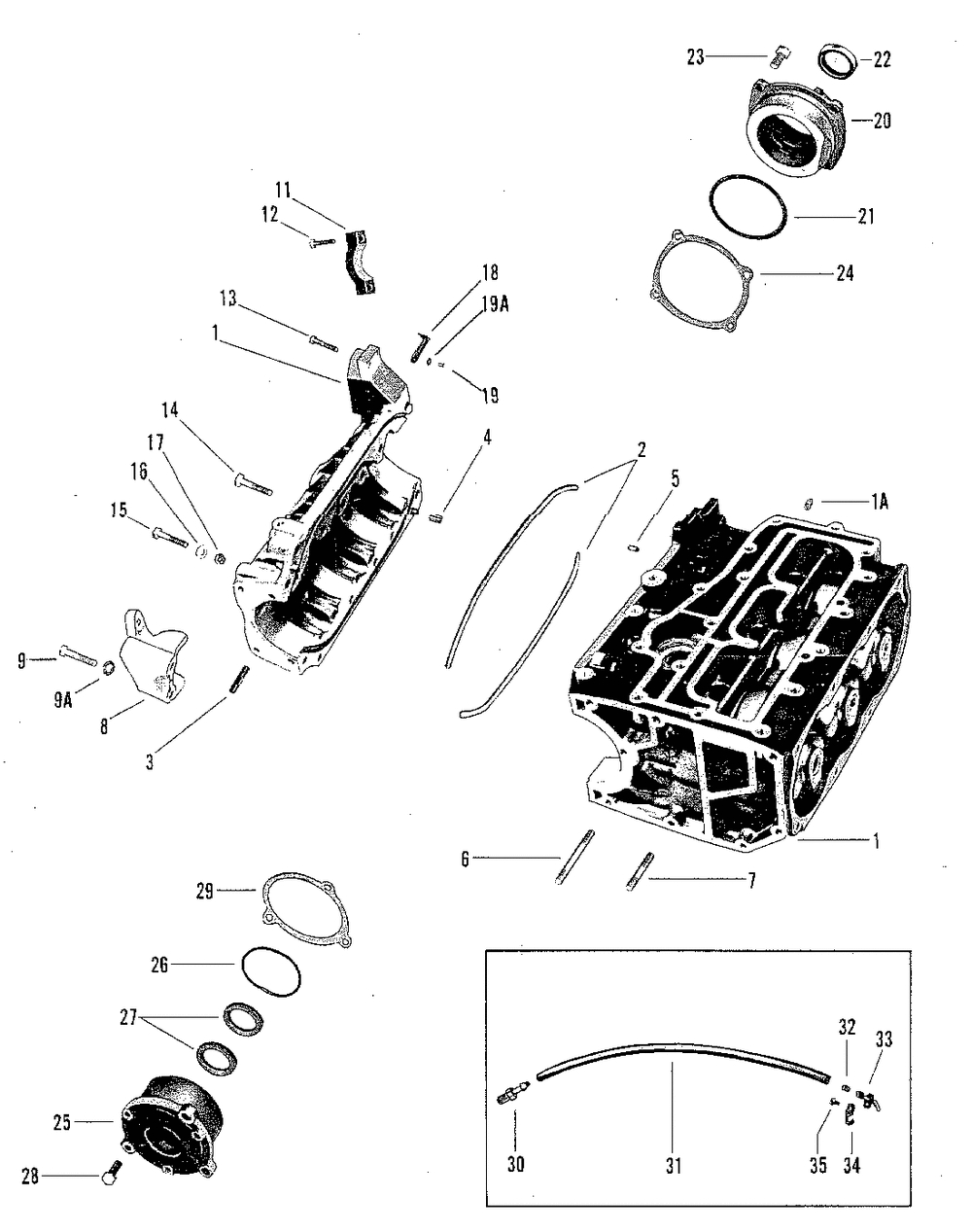

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CYLINDER BLOCK | 1 | |
| 1A | RESTRICTOR @5 (5 per pack) | 2 | |
| 2 | GASKET @4 (4 per pack) | 2 | |
| 3 | STUD | 2 | |
| 4 | PIN-DOWEL-SOLID | 2 | |
| 5 | PIN-DOWEL @3 (3 per pack) | 2 | |
| 6 | STUD | 2 | |
| 7 | STUD | 1 | |
| 7 | STUD | 1 | |
| 8 | COVER | 1 | |
| 9 | SCREW | 2 | |
| 9A | LOCKWASHER @5 (5 per pack) | 4 | |
| 11 | CAP ASSY | 1 | |
| 12 | SCREW | 1 | |
| 12 | SCREW | 1 | |
| 14 | SCREW @2 (2 per pack) | 2 | |
| 15 | SCREW @5 (5 per pack) | 2 | |
| 16 | WASHER @5 (5 per pack) | 14 | |
| 17 | NUT @5 (5 per pack) | 2 | |
| 18 | TIMING POINTER | 1 | |
| 19A | WASHER | 1 | |
| 20 | END CAP ASSY | 1 | |
| 21 | O RING | 1 | |
| 22 | SEAL @2 (2 per pack) | 1 | |
| 23 | SCREW | 4 | |
| 24 | SHIM SET | 0 | |
| 25 | END CAP | 1 | |
| 26 | O RING @5 (DESIGN I/II END CAP) S/N USA-0D279349 & BELOW / BEL-9793444 & BELOW (5 per pack) | 1 | |
| 28 | SCREW W/LW @5 (5 per pack) | 3 | |
| 29 | SHIM SET | 0 | |
| 30 | FITTING | 1 | |
| 31 | HOSE-48 INCH | 1 | |
| 32 | BUSHING | 1 | |
| 33 | NOZZLE | 1 | |
| 34 | CLAMP | 1 | |
| 35 | SCREW @5 (5 per pack) | 1 |
