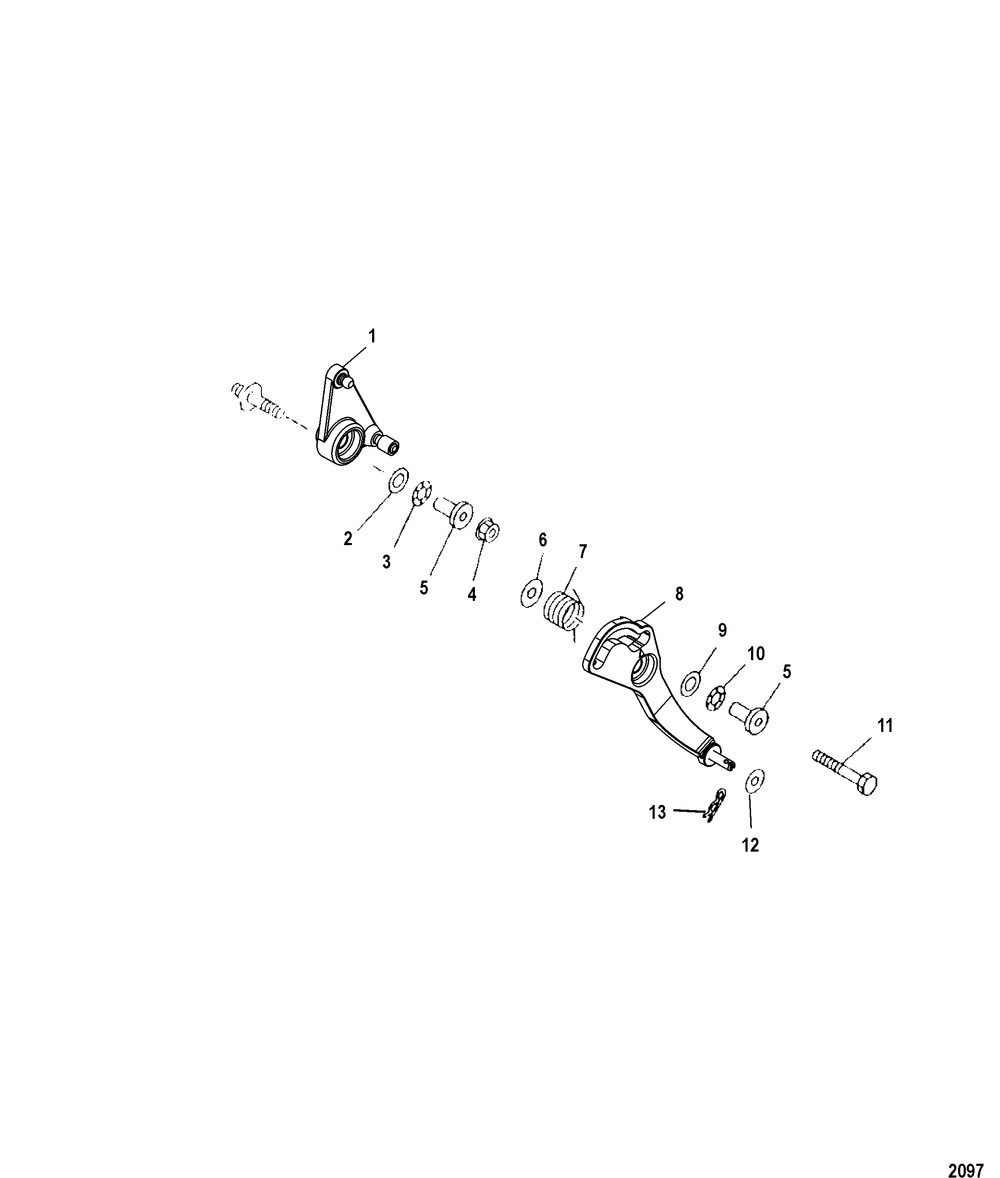

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | THROTTLE LEVER | 1 | |
| 2 | WASHER | 1 | |
| 3 | WASHER-WAVE @2 (2 per pack) | 1 | |
| 4 | NUT | 1 | |
| 5 | COLLAR | 2 | |
| 6 | WASHER | 1 | |
| 7 | SPRING | 1 | |
| 8 | THROTTLE LEVER | 1 | |
| 11 | BOLT | 1 | |
| 12 | WASHER | 1 | |
| 13 | PIN-COTTER @2 (2 per pack) | 1 |
