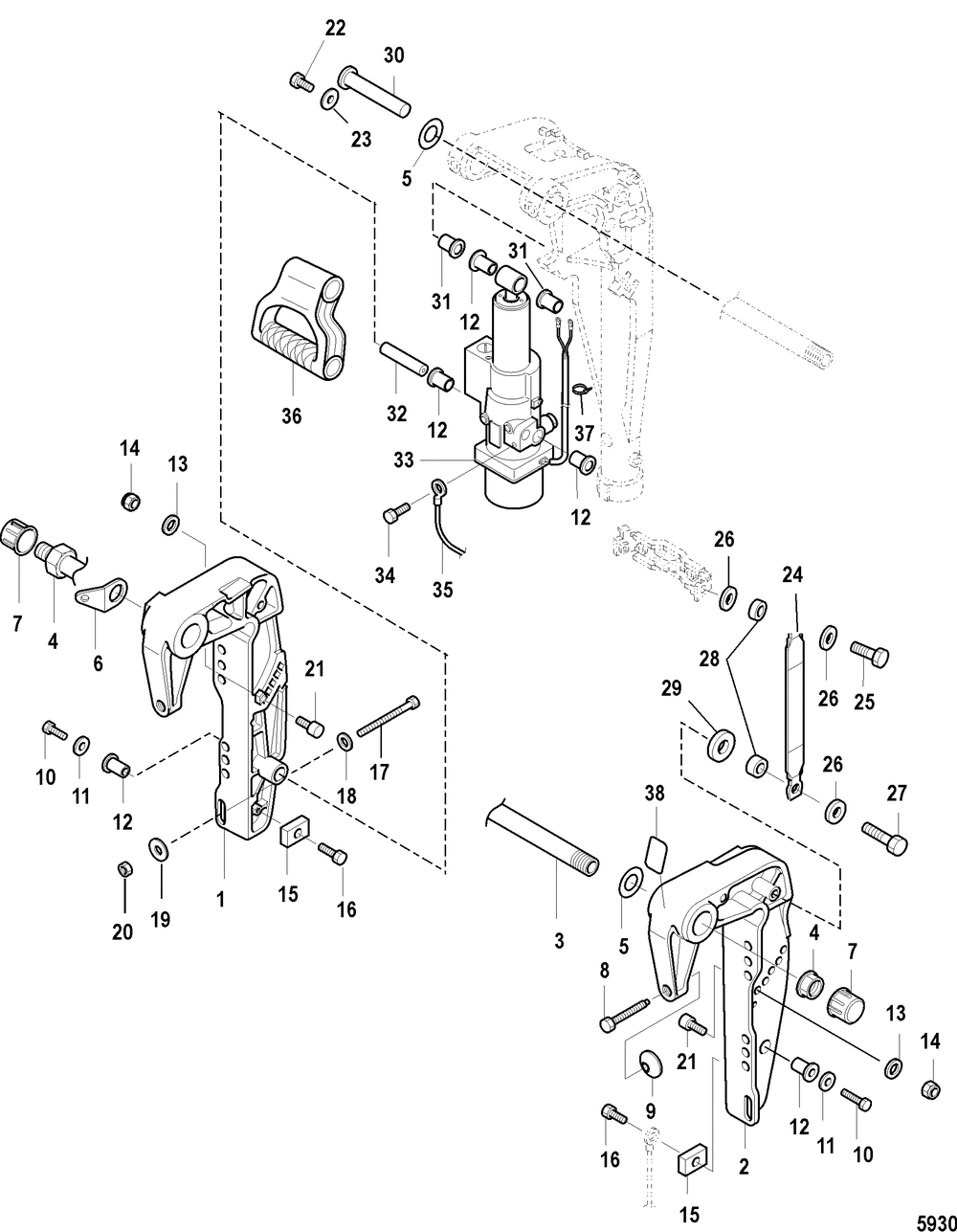

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| - | KICKER STRAP KIT Bigfoot | 1 | |
| 1 | CLAMP BRACKET SNtahos_ 0R068398 & Up | 1 | |
| 1 | CLAMP BRACKET SNtahos_ 0R068397 & Below | 1 | |
| 2 | CLAMP BRACKET | 1 | |
| 3 | TILT TUBE | 1 | |
| 4 | NUT | 2 | |
| 5 | WASHER @2 (2 per pack) | 2 | |
| 6 | PLATE | 1 | |
| 7 | CAP NUT | 2 | |
| 8 | ORD 10-8M0060119 | 2 | |
| 9 | WASHER | 1 | |
| 10 | BOLT | 2 | |
| 11 | WASHER | 2 | |
| 12 | BUSHING | 5 | |
| 13 | WASHER | 2 | |
| 14 | NUT | 2 | |
| 15 | ANODE (SQUARE) | 2 | |
| 16 | SCREW | 2 | |
| 17 | SCREW | 2 | |
| 18 | WASHER | 2 | |
| 19 | WASHER | 2 | |
| 20 | NUT Short | 2 | |
| 21 | PIN-TRIM LOCK | 2 | |
| 22 | BOLT | 1 | |
| 23 | WASHER @2 (2 per pack) | 1 | |
| 24 | STRAP ASSY SNtahos_ 0R05813 & Below | 2 | |
| 25 | BOLT | 2 | |
| 26 | WASHER | 6 | |
| 27 | SCREW @5 (5 per pack) | 2 | |
| 28 | COLLAR | 4 | |
| 30 | PIN-CYLINDER | 1 | |
| 31 | BUSHING | 2 | |
| 32 | PIN | 1 | |
| 33 | POWER TILT ASSY | 1 | |
| 34 | BOLT | 3 | |
| 35 | WIRE-GROUND | 1 | |
| 36 | HANDLE-CARRYING | 1 | |
| 37 | TIE STRAP @5 (5 per pack) | 2 | |
| 37 | TIE STRAP @5 SNtahos_ 0R054605 & Up (5 per pack) | 2 | |
| 38 | DECAL CO-PILOT Handle | 1 |
