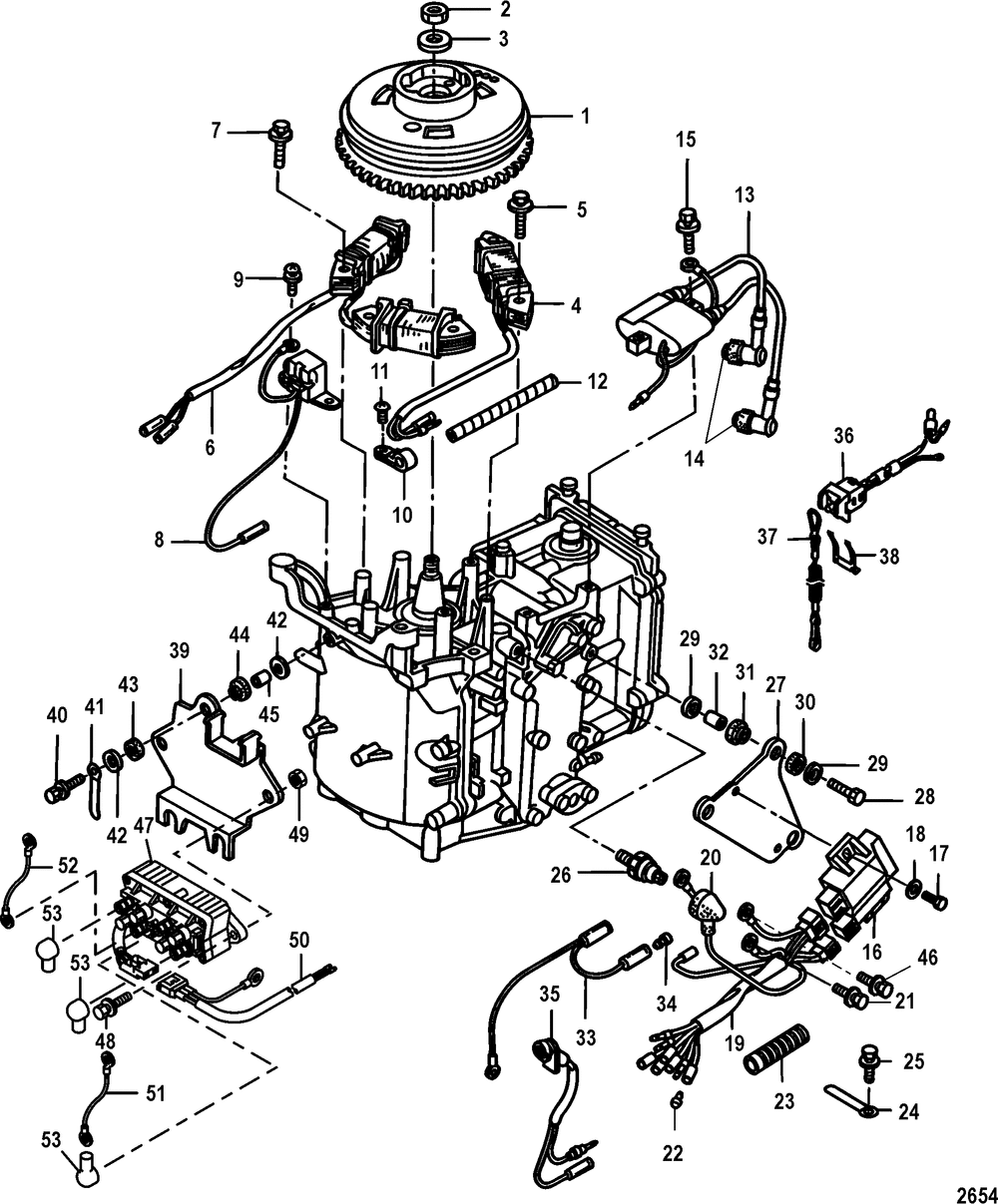

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FLYWHEEL | 1 | |
| 1 | FLYWHEEL-MANUAL Manual | 1 | |
| 2 | NUT | 1 | |
| 3 | WASHER | 1 | |
| 4 | COIL IGN. CHARGE | 1 | |
| 5 | BOLT | 2 | |
| 6 | COIL-ALTERNATOR | 1 | |
| 7 | SCREW Handle | 4 | |
| 8 | SENSOR-CRANK POSI | 1 | |
| 9 | SCREW | 2 | |
| 10 | CLAMP | 1 | |
| 11 | BOLT | 1 | |
| 12 | SLEEVE Electric Remote Control | 1 | |
| 13 | IGNITION COIL | 1 | |
| 14 | BOOT | 2 | |
| 15 | BOLT | 2 | |
| 16 | ORD 8M0104467 | 1 | |
| 17 | BOLT | 2 | |
| 18 | WASHER | 2 | |
| 19 | HARNESS | 1 | |
| 20 | GROMMET | 1 | |
| 22 | PLUG | 2 | |
| 23 | SLEEVE Manual Handle | 1 | |
| 24 | CLAMP | 1 | |
| 25 | BOLT | 1 | |
| 26 | SWITCH | 1 | |
| 27 | BRACKET | 1 | |
| 28 | SCREW @5 (5 per pack) | 3 | |
| 30 | WASHER | 3 | |
| 31 | GROMMET @3 (3 per pack) | 3 | |
| 32 | COLLAR | 3 | |
| 33 | CABLE | 1 | |
| 35 | PILOT LAMP | 1 | |
| 35 | PILOT LAMP Bigfoot | 1 | |
| 36 | SWITCH-STOP | 1 | |
| 37 | ORDER 8M0092850 | 1 | |
| 38 | RETAINER | 1 | |
| 39 | BRACKET | 1 | |
| 40 | BOLT | 3 | |
| 47 | SWITCH Power Tilt | 1 | |
| 48 | BOLT | 2 | |
| 49 | NUT | 2 | |
| 50 | WIRE-LEAD Power Tilt | 1 | |
| 51 | CABLE | 1 | |
| 52 | CABLE | 1 | |
| 53 | BOOT | 3 |
