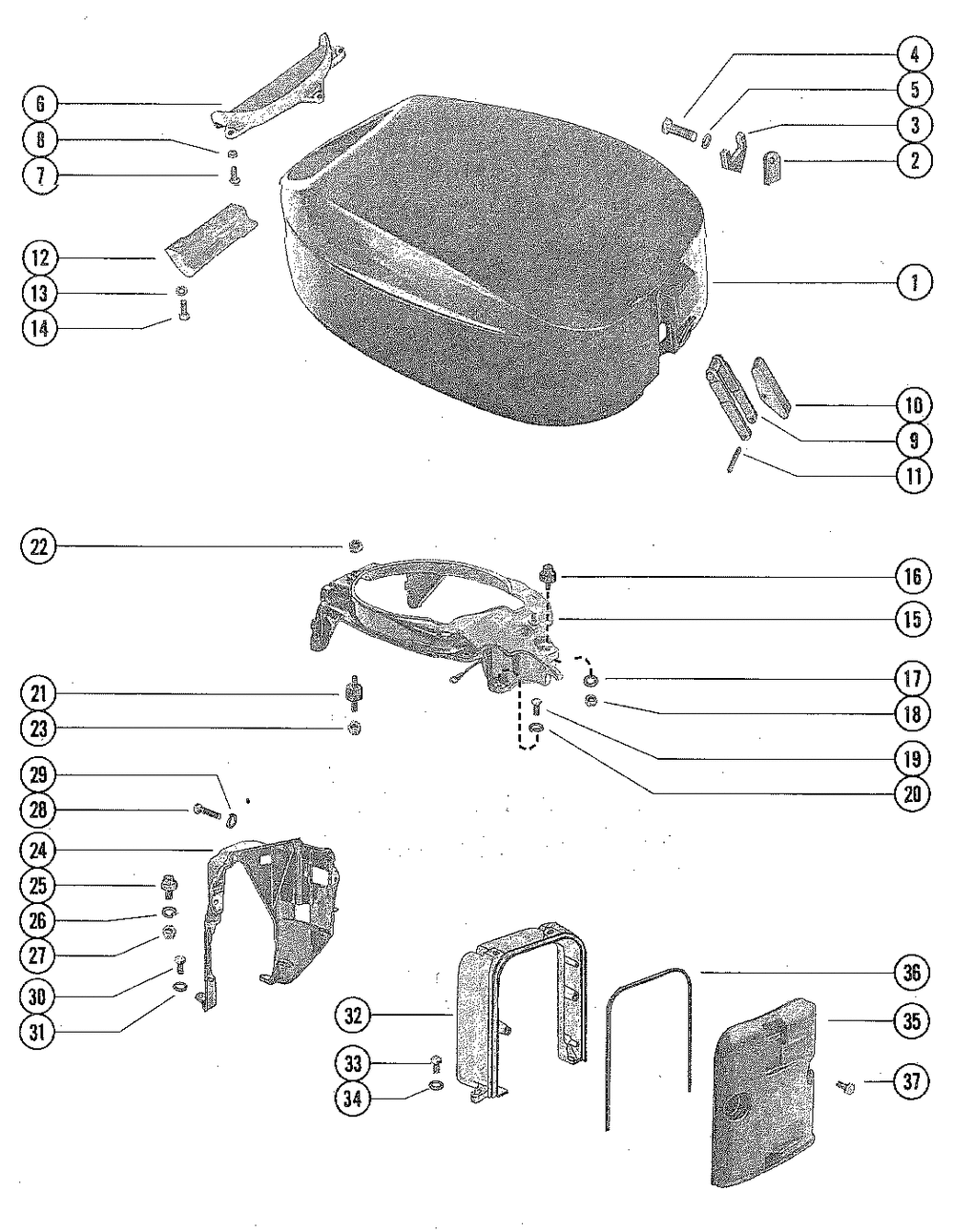

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | TOP COWL | 1 | |
| 2 | RETAINER | 1 | |
| 3 | PAD | 1 | |
| 4 | SCREW @5 (5 per pack) | 1 | |
| 5 | LOCKWASHER @5 (5 per pack) | 1 | |
| 6 | SHIELD | 1 | |
| 7 | SCREW @5 (5 per pack) | 3 | |
| 8 | LOCKWASHER @5 (5 per pack) | 3 | |
| 9 | HINGE | 1 | |
| 10 | LEVER | 1 | |
| 11 | PIN-ROLL | 1 | |
| 12 | HOOK | 1 | |
| 13 | LOCKWASHER @5 (5 per pack) | 2 | |
| 14 | SCREW @5 (5 per pack) | 2 | |
| 15 | FRAME | 1 | |
| 16 | MOUNT | 1 | |
| 17 | LOCKWASHER @5 (5 per pack) | 1 | |
| 18 | NUT @5 (5 per pack) | 1 | |
| 19 | SCREW @5 (5 per pack) | 2 | |
| 21 | MOUNT | 3 | |
| 22 | NUT @5 (5 per pack) | 3 | |
| 23 | NUT @5 (5 per pack) | 3 | |
| 24 | BRACKET | 1 | |
| 25 | MOUNT | 2 | |
| 27 | NUT @5 (5 per pack) | 2 | |
| 32 | FRAME | 1 | |
| 35 | COVER ASSY | 1 | |
| 36 | GASKET SET | 1 | |
| 37 | SCREW @5 (5 per pack) | 2 |
