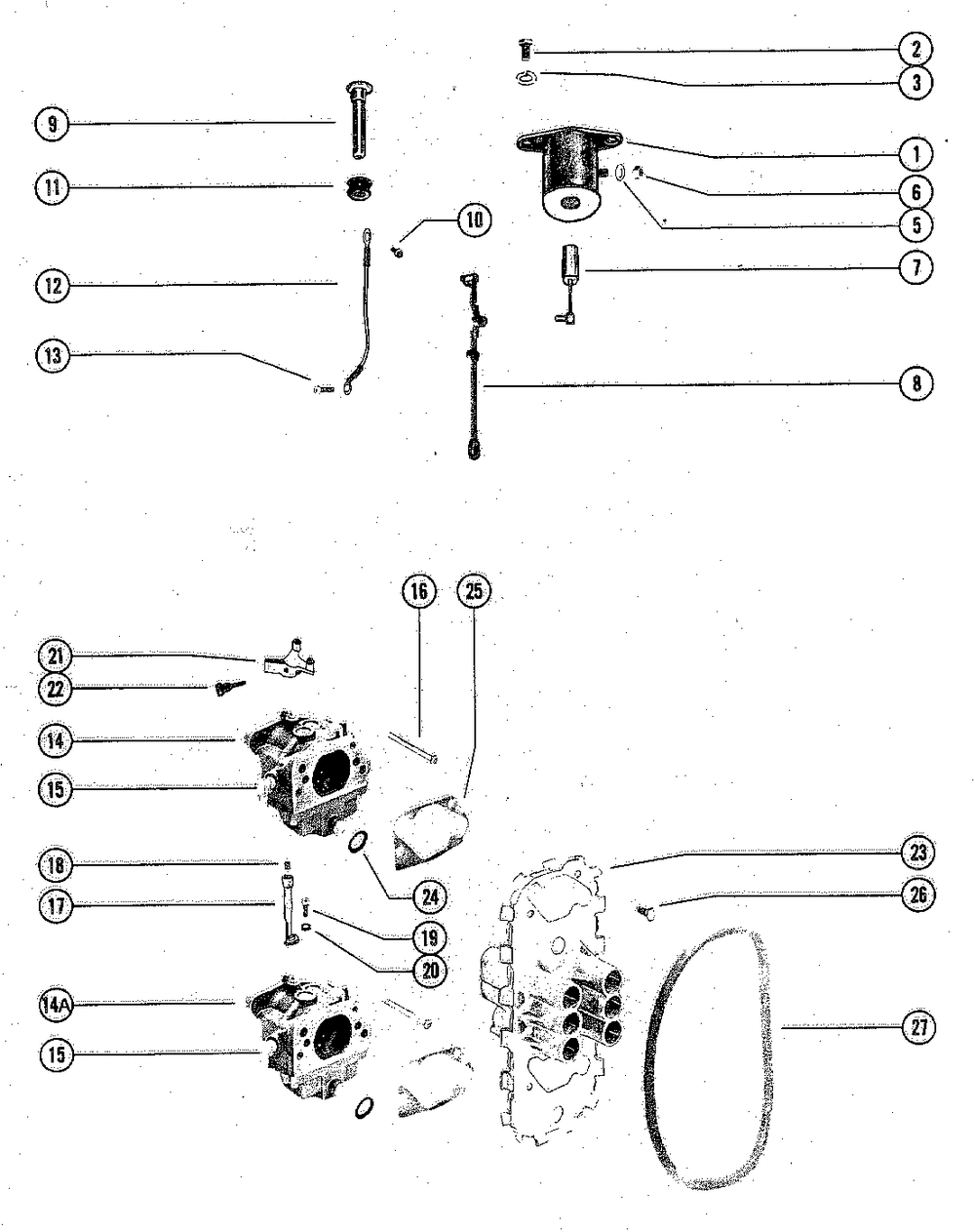

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SOLENOID ASSY | 1 | |
| 2 | SCREW | 2 | |
| 3 | LOCKWASHER @5 (5 per pack) | 2 | |
| 5 | LOCKWASHER @15 (15 per pack) | 1 | |
| 6 | NUT @5 (5 per pack) | 1 | |
| 7 | PLUNGER ASSY | 1 | |
| 8 | ROD | 1 | |
| 9 | CHOKE KNOB ASSY | 1 | |
| 10 | SCREW | 1 | |
| 11 | GROMMET @5 (5 per pack) | 1 | |
| 12 | WIRE | 1 | |
| 13 | SCREW @4 (4 per pack) | 1 | |
| 14 | CARBURETOR TOP | 1 | |
| 14 | CARBURETOR TOP | 1 | |
| 14A | CARBURETORBOTTOM | 1 | |
| 14A | CARBURETORBOTTOM | 1 | |
| 15 | FITTING | 2 | |
| 16 | SCREW | 4 | |
| 17 | COUPLING ASSY | 1 | |
| 18 | KEY | 1 | |
| 19 | SCREW @2 (2 per pack) | 1 | |
| 20 | WASHER | 1 | |
| 21 | ACTUATOR | 1 | |
| 22 | SCREW @2 (2 per pack) | 1 | |
| 23 | PLATE | 1 | |
| 24 | GASKET @2 (2 per pack) | 2 | |
| 25 | GASKET @2 (2 per pack) | 2 | |
| 26 | SCREW @5 (5 per pack) | 4 | |
| 27 | SEAL | 1 |
