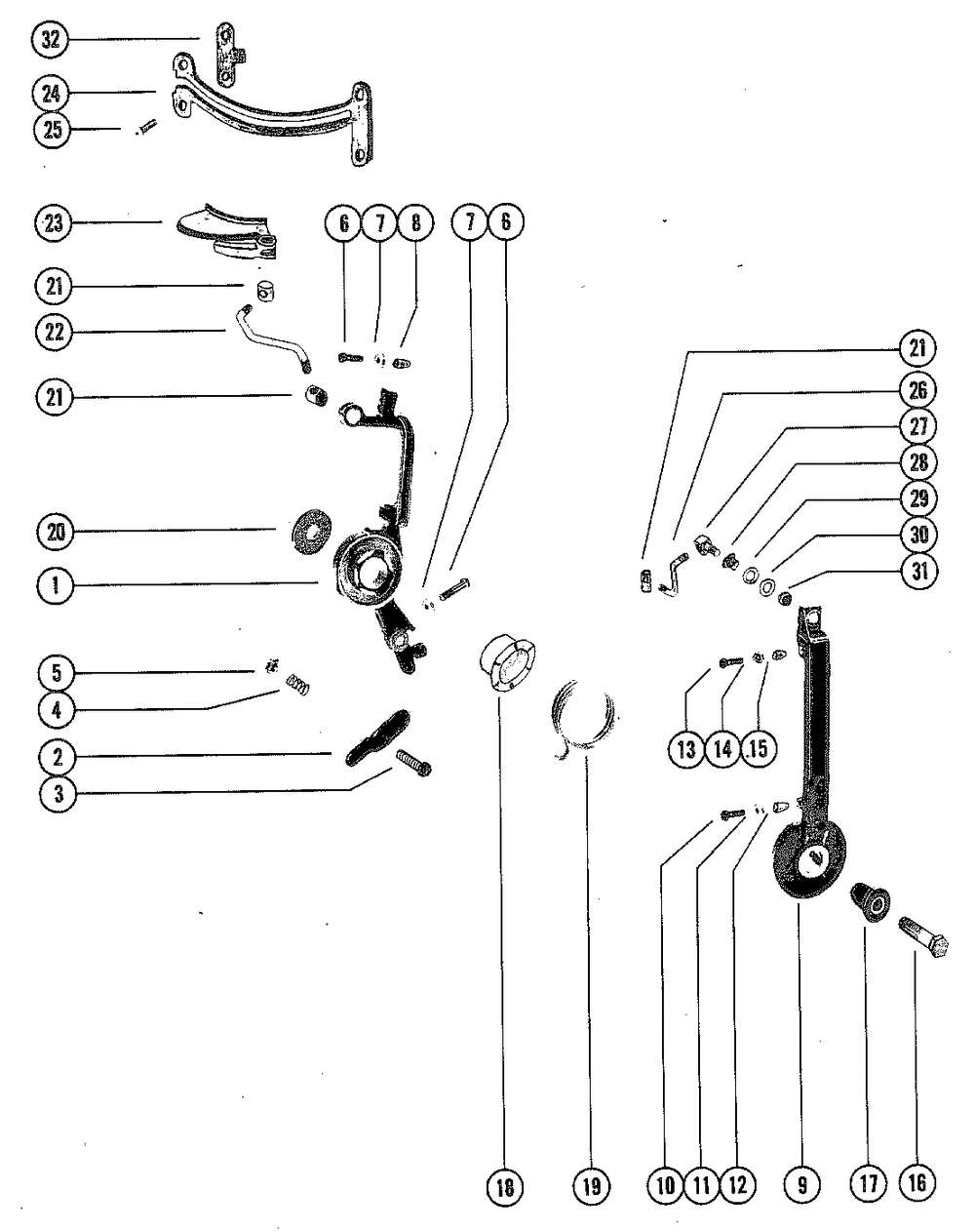

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | THROTTLE LEVER | 1 | |
| 2 | LATCH | 1 | |
| 3 | SCREW | 1 | |
| 4 | SPRING @5 (5 per pack) | 1 | |
| 5 | NUT @5 (5 per pack) | 1 | |
| 6 | SCREW | 2 | |
| 7 | NUT @5 (5 per pack) | 2 | |
| 8 | CAP | 1 | |
| 9 | ARM | 1 | |
| 10 | SCREW | 1 | |
| 11 | NUT @5 (5 per pack) | 1 | |
| 12 | CAP DESIGN I | 1 | |
| 13 | SCREW | 1 | |
| 16 | SCREW (USE W/O NUT) | 1 | |
| 17 | BUSHING | 1 | |
| 18 | BUSHING | 1 | |
| 19 | SPRING | 1 | |
| 20 | WASHER @5 (5 per pack) | 1 | |
| 21 | BARREL | 3 | |
| 22 | ROD | 1 | |
| 23 | CAM | 1 | |
| 24 | HOUSING | 1 | |
| 25 | SCREW | 4 | |
| 26 | ROD-LINK | 1 | |
| 27 | SWIVEL ASSY | 1 | |
| 28 | BUSHING | 1 | |
| 29 | WASHER-WAVE @5 SNtahos_ 1B446999 & Below (5 per pack) | 1 | |
| 30 | WASHER | 1 | |
| 31 | NUT @5 (5 per pack) | 1 | |
| 32 | SPACER | 1 |
