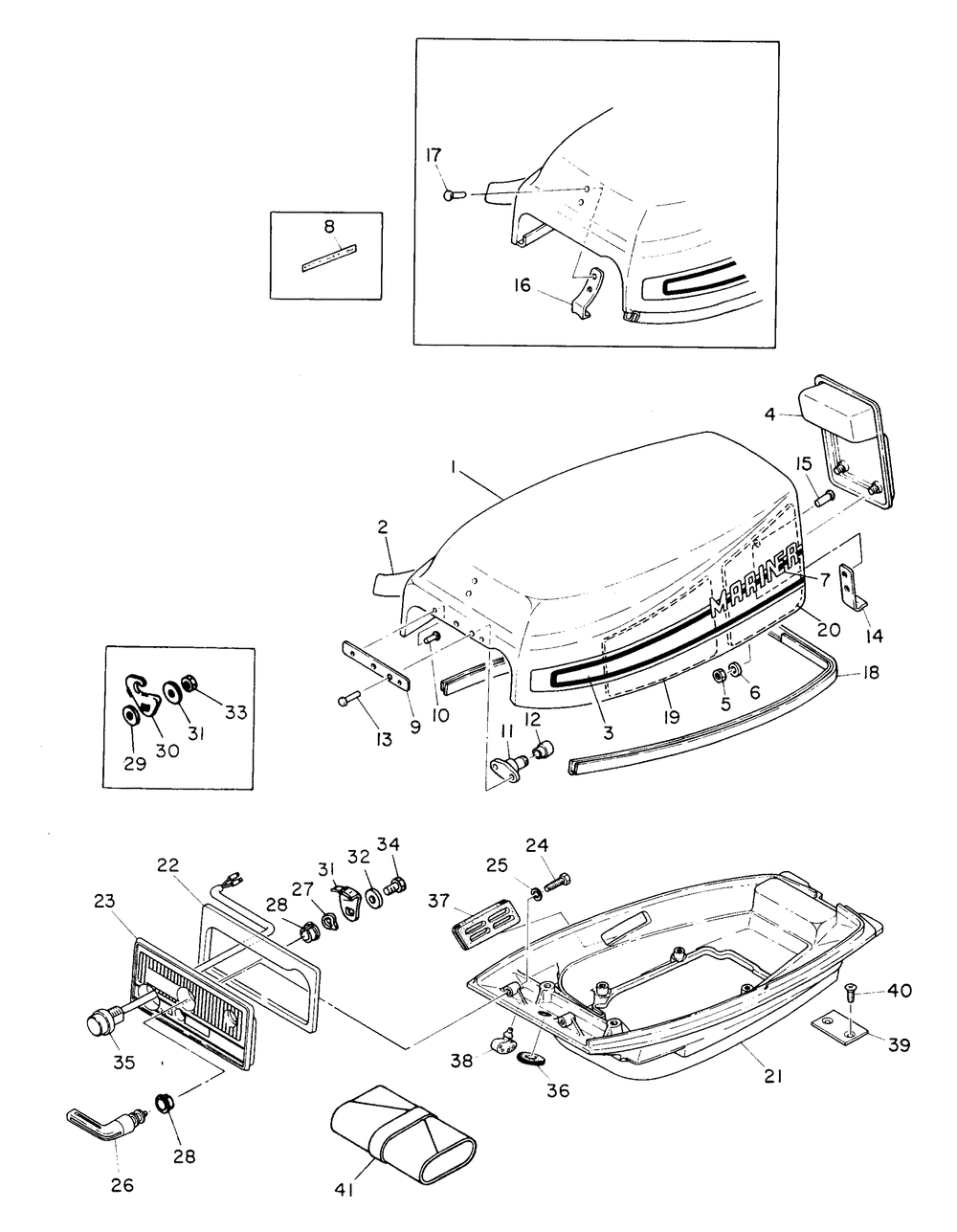

Mariner 8A 682-000551 THRU 007650 (M) 8A 682-000551 THRU 007650 (M) COWLING
COWLING
№ Наименование Примечание Кол-во
1 TOP COWL SERIAL 00000000-00026575 1
1 TOP COWL SERIAL 00026576-09999999 1
2 DECAL SET SERIAL 00000000-00026575 1
2 DECAL SET SERIAL 00026576-09999999 1
3 DECAL SET SERIAL 00000000-00026575 1
3 DECAL SET SERIAL 00026576-09999999 1
4 EMBLEM SERIAL 00026575-09999999 1
5 NUT @2 SERIAL 00000000-00008215 (2 per pack) 4
6 WASHER @5 (5 per pack) 4
7 DECAL SERIAL 00002675-09999999 2
8 DECAL 1
9 PLATE SERIAL 00000000-00020160 1
10 RIVET @5 SERIAL 00000000-00020160 (5 per pack) 2
11 HOLDER SERIAL 00000000-00020160 1
12 BUSHING 1
13 RIVET SERIAL 00000000-00020160 2
14 HOOK 1
15 RIVET 2
16 HOOK SERIAL 00020161-09999999 2
18 SEAL 1
19 SOUND BLANKET 2
20 SOUND BLANKET 2
21 BOTTOM COWL SERIAL 00000000-00020160 1
21 BOTTOM COWL SERIAL 00020161-09999999 1
22 GASKET 1
23 COVER 1
24 SCREW @2 (2 per pack) 2
25 WASHER @5 SERIAL 00008216-09999999 (5 per pack) 2
26 LEVER SERIAL 00000000-00020160 1
26 LEVER SERIAL 00020161-09999999 1
27 WASHER-WAVE @2 (2 per pack) 1
28 BUSHING 2
29 WASHER @5 SERIAL 00000000-00020160 (5 per pack) 1
30 CLAMP SERIAL 00000000-00020160 1
31 LEVER SERIAL 00020161-09999999 1
32 WASHER @5 (5 per pack) 1
33 NUT @2 (2 per pack) 1
34 BOLT SERIAL 00020161-09999999 1
35 SWITCH 1
36 GROMMET 1
37 GROMMET 1
38 HOLDER 1
39 COVER SERIAL 00000000-00020160 1
40 SCREW @2 SNtahos_ S-675-000780/L-675-302050 & Below (2 per pack) 1
41 TOOL KIT 1
