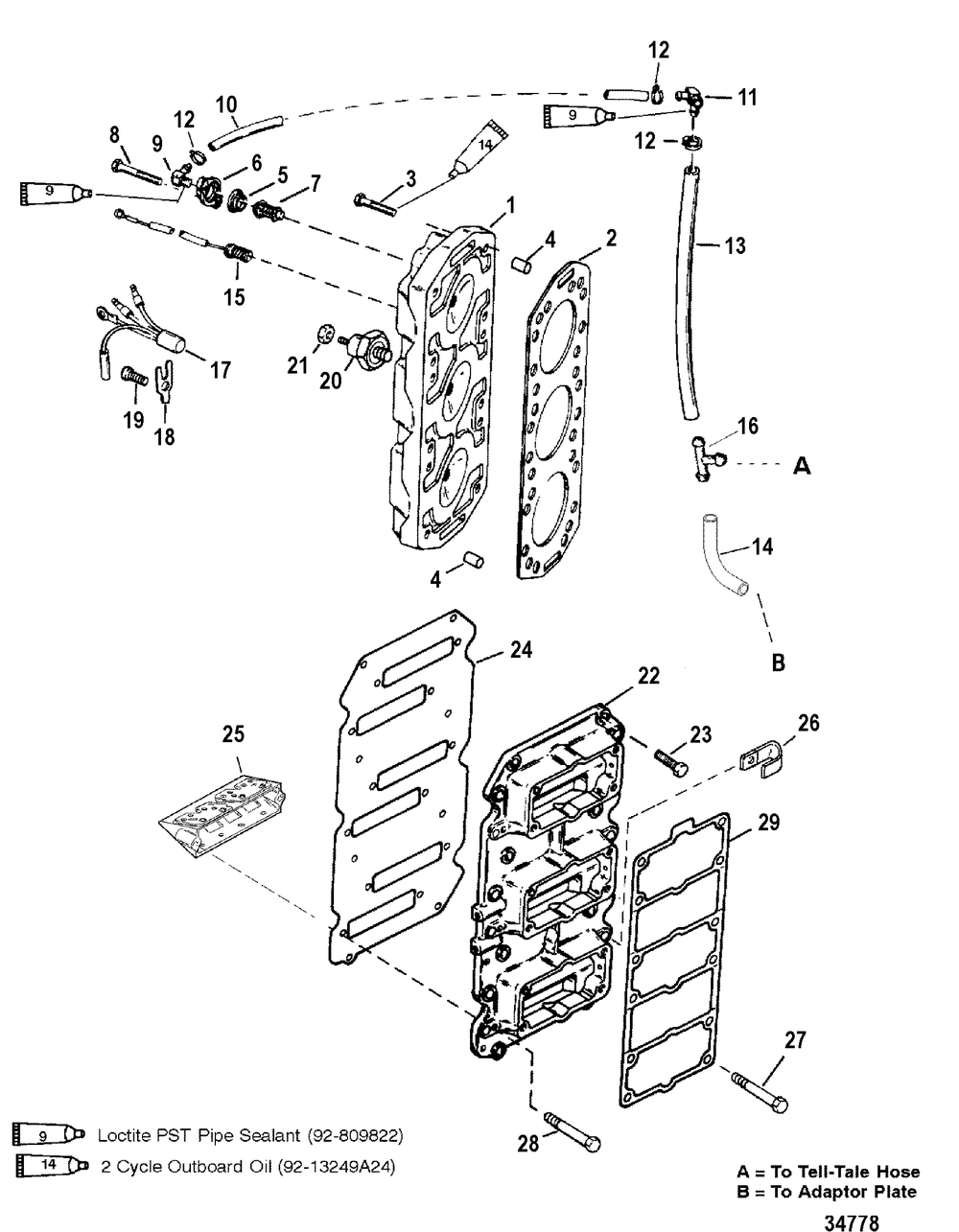

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| - | GASKET SET | 1 | |
| - | ORD 812817R97 (XR6/Magnum III) SNtahos_ 0D284787 & Below | 1 | |
| - | ORD 823434R97 (XR6/Magnum III) SNtahos_ 0D284788 & Up | 1 | |
| - | ORD 813043R97 (200) | 1 | |
| 1 | HEAD-CYLINDER XR6/MAGNUM III/TRACKER/175/200 SNtahos_ 0D262673 & Below | 2 | |
| 2 | GASKET XR6/MAGNUM III/TRACKER/175/200 SNtahos_ 0D262673 & Below | 2 | |
| 3 | SCREW | 23 | |
| 3 | SCREW (200) | 1 | |
| 4 | PIN-DOWEL @3 (3 per pack) | 4 | |
| 5 | GASKET @4 (4 per pack) | 2 | |
| 6 | COVER KIT-THERMO | 2 | |
| 7 | THERMOSTAT-143 SNtahos_ 0G437999 & Below | 2 | |
| 8 | SCREW @5 (5 per pack) | 4 | |
| 9 | FITTING SNtahos_ 0G129222 & Up | 1 | |
| 10 | HOSE-48 INCH | 1 | |
| 11 | FITTING | 1 | |
| 12 | TIE STRAP @100 (100 per pack) | 0 | |
| 15 | SENDER | 1 | |
| 16 | FITTING | 1 | |
| 17 | SENSOR ASSY-TEMP | 1 | |
| 18 | RETAINER | 2 | |
| 19 | SCREW | 2 | |
| 20 | SENSOR | 1 | |
| 21 | NUT @10 (10 per pack) | 1 | |
| 22 | ADAPTOR PLATE | 1 | |
| 23 | SCREW @5 (5 per pack) | 8 | |
| 24 | GASKET | 1 | |
| 25 | REED BLOCK ASSY | 6 | |
| 26 | J CLIP @5 (5 per pack) | 1 | |
| 27 | SCREW @2 (2 per pack) | 6 | |
| 28 | SCREW | 6 | |
| 29 | GASKET | 1 |
