| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

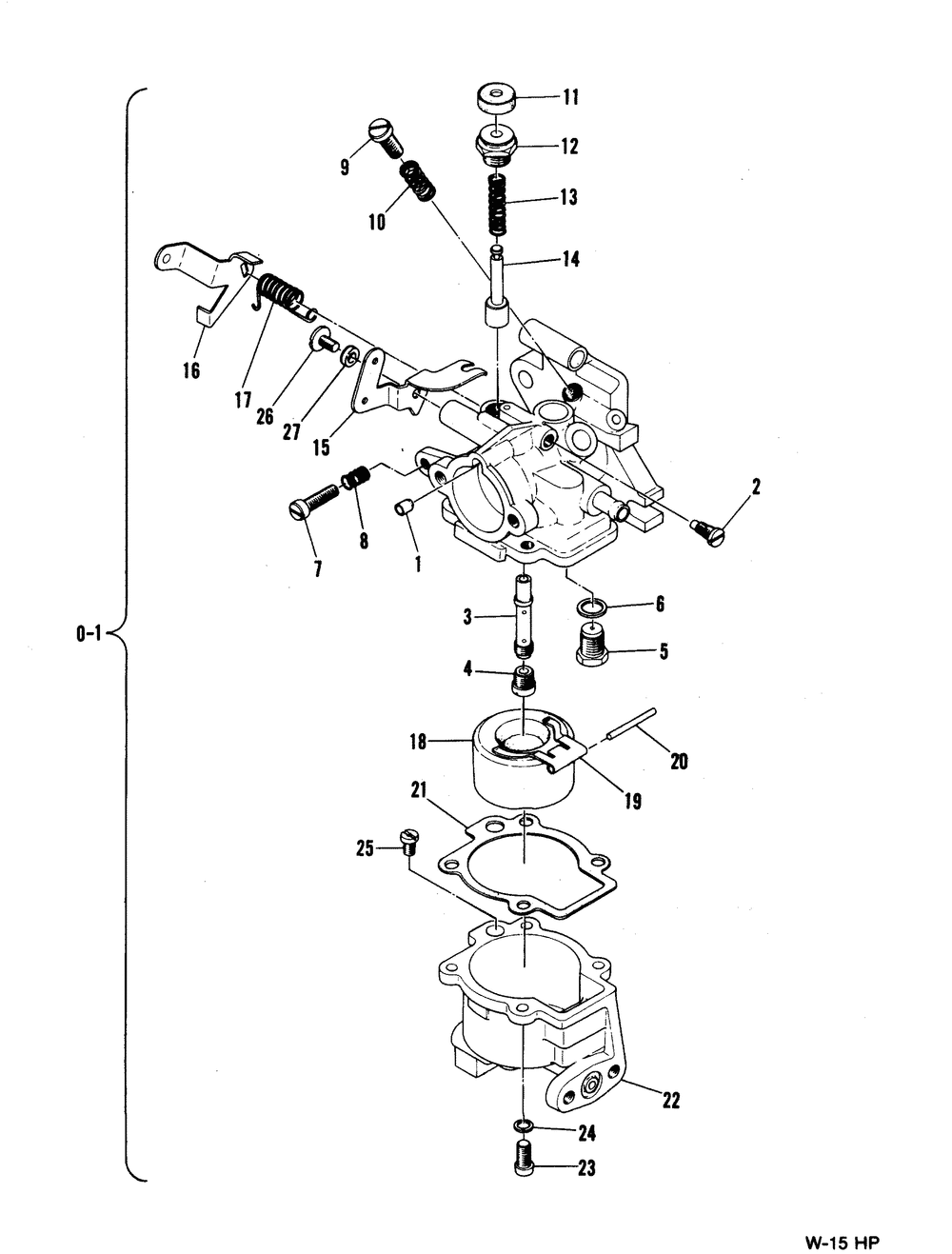

| 0-1 | CARBURETOR | 1 | |
| 1 | JET | 1 | |
| 2 | JET SERIAL 00000000-00002350 | 1 | |
| 3 | MAIN NOZZLE | 1 | |
| 4 | JET | 1 | |
| 5 | VALVE SEAT (M-001673 ML-333425 AND BELOW) | 1 | |
| 6 | GASKET @5 (5 per pack) | 1 | |
| 7 | SCREW @2 (2 per pack) | 1 | |
| 8 | SPRING @5 (5 per pack) | 1 | |
| 9 | SCREW | 1 | |
| 10 | SPRING @5 (5 per pack) | 1 | |
| 11 | COVER | 1 | |
| 12 | CAP | 1 | |
| 13 | SPRING @5 (5 per pack) | 1 | |
| 14 | PLUNGER | 1 | |
| 15 | LEVER | 1 | |
| 16 | LEVER | 1 | |
| 17 | SPRING | 1 | |
| 18 | FLOAT | 1 | |
| 19 | ARM | 1 | |
| 20 | PIN | 1 | |
| 21 | GASKET | 1 | |
| 22 | FLOAT BOWL | 1 | |
| 23 | SCREW @2 (2 per pack) | 4 | |
| 24 | LOCKWASHER @5 (5 per pack) | 4 | |
| 25 | JET | 1 | |
| 26 | SCREW-SET SERIAL 00002351-09999999 | 1 | |
| 27 | COLLAR | 1 | |
| 27 | CARB REPAIR KIT REPLACEMENT PARTS | 1 |
