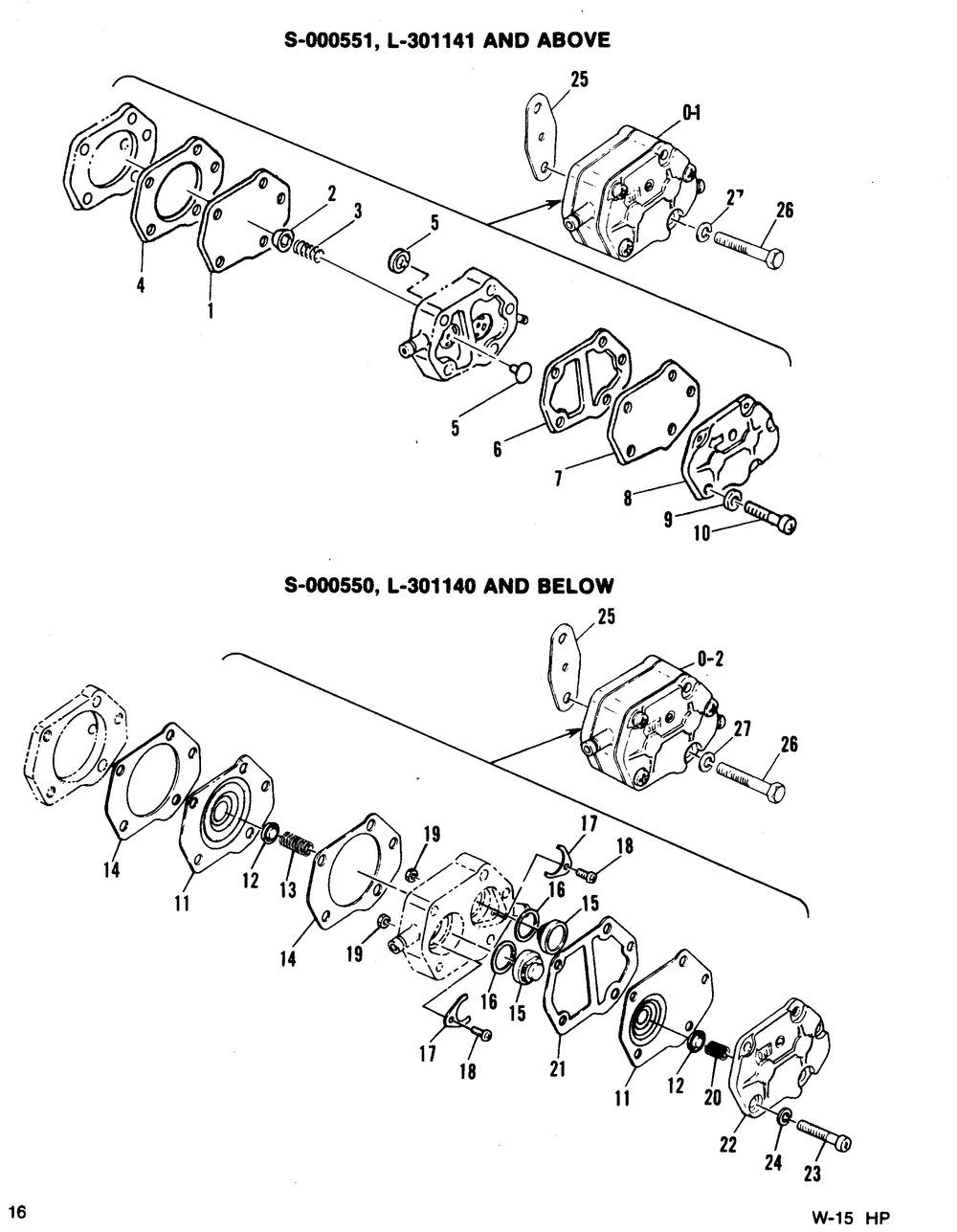

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 0-1 | FUEL PUMP SERIAL 00000551-09999999 | 1 | |
| 0-2 | FUEL PUMP | 1 | |
| 1 | DIAPHRAGM | 1 | |
| 2 | PLATE | 1 | |
| 3 | SPRING @5 (5 per pack) | 1 | |
| 4 | GASKET @2 (2 per pack) | 1 | |
| 5 | CHECK VALVE (SERIAL 00000000-00004470) | 2 | |
| 6 | GASKET | 1 | |
| 7 | DIAPHRAGM | 1 | |
| 8 | COVER | 1 | |
| 9 | SCREW | 3 | |
| 10 | LOCKWASHER @5 SERIAL 00000000-00008215 (5 per pack) | 3 | |
| 15 | CHECK VALVE | 2 | |
| 16 | GASKET @5 (5 per pack) | 2 | |
| 17 | RETAINER | 2 | |
| 18 | SCREW @5 (5 per pack) | 2 | |
| 19 | NUT @5 SNtahos_ S-675-000180/L-675-300280 & Below (5 per pack) | 2 | |
| 20 | SPRING SNtahos_ S-675-000180/L-675-300280 & Below | 1 | |
| 23 | SCREW | 3 | |
| 25 | GASKET @5 (5 per pack) | 1 | |
| 26 | BOLT | 2 | |
| 27 | LOCKWASHER @5 SERIAL 00000000-00008215 (5 per pack) | 2 |
