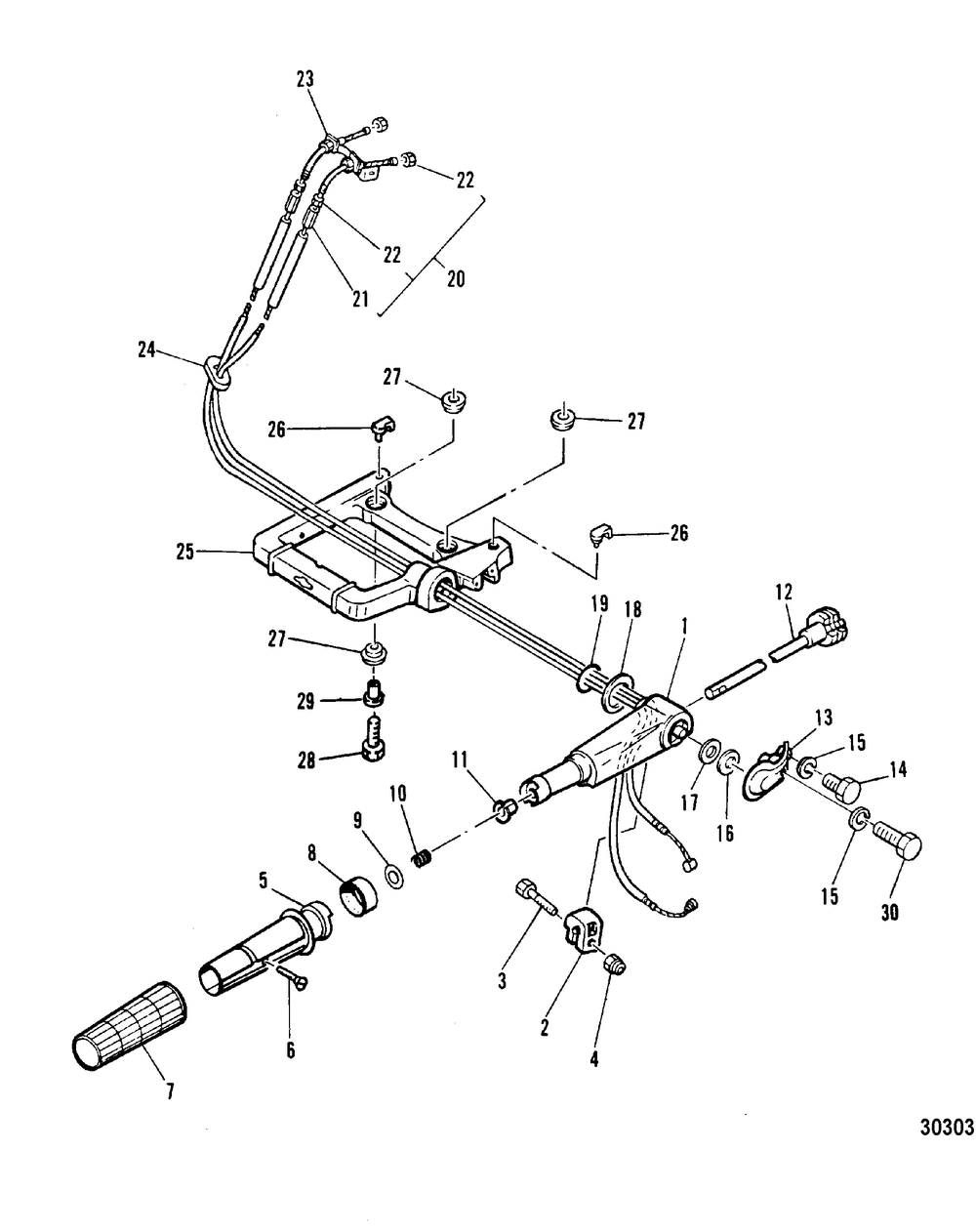

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ARM | 1 | |
| 2 | GUIDE | 1 | |
| 3 | BOLT SERIAL 00000000-00008215 | 1 | |
| 4 | NUT @2 (2 per pack) | 1 | |
| 5 | HANDLE | 1 | |
| 6 | SCREW | 1 | |
| 7 | GRIP | 1 | |
| 8 | INDICATOR | 1 | |
| 9 | WASHER @2 OPTIONAL PARTS (2 per pack) | 1 | |
| 10 | SPRING | 1 | |
| 11 | BUSHING @2 (2 per pack) | 1 | |
| 12 | THROTTLE LEVER | 1 | |
| 13 | CAP M-001376 ML-317965 AND ABOVE | 1 | |
| 15 | WASHER @5 SERIAL 00008216-09999999 (5 per pack) | 2 | |
| 16 | SPACER @5 (5 per pack) | 1 | |
| 16 | SPACER @5 (5 per pack) | 1 | |
| 16 | SPACER @5 (5 per pack) | 1 | |
| 17 | SPACER | 1 | |
| 18 | SPACER | 1 | |
| 19 | O RING @2 (2 per pack) | 1 | |
| 20 | THROTTLE WIRE | 2 | |
| 21 | NUT | 1 | |
| 22 | NUT @2 (2 per pack) | 3 | |
| 23 | BRACKET | 1 | |
| 24 | GROMMET | 1 | |
| 25 | BRACKET | 1 | |
| 26 | SPACER | 2 | |
| 27 | GROMMET @2 (2 per pack) | 4 | |
| 28 | BOLT @2 (2 per pack) | 2 | |
| 29 | COLLAR | 2 | |
| 30 | BOLT | 1 |
