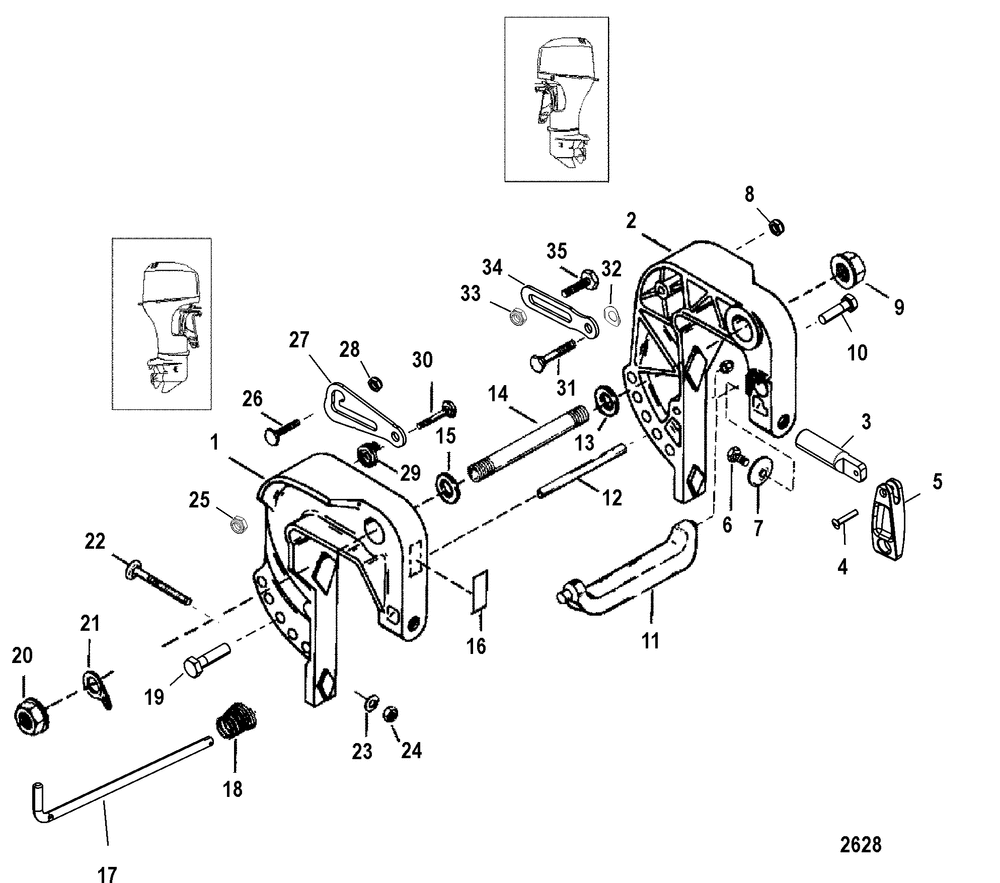

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BRKT-TRANSOM-BLK (5 Hole Screw Attaching) | 1 | |
| 1 | ORD 1497-8796A7 (5 Hole Screw Attaching) | 1 | |
| 2 | BRKT-TRANSOM-BLK (5 Hole Screw Attaching) | 1 | |
| 2 | ORD 1497-8794A 9 (5 Hole Screw Attaching) | 1 | |
| 3 | SCREW ASSY-THUMB | 2 | |
| 6 | SCREW | 2 | |
| 7 | ORD 12-818884 | 2 | |
| 8 | NUT @5 (5 per pack) | 1 | |
| 9 | NUT | 1 | |
| 10 | SCREW @5 (5 per pack) | 1 | |
| 11 | HANDLE | 1 | |
| 12 | SPACER SCREW ATTACHING | 1 | |
| 13 | WASHER @2 (2 per pack) | 1 | |
| 14 | TILT TUBE | 1 | |
| 16 | DECAL-CO PILOT | 1 | |
| 17 | PIN-KIT USE WITH 5 HOLE BRACKET | 1 | |
| 18 | SPRING USE WITH 5 HOLE BRACKET | 1 | |
| 21 | CLIP | 1 | |
| 22 | SCREW | 2 | |
| 23 | WASHER | 2 | |
| 24 | NUT | 2 | |
| 26 | SCREW | 1 | |
| 27 | LEVER | 1 | |
| 29 | SPRING | 1 | |
| 30 | SCREW | 1 | |
| 32 | WASHER-WAVE @5 (5 per pack) | 1 | |
| 34 | STRAP | 1 |
