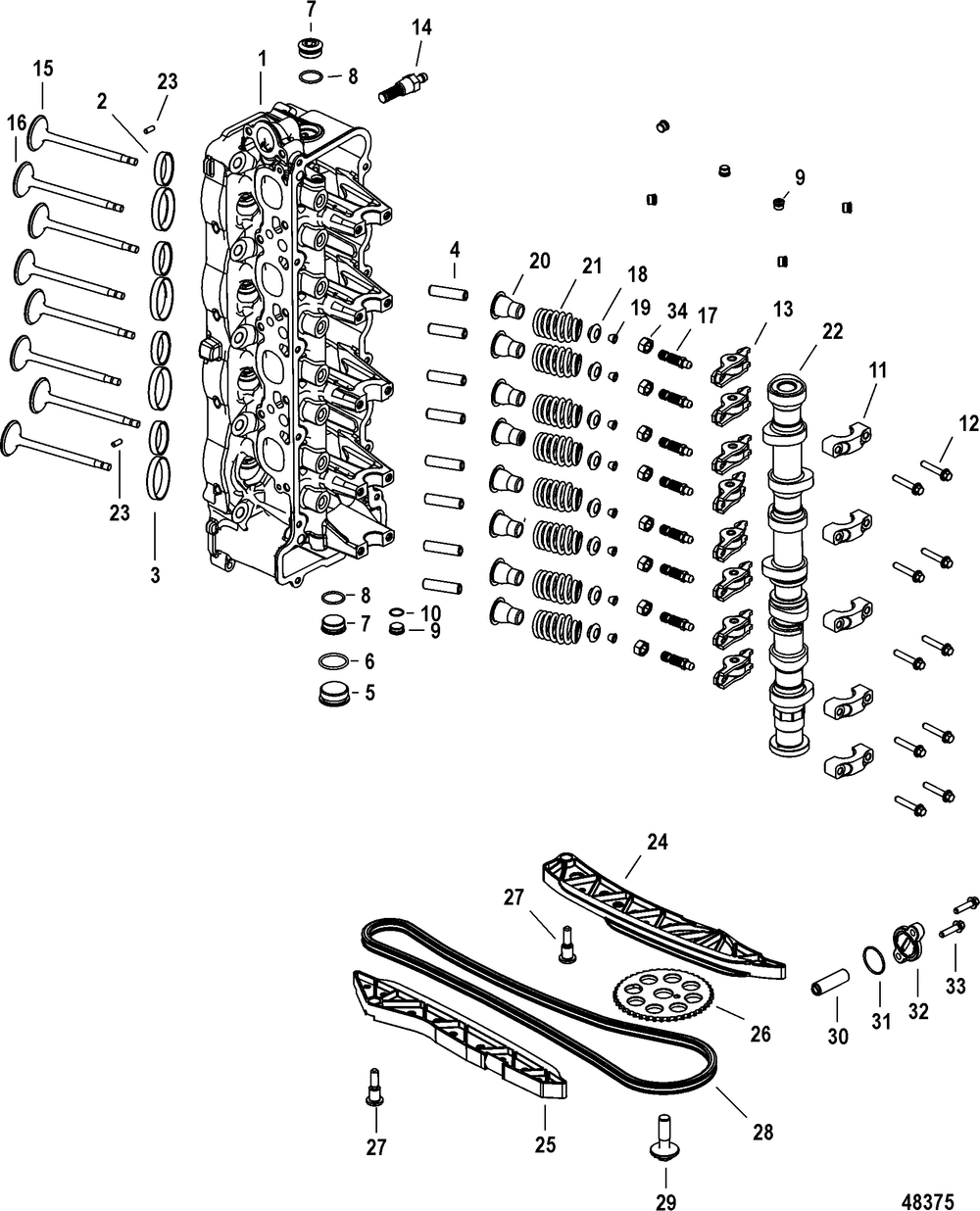

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| - | HEAD ASSY -CYL | 1 | |
| 1 | CYL HEAD-BARE | 1 | |
| 2 | VALVE SEAT EXHAU | 4 | |
| 3 | VALVE SEATINTAKE | 4 | |
| 4 | VALVE GUIDE | 8 | |
| 5 | PLUG - 30MM | 1 | |
| 7 | PLUG - 24MM | 2 | |
| 9 | PLUG 10 MM | 7 | |
| 12 | SCREW @2 (2 per pack) | 10 | |
| 13 | ROLER FINGR ASSY | 1 | |
| 14 | FITTING WAT STRA | 1 | |
| 15 | VALVE EXHAUST | 4 | |
| 16 | VALVE INTAKE | 4 | |
| 17 | STUD BALL M10 X 1 | 8 | |
| 18 | REAINER VALVE | 8 | |
| 19 | KEY VAVLE RETAIN 2 per valve | 16 | |
| 21 | VALVE SPRING | 8 | |
| 22 | CAMSHAFT ASSY | 1 | |
| 23 | PIN - DOWEL | 2 | |
| 24 | BLADE TIMNG CHAIN | 1 | |
| 25 | TIMING CHAIN | 1 | |
| 26 | SPROCKET | 1 | |
| 27 | SCREW | 2 | |
| 28 | CAM CHAIN | 1 | |
| 29 | SCREW | 1 | |
| 30 | TIMNG CHAIN TEN | 1 | |
| 31 | O-RING | 1 | |
| 32 | END CAP CAM TENS | 1 | |
| 33 | SCREW @2 (2 per pack) | 2 | |
| 34 | NUT 121DEG M10X1 | 8 |
