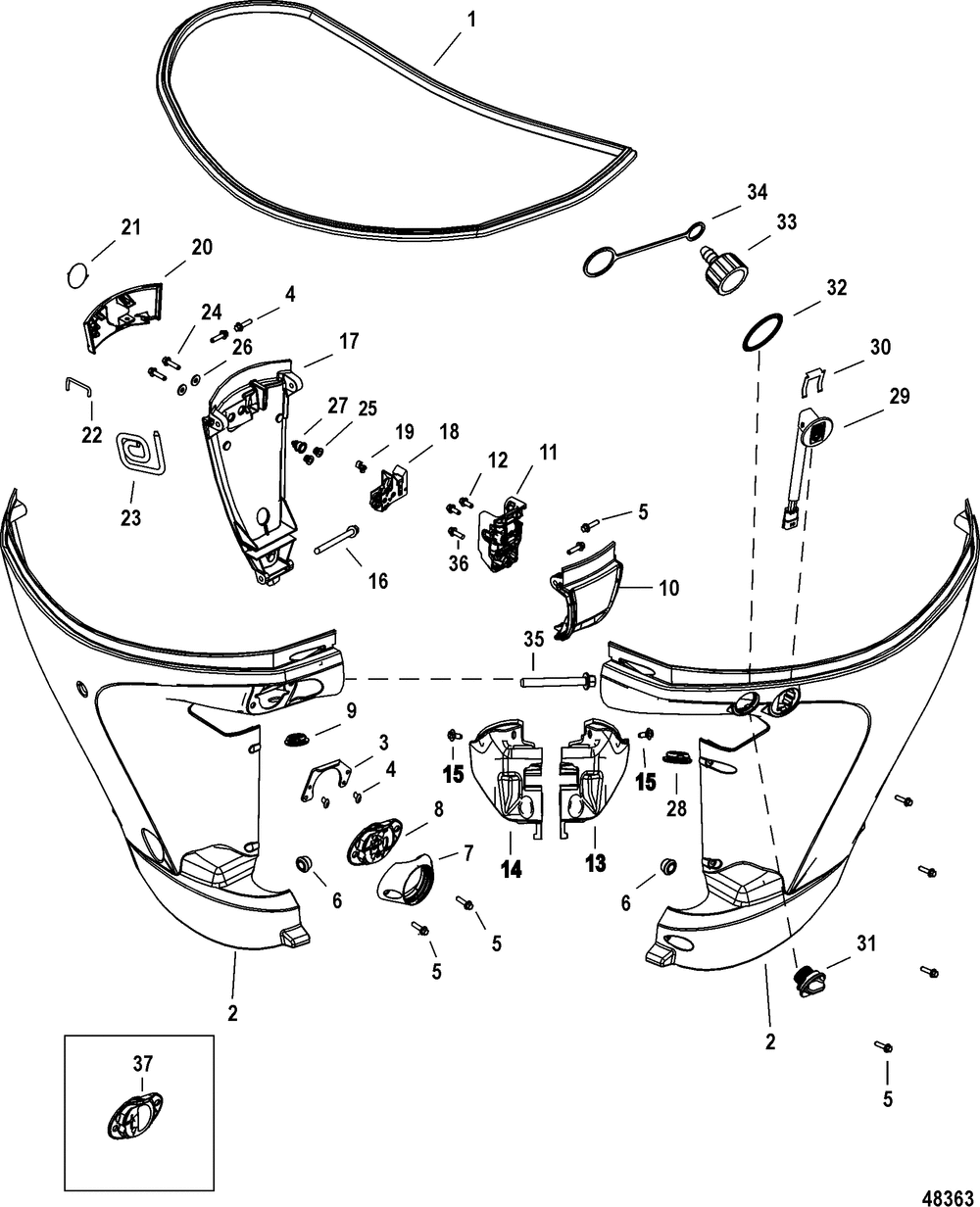

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| - | PANEL ASSY REAR | 1 | |
| 1 | SEALTOP COWL | 1 | |
| 2 | CHAP ASSEMBLY | 1 | |
| 3 | PLATEINGRESS MT | 1 | |
| 4 | SCREW-35X8MM@5 (5 per pack) | 2 | |
| 5 | SCREW @2 (2 per pack) | 8 | |
| 6 | CAP-SUPPORT | 2 | |
| 7 | ADAPTOR-RIG HOSE | 1 | |
| 8 | GROMMET INGRESS | 1 | |
| 9 | GROMMET-TRIM WIRE | 1 | |
| 10 | LOWER COWL FRONT | 1 | |
| 11 | RETAINER-TOP COWL | 1 | |
| 12 | SCREW @2 (2 per pack) | 3 | |
| 13 | COVER-UPPER MOUNT | 1 | |
| 14 | COVER-UPPER MOUNT | 1 | |
| 15 | SCREW | 2 | |
| 16 | SCREWM6 HX FLG | 1 | |
| 17 | PANEL REAR | 1 | |
| 18 | LATCH ASSY-REAR | 1 | |
| 19 | RETAINER | 1 | |
| 20 | HANDLE LATCH | 1 | |
| 21 | M-ICON - 39MM | 1 | |
| 22 | REAR LATCH LINK | 1 | |
| 23 | PIN-HANDLE | 1 | |
| 24 | SCREW @2 (2 per pack) | 2 | |
| 25 | BUSHING | 2 | |
| 26 | WASHER @5 (5 per pack) | 2 | |
| 27 | SEAL-REAR LATCH | 1 | |
| 28 | GROMMET-TRIM WIRE | 1 | |
| 29 | TRIM-SWITCH | 1 | |
| 30 | RETAINER | 1 | |
| 31 | PLUG | 1 | |
| 32 | SEAL-FLUSH PLUG | 1 | |
| 33 | FITTING ASY FLUSH | 1 | |
| 34 | TETHER | 1 | |
| 35 | SCREW @2 (2 per pack) | 1 | |
| 36 | SCREW @2 (2 per pack) | 1 | |
| 37 | RIGGING TUBE GROM Rigging Tube (Accessory) | 1 |
