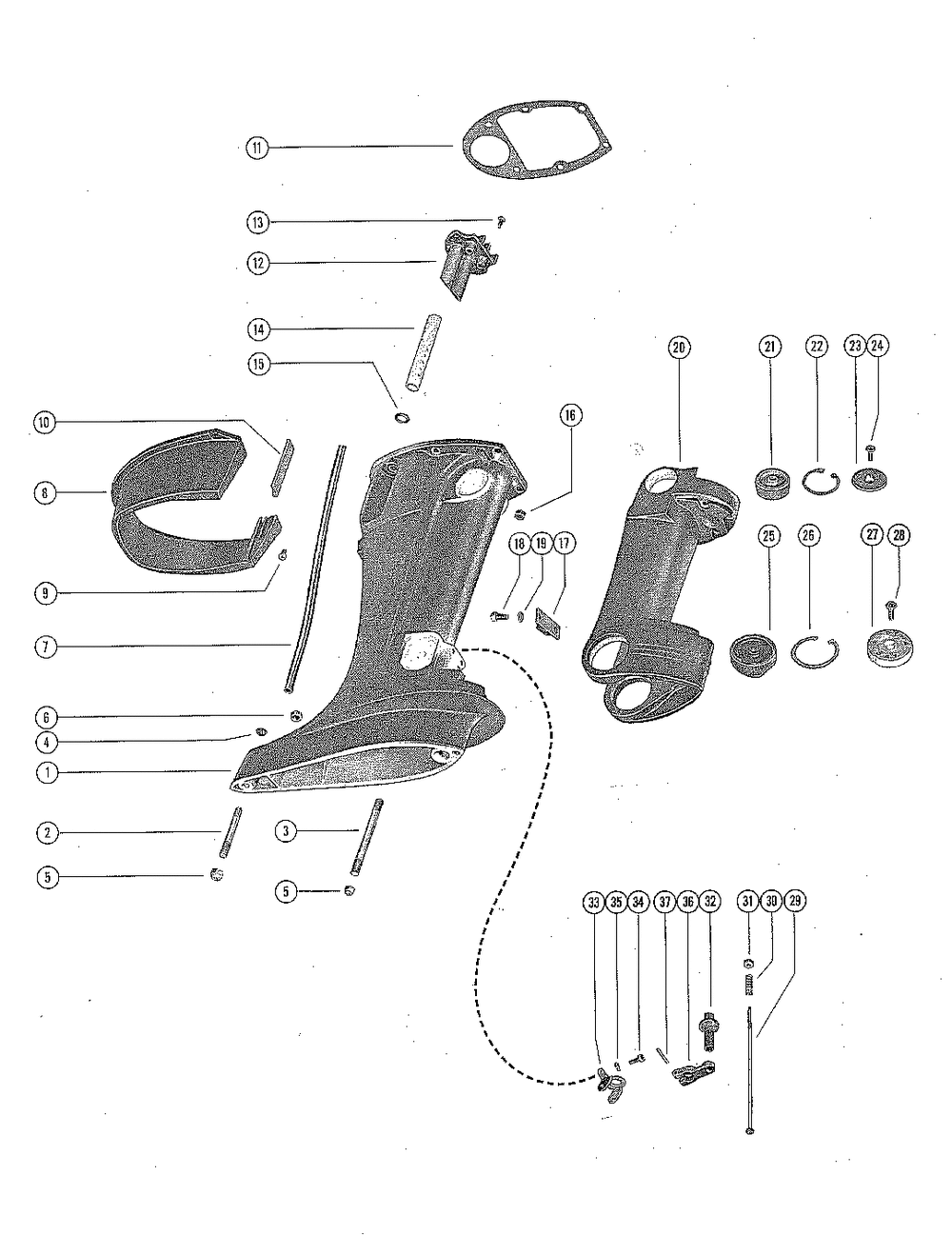

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | DRIVE SHAFT HSG | 11 | |
| 1 | DRIVE SHAFT HSG | 11 | |
| 2 | STUD | 11 | |
| 3 | STUD | 11 | |
| 4 | PLUG @5 (5 per pack) | 11 | |
| 5 | NUT @5 (5 per pack) | 22 | |
| 6 | NUT-SS @3 (3 per pack) | 11 | |
| 7 | TUBING | 11 | |
| 8 | COVER | 11 | |
| 9 | Screw, trim cover to bottom cowl | 33 | |
| 10 | SEAL | 22 | |
| 11 | GASKET | 11 | |
| 12 | PLATE | 11 | |
| 13 | SCREW | 22 | |
| 14 | TUBING | 22 | |
| 15 | O RING | 22 | |
| 16 | NUT @5 (5 per pack) | 44 | |
| 17 | BUMPER | 11 | |
| 18 | SCREW @5 (Use with Reference 25) (5 per pack) | 22 | |
| 19 | LOCKWASHER @5 (5 per pack) | 22 | |
| 20 | SADDLE | 11 | |
| 21 | MOUNT | 22 | |
| 21 | MOUNT | 22 | |
| 22 | RING-RETAINING | 22 | |
| 23 | COVER | 22 | |
| 24 | SCREW | 22 | |
| 25 | MOUNT ASSY | 22 | |
| 25 | MOUNT ASSY | 22 | |
| 26 | RING-RETAINER | 22 | |
| 27 | COVER | 22 | |
| 27 | COVER | 22 | |
| 28 | SCREW @5 (5 per pack) | 22 | |
| 29 | ROD | 11 | |
| 30 | SPRING | 11 | |
| 31 | NUT | 11 | |
| 32 | COUPLING ASSY SERIAL 00000000-01906565 | 11 | |
| 33 | RETAINER | 11 | |
| 36 | LEVER | 11 | |
| 37 | PIN-ROLL | 11 |
