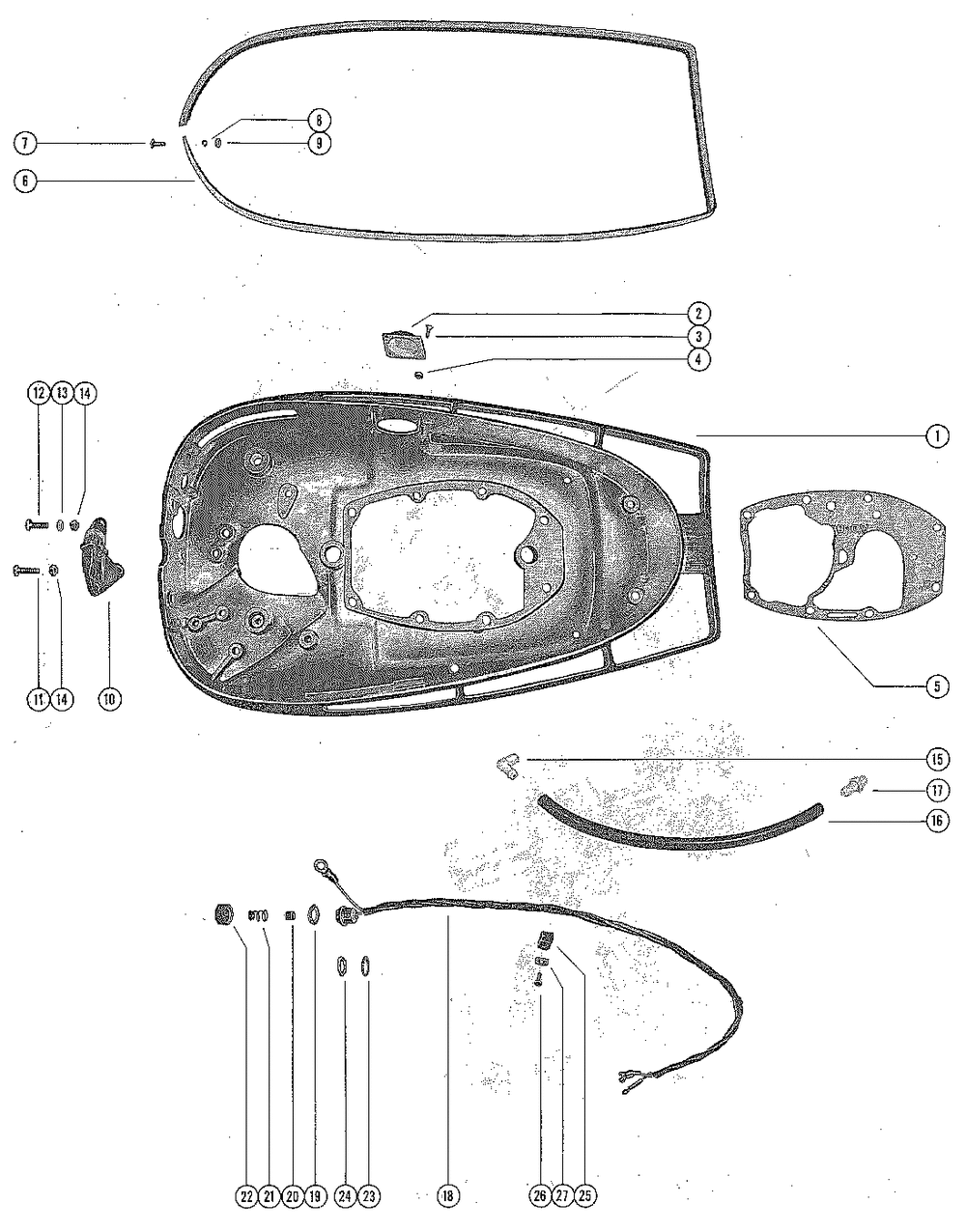

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| -- | SWITCH ASSY | 1 | |
| 1 | BOTTOM COWL | 1 | |
| 2 | PLUG | 1 | |
| 3 | SCREW @5 (5 per pack) | 4 | |
| 4 | NUT @2 (2 per pack) | 4 | |
| 5 | GASKET @2 (2 per pack) | 1 | |
| 6 | MOULDING | 1 | |
| 7 | SCREW @5 (5 per pack) | 1 | |
| 8 | LOCKWASHER @5 (5 per pack) | 1 | |
| 9 | NUT @5 (5 per pack) | 1 | |
| 10 | BRACKET | 1 | |
| 11 | BOLT @5 (5 per pack) | 2 | |
| 12 | SCREW @5 (5 per pack) | 1 | |
| 13 | WASHER | 1 | |
| 14 | NUT @5 (5 per pack) | 3 | |
| 15 | ELBOW | 1 | |
| 16 | HOSE-57 INCH | 1 | |
| 17 | FITTING | 1 | |
| 18 | HARNESS | 1 | |
| 19 | WASHER @5 (5 per pack) | 1 | |
| 20 | INSULATOR | 1 | |
| 21 | SPRING @2 (2 per pack) | 1 | |
| 22 | COVER ASSY | 1 | |
| 23 | LOCKWASHER @3 (3 per pack) | 1 | |
| 24 | NUT | 1 | |
| 25 | CLIP | 2 | |
| 26 | SCREW @4 (4 per pack) | 1 | |
| 26 | SCREW | 1 | |
| 27 | WASHER | 2 |
