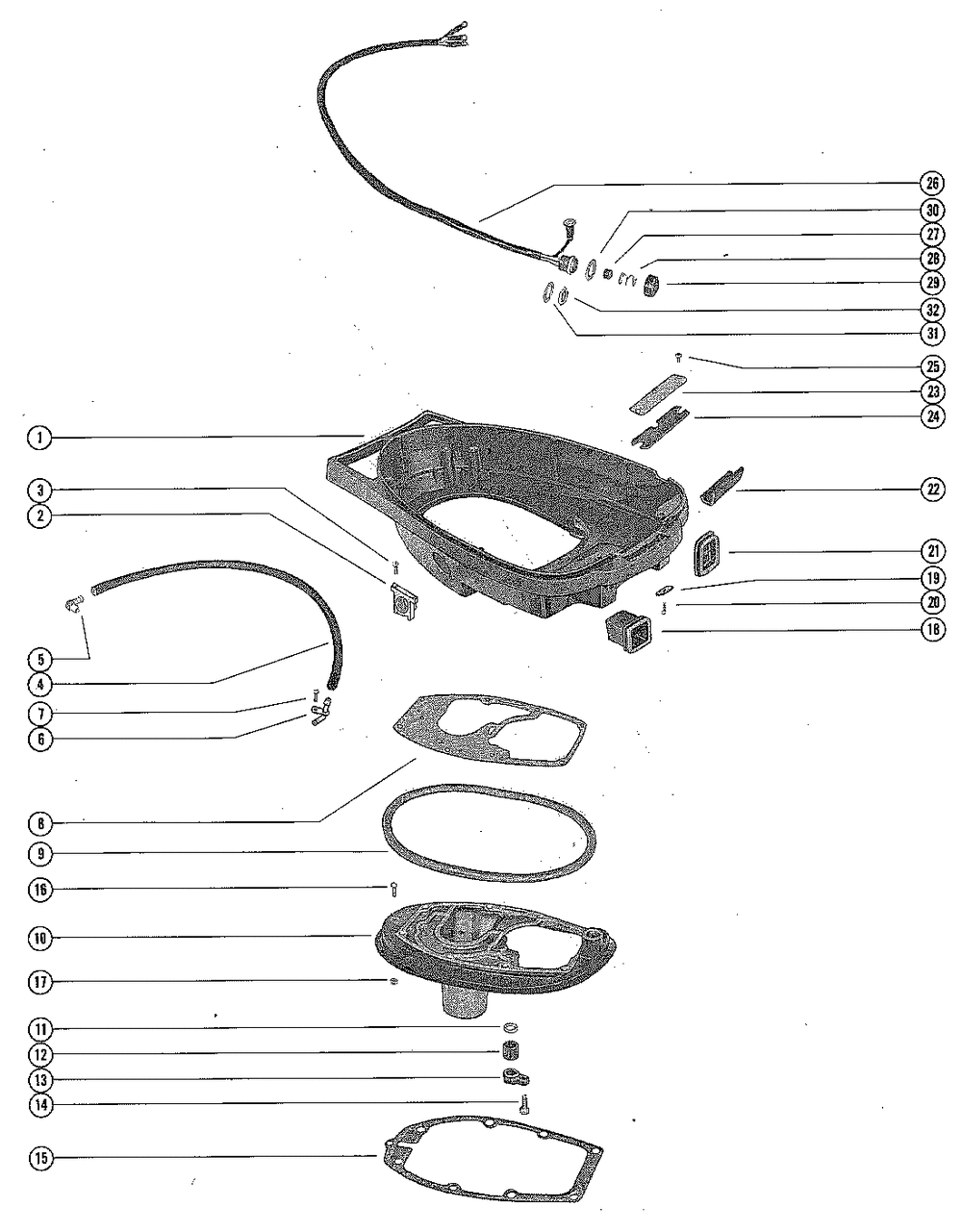

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BOTTOM COWL | 1 | |
| 2 | COVER | 1 | |
| 3 | SCREW @5 (5 per pack) | 2 | |
| 4 | HOSE-57 INCH | 1 | |
| 5 | ELBOW | 1 | |
| 6 | NOZZLE | 1 | |
| 7 | SCREW | 1 | |
| 8 | GASKET @2 (2 per pack) | 1 | |
| 9 | SEAL | 1 | |
| 10 | PLATE ASSY | 1 | |
| 11 | WASHER @3 (3 per pack) | 1 | |
| 12 | SEAL @2 (2 per pack) | 1 | |
| 13 | RETAINER SERIAL 01835754-09999999 | 1 | |
| 14 | SCREW SERIAL 01809704-09999999 | 1 | |
| 15 | GASKET | 1 | |
| 16 | SCREW @5 (5 per pack) | 1 | |
| 17 | NUT @5 (5 per pack) | 1 | |
| 18 | BOOT | 1 | |
| 19 | COVER | 1 | |
| 20 | SCREW @5 (5 per pack) | 1 | |
| 21 | BOOT | 1 | |
| 22 | CUSHION | 1 | |
| 23 | PLATE ASSY | 1 | |
| 24 | SOUND PAD | 1 | |
| 25 | SCREW @5 (5 per pack) | 3 | |
| 26 | STOP SWITCH KIT | 1 | |
| 27 | INSULATOR | 1 | |
| 28 | SPRING @2 (2 per pack) | 1 | |
| 29 | COVER ASSY | 1 | |
| 30 | WASHER | 1 | |
| 31 | LOCKWASHER @3 (3 per pack) | 1 | |
| 32 | NUT | 1 |
