Mercury 500 1770179 THRU 2116317 500 1770179 THRU 2116317 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

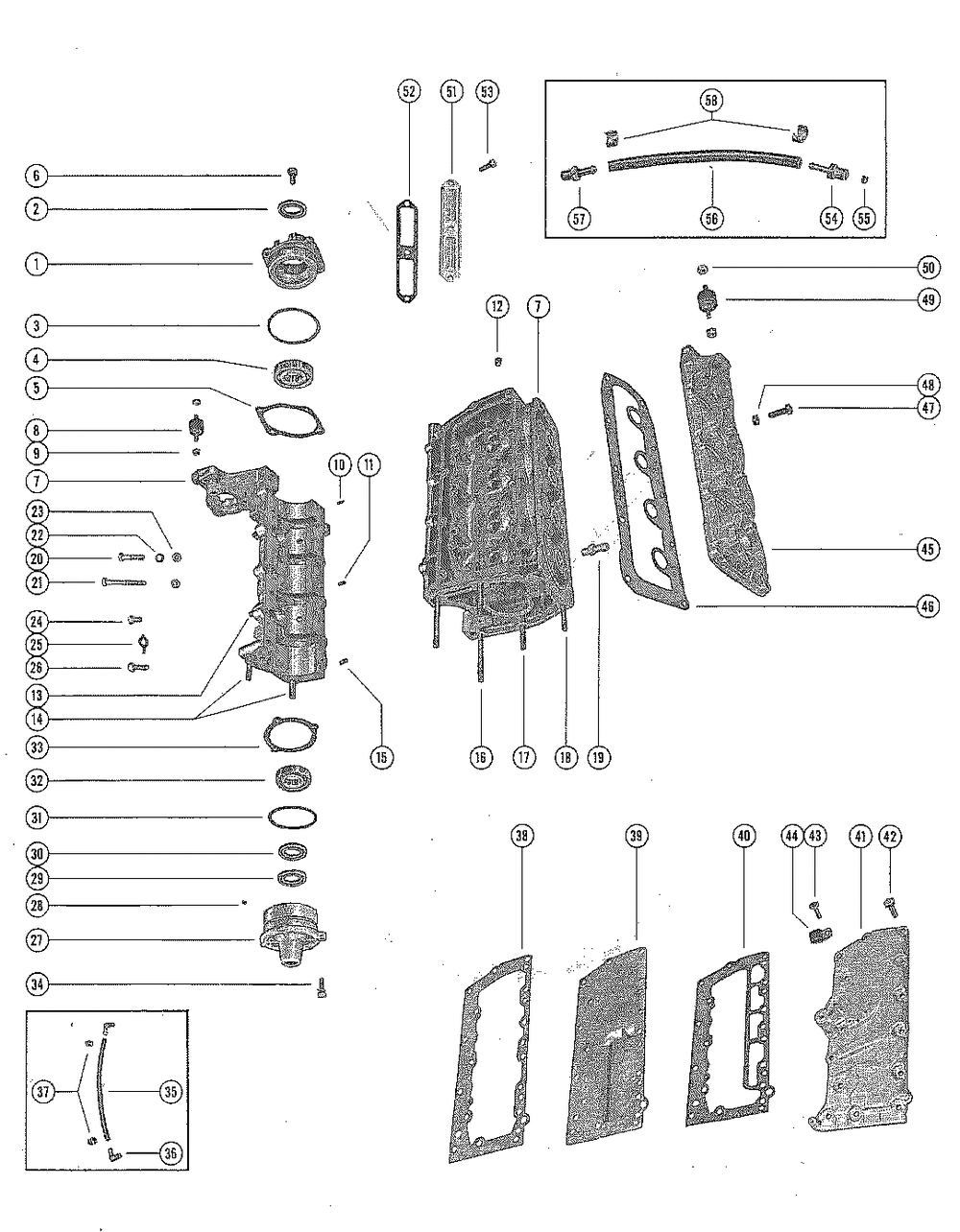

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
№ Наименование Примечание Кол-во
1 END CAP ASSY 1111
2 SEAL @2 (2 per pack) 1111
3 O RING @5 (5 per pack) 1111
4 BEARING-BALL 1111
5 SHIM SET 0
6 SCREW W/LW @5 (5 per pack) 4444
7 CYLINDER BLOCK 0
7 CYLINDER BLOCK 11
8 MOUNT 2222
9 NUT @5 (5 per pack) 4444
10 PIN-DOWEL @5 (5 per pack) 2222
11 PIN-DOWEL @3 (3 per pack) 1111
12 PLUG-(BRASS)@2 (2 per pack) 1111
13 STUD 4444
14 STUD 2222
15 PIN-DOWEL-SOLID 2222
16 STUD 2222
17 STUD @2 (2 per pack) 2222
18 STUD @2 (2 per pack) 2222
19 FITTING 1111
20 BOLT UNITED STATES 3751849 AND BELOW AUSTRALIA 8013389 AND BELOW CANADA 7024372 AND BELOW 1414
20 SCREW UNITED STATES 4403386 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7067847 AND BELOW 0
21 SCREW @5 (5 per pack) 4444
22 WASHER @5 (5 per pack) 0
23 NUT @5 (5 per pack) 1818181
24 SCREW SERIAL 00000000-01618984 2222
25 WASHER-TAB @5 DESIGN I W/TAB WASHER (5 per pack) 3333
26 SCREW @2 (2 per pack) 1111
27 END CAP ASSY 1111
28 CHECK VALVE KIT 1111
29 SEAL 1111
33 SHIM SET 0
35 HOSE-57 INCH 1111
37 CLAMP @5 (5 per pack) 2222
38 GASKET 1111
39 PLATE-BAFFLE 0
39 PLATE 11
40 CARTON 1111
41 COVER ASSY 11
41 COVER ASSY 0
42 SCREW @5 (5 per pack) 1313
42 SCREW @5 (5 per pack) 0
43 SCREW 22
43 SCREW @5 (5 per pack) 0
44 CLAMP 2222
45 CYL BLOCK COVER 1111
46 GASKET 1111
47 BOLT @5 (5 per pack) 1010101
50 NUT @5 (5 per pack) 2222
51 COVER 2222
52 GASKET 2222
53 SCREW @2 (2 per pack) 4444
53 SCREW @5 (5 per pack) 2222
54 CONNECTOR-FUEL 1111
56 TUBING-36 INCH 1111
57 FITTING 1111
58 CLAMP @2 (2 per pack) 2222
