Mercury 500 1770179 THRU 2116317 500 1770179 THRU 2116317 DRIVE SHAFT HOUSING ASSEMBLY

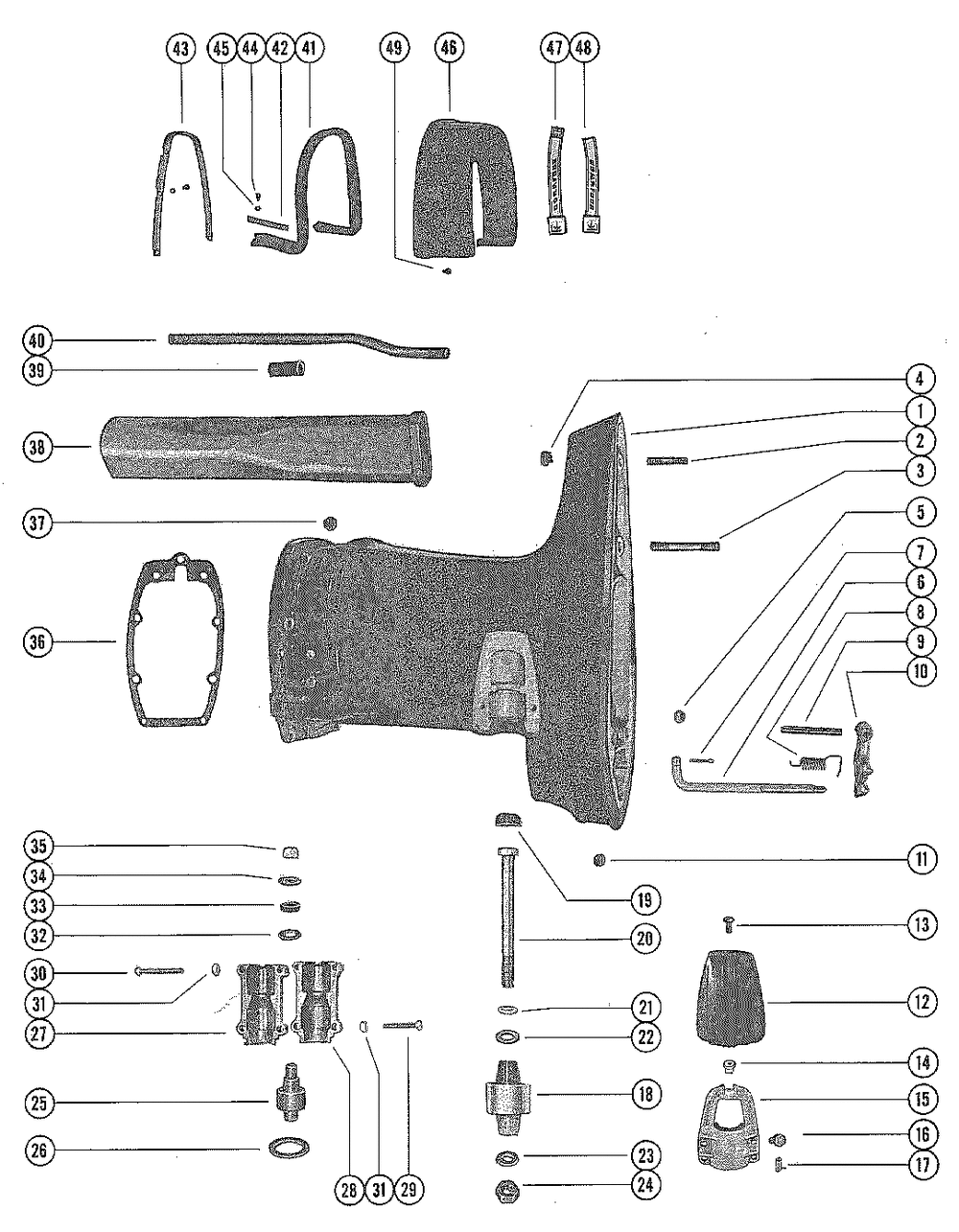

DRIVE SHAFT HOUSING ASSEMBLY
№ Наименование Примечание Кол-во
1 DRIVE SHAFT HSG 1111
1 DRIVE SHAFT HSG 1111
2 STUD 1111
3 STUD 1111
4 PLUG @5 (5 per pack) 1111
5 NUT @10 (10 per pack) 2222
6 ROD 1111
6 ROD 1111
7 PIN-COTTER @2 (2 per pack) 1111
8 SPRING 1111
9 LOCK PIN 1111
10 LEVER 1111
11 PLUG @3 (3 per pack) 1111
12 COVER-BLACK 2222
13 SCREW @5 (5 per pack) 2222
14 NUT @5 (5 per pack) 2222
15 CLAMP 2222
16 SCREW @5 (5 per pack) 4444
17 SPRING @3 (3 per pack) 4444
18 MOUNT 2222
19 BUMPER 2222
20 SCREW 2222
21 WASHER 2222
22 WASHER 2222
23 WASHER 2222
24 NUT @5 (5 per pack) 2222
25 MOUNT 2222
26 PACKING @5 (5 per pack) 2222
27 COVER ASSY 2222
28 COVER ASSY 2222
29 SCREW @5 (5 per pack) 4444
30 SCREW @5 (5 per pack) 4444
31 NUT @5 (5 per pack) 8888
32 WASHER @5 (5 per pack) 2222
33 WASHER @5 (RC Models) (5 per pack) 2222
34 WASHER 2222
35 NUT @5 (5 per pack) 2222
36 GASKET 1111
37 NUT @5 (5 per pack) 8888
38 TUBE-EXHAUST 1111
38 TUBE 1111
39 SLEEVE 1111
40 TUBE 1111
40 TUBE-WATER-SHORT (SHORT) 1111
41 SEAL 1111
42 STRIP 2222
43 STRIP 1111
44 SCREW @5 (5 per pack) 1010101
45 WASHER @3 (3 per pack) 1010101
46 COVER (Black) 1111
