Mercury 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

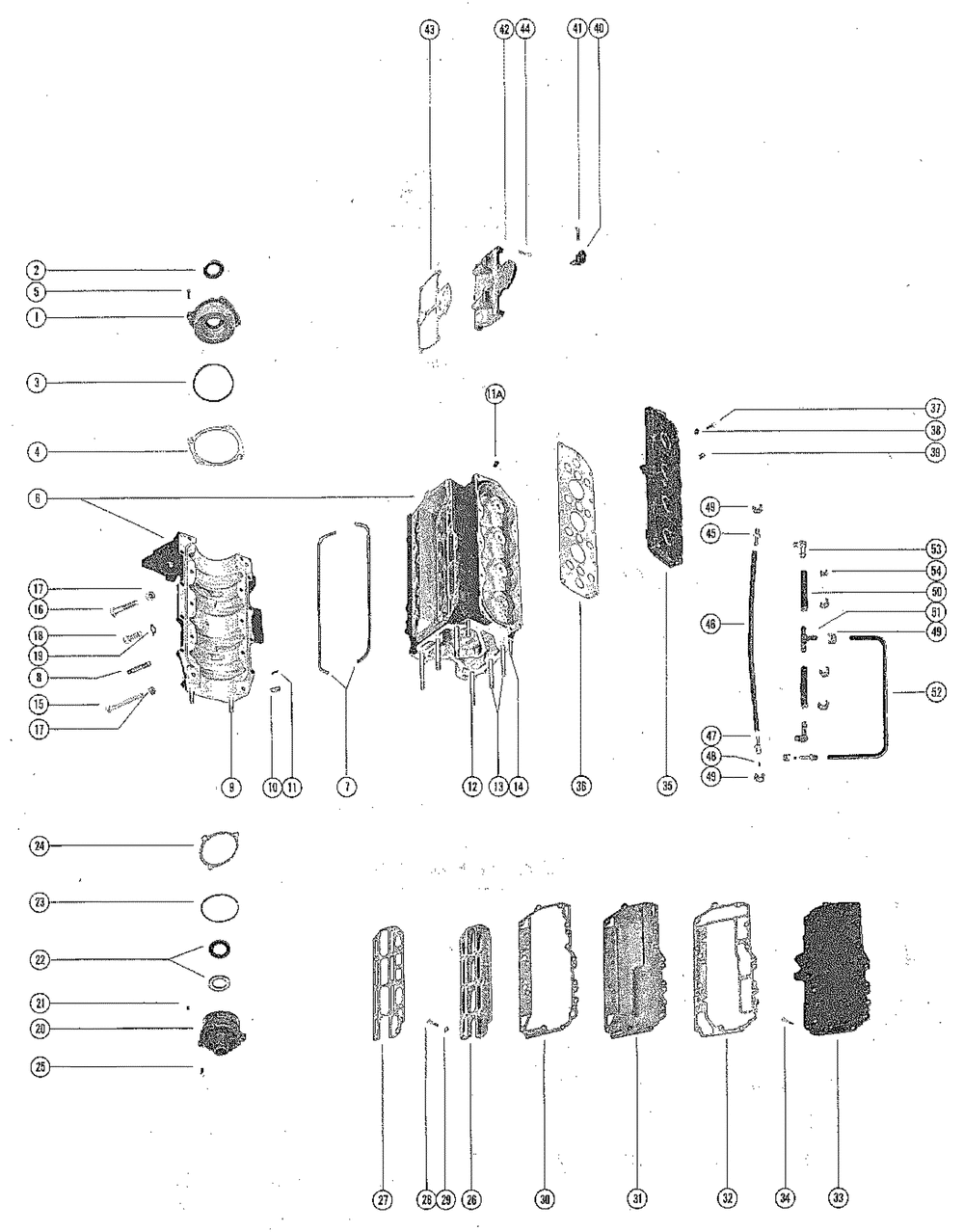

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
№ Наименование Примечание Кол-во
-- WASHER 2
-- WASHER @5 (5 per pack) 2
1 END CAP ASSY 1
2 SEAL @2 (2 per pack) 1
3 O RING @2 (2 per pack) 1
4 SHIM SET 0
5 SCREW W/LW @5 (5 per pack) 4
6 CYLINDER BLOCK 1
6 CYLINDER BLOCK 1
7 GASKET @2 (2 per pack) 2
8 STUD 4
9 STUD 2
10 PIN-DOWEL-SOLID 2
11 PIN-DOWEL @3 (3 per pack) 2
11A RESTRICTOR @5 (5 per pack) 2
12 STUD 2
13 STUD 4
14 STUD 2
15 SCREW UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW 2
15 SCREW @5 (5 per pack) 2
16 SCREW UNITED STATES 4403386 AND BELOW AUSTRALIA 8034895 AND BELOW CANADA 7067847 AND BELOW 14
17 NUT @5 (5 per pack) 18
18 SCREW @2 (2 per pack) 1
19 WASHER-TAB @5 DESIGN I W/TAB WASHER (5 per pack) 1
20 END CAP ASSY SERIAL 00000000-02670574 1
20 END CAP ASSY SERIAL 00000000-02670574 1
21 CHECK VALVE KIT 1
21 VALVE ASSY-CHECK 1
23 O RING @5 (5 per pack) 1
24 SHIM SET 0
26 COVER PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLIES 1
27 GASKET @2 PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLIES (2 per pack) 1
28 SCREW @16 (16 per pack) 16
29 LOCKWASHER @5 (5 per pack) 16
30 GASKET 1
31 PLATE 1
32 GASKET 1
33 COVER 1
34 SCREW @5 (5 per pack) 17
35 CYL BLOCK COVER 1
36 GASKET @2 (2 per pack) 1
37 SCREW @5 UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW (5 per pack) 12
38 NUT @5 (5 per pack) 12
39 PLUG-(BRASS)@2 (2 per pack) 1
40 BRACKET 1
41 SCREW @5 (5 per pack) 1
42 COVER 2
42 COVER SERIAL 00000000-02670574 2
42 COVER SERIAL 02783253-02881681 2
42 COVER SERIAL 02986444-03192962 1
42 COVER SERIAL 02986444-03192962 1
42 COVER SERIAL 02986444-03192962 1
43 GASKET 2
43 GASKET SERIAL 02783253-09999999 1
44 SCREW @5 (5 per pack) 4
44 SCREW @5 UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP (5 per pack) 12
45 FITTING 1
46 TUBING-36 INCH 1
47 CONNECTOR-FUEL 2
49 CLAMP @2 (2 per pack) 4
50 HOSE-57 INCH 2
51 TEE 1
53 ELBOW 2
54 CLAMP @5 (5 per pack) 4
