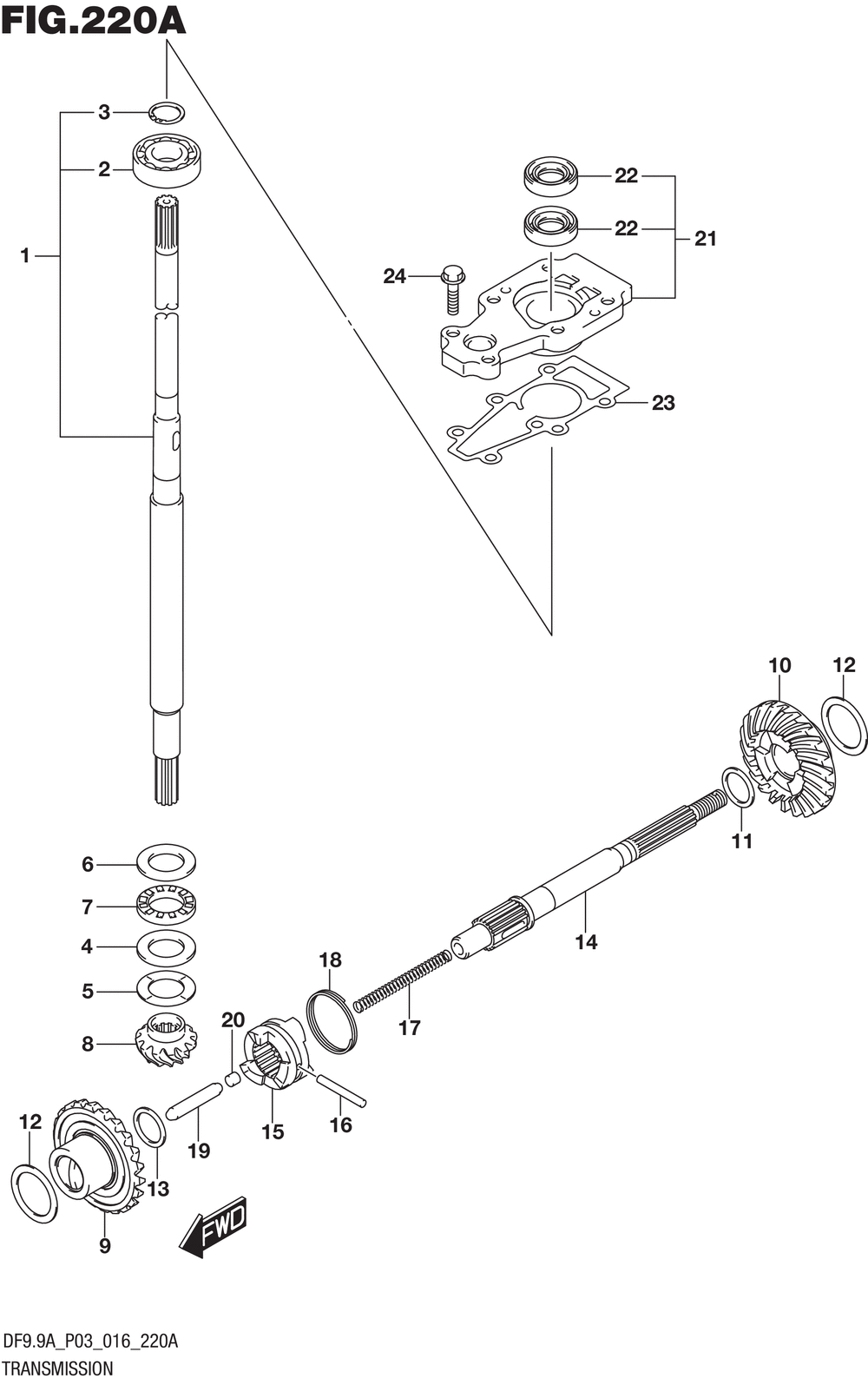

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1-1 | SHAFT ASSYDRIV (W/TRANSOM(S)) | 1 | |
| 2 | B1 15X32X9 BEAR | 1 | |
| 3 | CIRCLIP DR SHAF | 1 | |
| 4 | WASHER | 1 | |
| 5-1 | WASHER | 1 | |
| 5-2 | WASHER | 1 | |
| 5-3 | Детать | 1 | |
| 5-4 | WASHER | 1 | |
| 5-5 | SHIM 0.7 | 1 | |
| 5-6 | SHIM 0.8 | 1 | |
| 5-7 | Детать | 1 | |
| 6 | WASHER | 1 | |
| 7 | BEARING 20X35X | 1 | |
| 8 | PINION | 1 | |
| 9 | GEAR COMPFORWA | 1 | |
| 10 | GEARREVERSE | 1 | |
| 11-1 | SHIM | 1 | |
| 11-2 | SHIM | 1 | |
| 11-3 | SHIM (1.3) | 1 | |
| 11-4 | SHIM | 1 | |
| 11-5 | WASHER | 1 | |
| 11-6 | WASHER | 1 | |
| 11-7 | WASHER | 1 | |
| 11-8 | WASHER | 1 | |
| 11-9 | Детать | 1 | |
| 12-1 | SHIM (25X34X0.7) | 2 | |
| 12-2 | SHIM 0.8 | 2 | |
| 12-3 | SHIM 0.9 | 2 | |
| 12-4 | WASHER | 2 | |
| 12-5 | WASHER | 2 | |
| 12-6 | WASHER | 2 | |
| 12-7 | WASHER | 2 | |
| 13 | WASHER15X22X2 | 1 | |
| 14 | SHAFTPROPELLER | 1 | |
| 15 | SHIFTERCLUTCH | 1 | |
| 16 | PIN4X31 | 1 | |
| 17 | SPRINGRETURN | 1 | |
| 18 | SPRINGDOG | 1 | |
| 19 | RODPUSH | 1 | |
| 20 | PUSH PIN | 1 | |
| 21 | HSNG CMPDRV SH | 1 | |
| 22 | SEALOIL12.5X2 | 2 | |
| 23 | GASKETDRIVE SF | 1 | |
| 24 | BOLT 6 X 25 | 2 |
