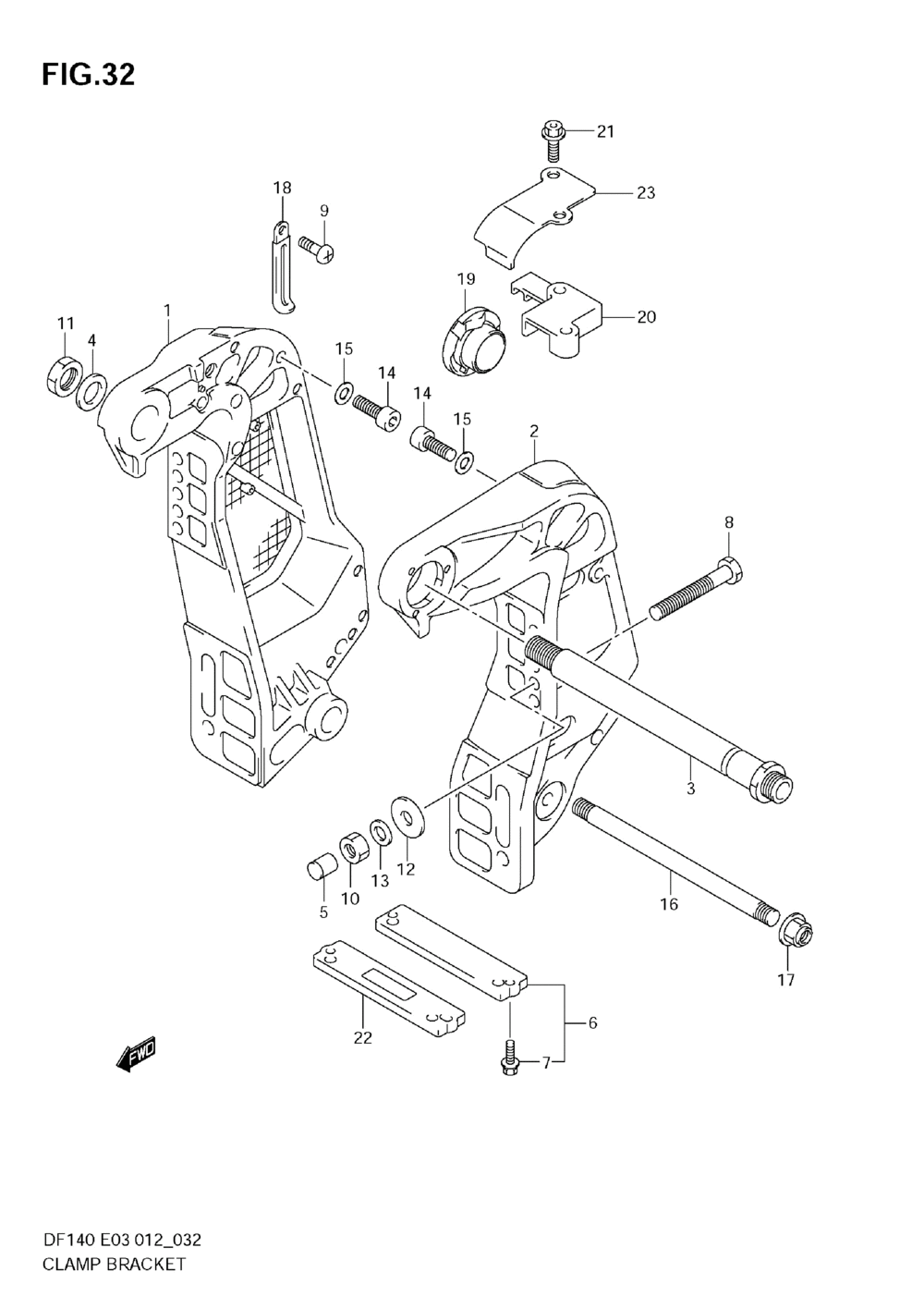

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BRACKETCLAMP S | 1 | |
| 2 | BRACKETCLAMP P | 1 | |
| 3 | SHAFTCLAMP BRA (DF140T:682149~ DF140Z:680234~ ) | 1 | |
| 4 | WASHER CLAMP B | 1 | |
| 5 | CAP TRANSOM BOL | 4 | |
| 6 | ANODE SET | 1 | |
| 7 | BOLT | 2 | |
| 8-1 | BOLT12X150PIT (OPT) | 4 | |
| 8-2 | BOLT12X115PIT | 1 | |
| 9 | SCREW 6X10 (SUS | 1 | |
| 10 | NUT (W/TRANSOM(XX)) | 4 | |
| 11 | NUT | 1 | |
| 12 | WASHER (12.5X35X3.2) | 4 | |
| 13 | WASHER12.5X22X | 4 | |
| 14 | BOLT | 2 | |
| 15 | WASHER (10.5X19X2) | 2 | |
| 16 | PINTILT LOCK | 1 | |
| 17 | NUT 14MM | 2 | |
| 18 | CLAMP | 1 | |
| 19 | CAM ASSYTILT L (MODEL:04~) | 1 | |
| 20 | HOLDERTILT LIM | 1 | |
| 21 | BOLTTILT LIMIT | 2 | |
| 22 | MAGNIESIUM ANOD (OPT) | 1 | |
| 23 | COVERTILT LIMI | 1 |
