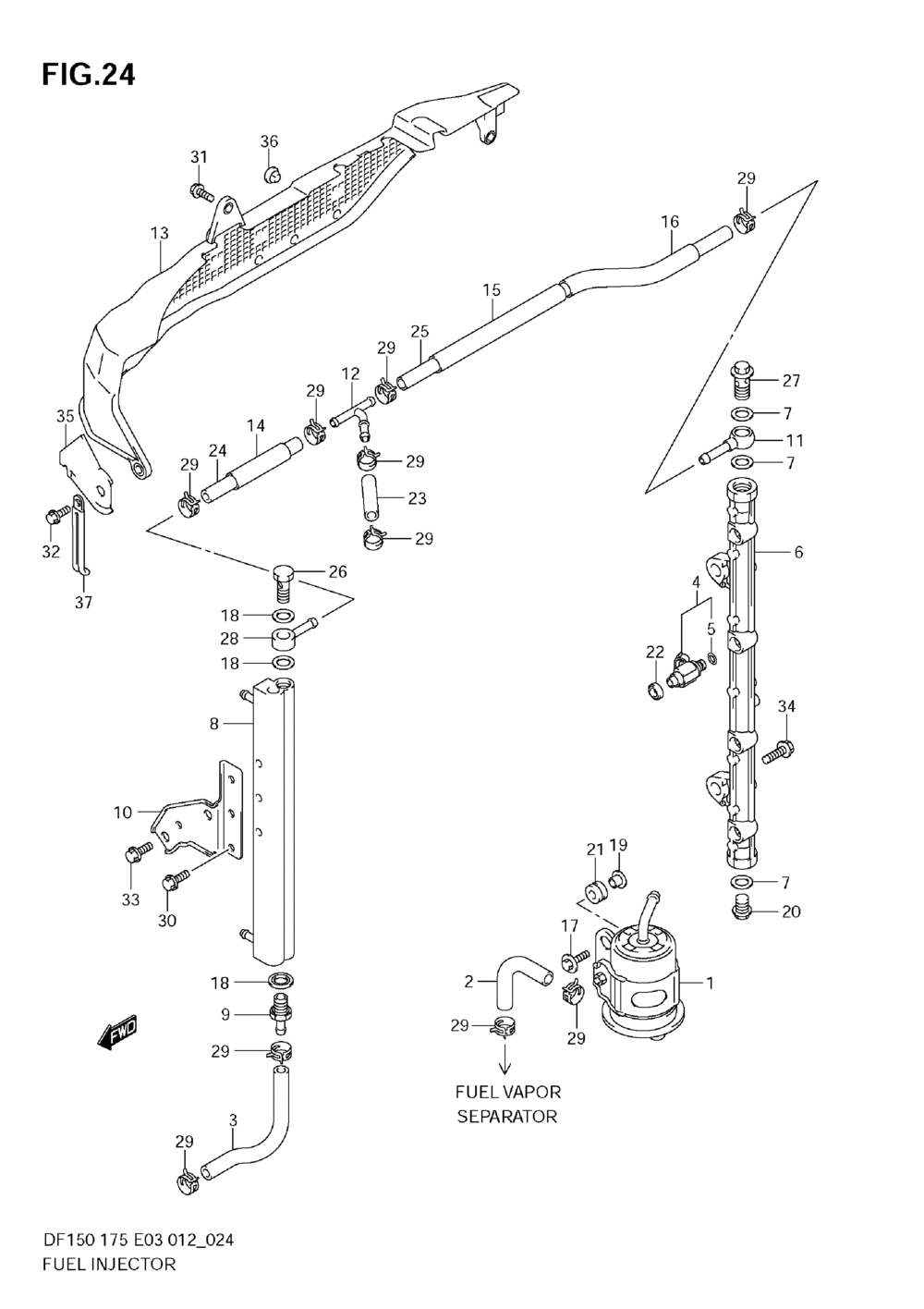

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FILTER COMPFUE | 1 | |
| 2 | HOSE FUEL (COO | 1 | |
| 3 | HOSEFUEL(COOLE | 1 | |
| 4 | INJECTOR ASSYF | 4 | |
| 5 | O RING | 4 | |
| 6 | PIPEDELIVERY | 1 | |
| 7 | GASKETDELIVERY | 3 | |
| 8 | COOLER COMPFUE | 1 | |
| 9 | UNIONFUEL HOSE | 1 | |
| 10 | BRACKET COMPFU | 1 | |
| 11 | JOINTFUEL MAIN | 1 | |
| 12 | UNION 3 WAY | 1 | |
| 13 | GUARD COMPFUEL | 1 | |
| 14 | PROTECTORFUEL (L:450->70) | 1 | |
| 15 | PROTECTORFUEL (L:340->220) | 1 | |
| 17 | BOLTVAPOR SEPA | 2 | |
| 18 | GASKET | 3 | |
| 19 | WASHER | 2 | |
| 20 | PLUGDELIVERY P | 1 | |
| 21 | CUSHION | 2 | |
| 22 | ПРОКЛАДКА ФОРСУНКИ ТОПЛИВНОЙ 09320-08062 | 4 | |
| 23 | HOSE7.5X13.5X6 (L:600->50L:600->120L:600->430) | 1 | |
| 26 | BOLTUNION FUEL | 1 | |
| 27 | BOLT UNION | 1 | |
| 28 | UNIONFUEL FILT | 1 | |
| 29 | CLIP | 10 | |
| 30 | BOLT | 3 | |
| 32 | BOLT | 2 | |
| 33 | BOLT (NOT ILLUSTRATED) | 2 | |
| 34 | BOLT | 2 | |
| 35 | GUIDEFUEL HOSE | 1 | |
| 36 | CUSHION | 3 | |
| 37 | CLAMP | 1 |
