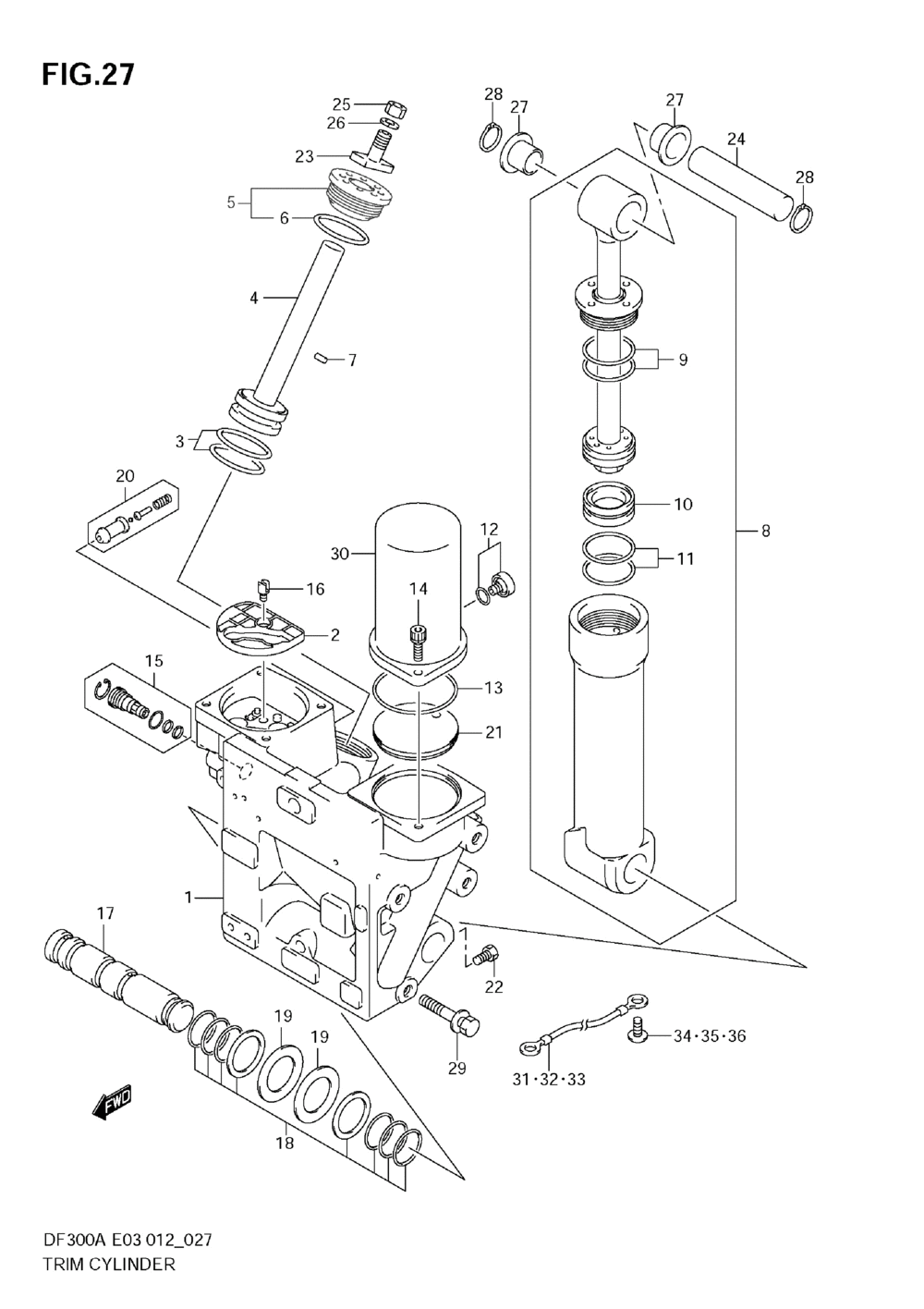

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | MANIFOLD ASSY | 1 | |
| 2 | FILTER | 1 | |
| 3 | O RING SET | 2 | |
| 4 | PISTON / RAM | 2 | |
| 5 | ROD GUIDE | 2 | |
| 6 | O RING | 2 | |
| 7 | CHECK VALVE | 1 | |
| 8 | CYLINDER ASSY | 1 | |
| 9 | O RING SET | 1 | |
| 10 | PISTONFREE | 1 | |
| 11 | O RING SET | 1 | |
| 12 | PLUG | 1 | |
| 13 | ORINGPTT | 1 | |
| 14 | BOLTRESERVOIR | 2 | |
| 15 | VALVEMANUAL | 1 | |
| 16 | JOINT DRIVE | 1 | |
| 17 | SHAFT | 1 | |
| 18 | O RING SET | 1 | |
| 19 | WASHERNYLON | 2 | |
| 20 | VALVE SETUP BL | 1 | |
| 21 | COVER COMP | 1 | |
| 22 | BOLT (DF200T:980696~ DF250Z:980343~ ) | 1 | |
| 23 | PADTRIM CYLIND | 2 | |
| 24 | SHAFTTILT CYL | 1 | |
| 25 | NUT (W/TRANSOM(L)) | 2 | |
| 26 | WASHER LOCK | 2 | |
| 27 | BUSHTILT CYL U | 2 | |
| 28 | CIRCLIPTILT CY | 2 | |
| 29 | BOLT10X50 | 8 | |
| 30 | RESERVOIR TANK | 1 | |
| 31 | LEADCLAMP TO S | 1 | |
| 32 | LEADSWIVEL TO | 1 | |
| 34 | SCREW 6X10 (SUS | 1 |
