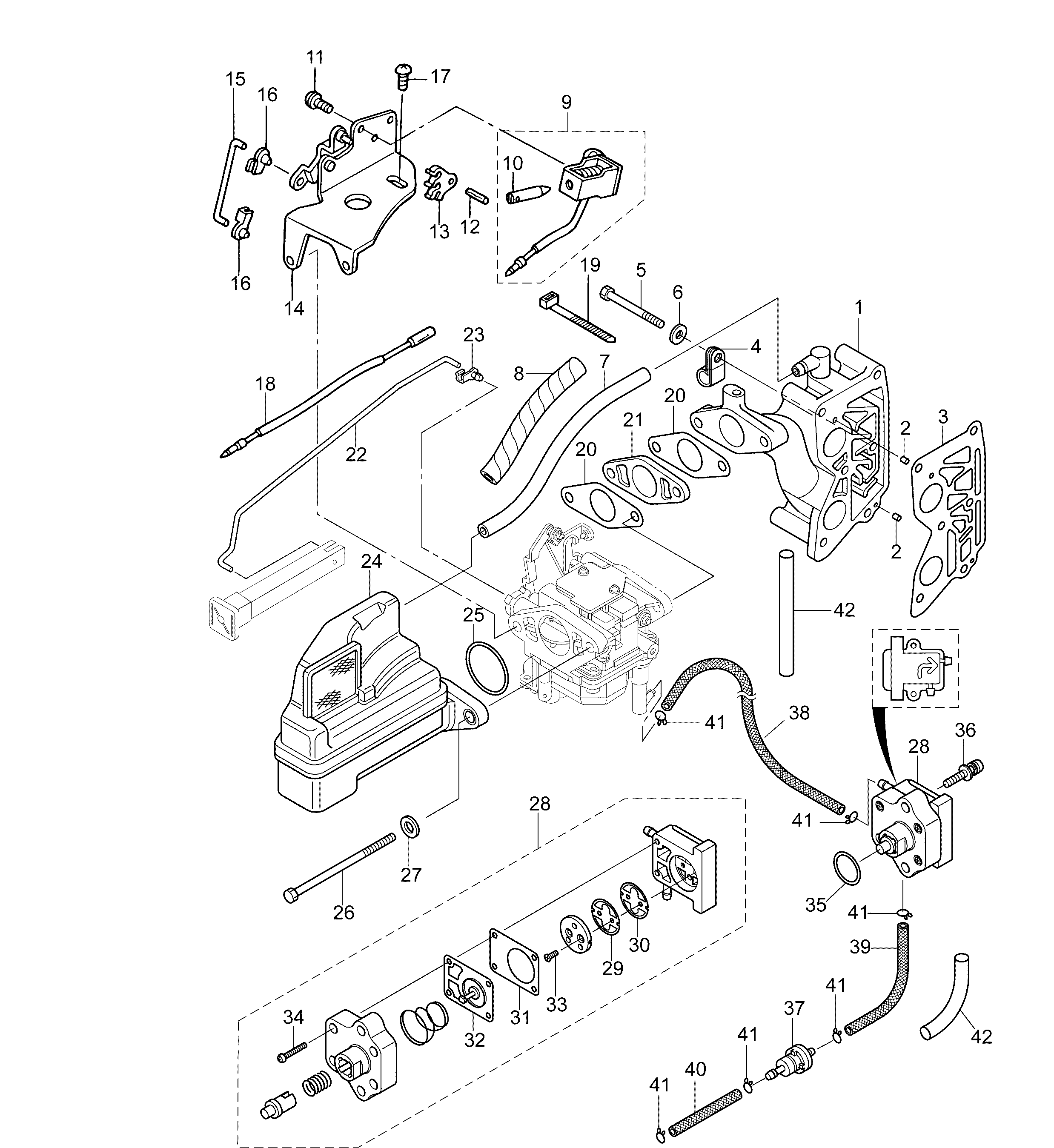

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| NS | FUEL PUMP KIT Water cooled | 1 | |
| 1 | INTAKE MANIFOLD ASSEMBLY | 1 | |
| 2 | SPRING PIN 3-10 | 2 | |
| 3 | INTAKE MANIFOLD GASKET | 1 | |
| 4 | CLAMP 6.5-14 | 1 | |
| 5 | BOLT | 6 | |
| 6 | WASHER | 6 | |
| 8 | SPIRAL TUBE PROTECTOR 10-100 | 1 | |
| 9 | CHOKE SOLENOID (EL) | 1 | |
| 10 | * PLUNGER Choke Solenoid | 1 | |
| 11 | SCREW Choke Solenoid | 3 | |
| 12 | SPRING PIN 3-12 | 1 | |
| 13 | CHOKE SOLENOID HOOK | 1 | |
| 14 | CHOKE SOLENOID BRACKET ASSEMBLY (EL) | 1 | |
| 15 | LINK ROD (EL) | 1 | |
| 16 | ROD SNAP 1.5-2 | 2 | |
| 17 | SCREW | 1 | |
| 18 | ASSIST CORD (BLUE) | 1 | |
| 19 | BAND LEAD WIRE 104 | 1 | |
| 20 | CARBURETOR GASKET | 2 | |
| 21 | INSULATOR | 1 | |
| 22 | CHOKE ROD | 1 | |
| 23 | ROD SNAP 3-B | 1 | |
| 24 | INTAKE SILENCER ASSEMBLY | 1 | |
| 25 | O-RING 2.4-35.2 | 1 | |
| 26 | BOLT Carburetor | 2 | |
| 28 | FUEL PUMP ASSEMBLY | 1 | |
| 29 | * CHECK VALVE P | 1 | |
| 30 | * CHECK VALVE R | 1 | |
| 31 | * PUMP BODY GASKET | 1 | |
| 32 | * PUMP DIAPHRAGM | 1 | |
| 33 | * SCREW | 2 | |
| 34 | * SCREW | 4 | |
| 35 | O-RING 2.6-18.7 | 1 | |
| 36 | SCREW | 2 | |
| 37 | FUEL FILTER ASSEMBLY | 1 | |
| 38 | FUEL HOSE W/PROTECTOR | 1 | |
| 39 | FUEL HOSE W/PROTECTOR | 1 | |
| 41 | CLIP Fuel Hose 10 | 6 | |
| 41 | CLIP | 6 | |
| 42 | PROTECTOR 12-120 | 2 | |
| 45 | FUEL HOSE W/PROTECTOR | 1 |
