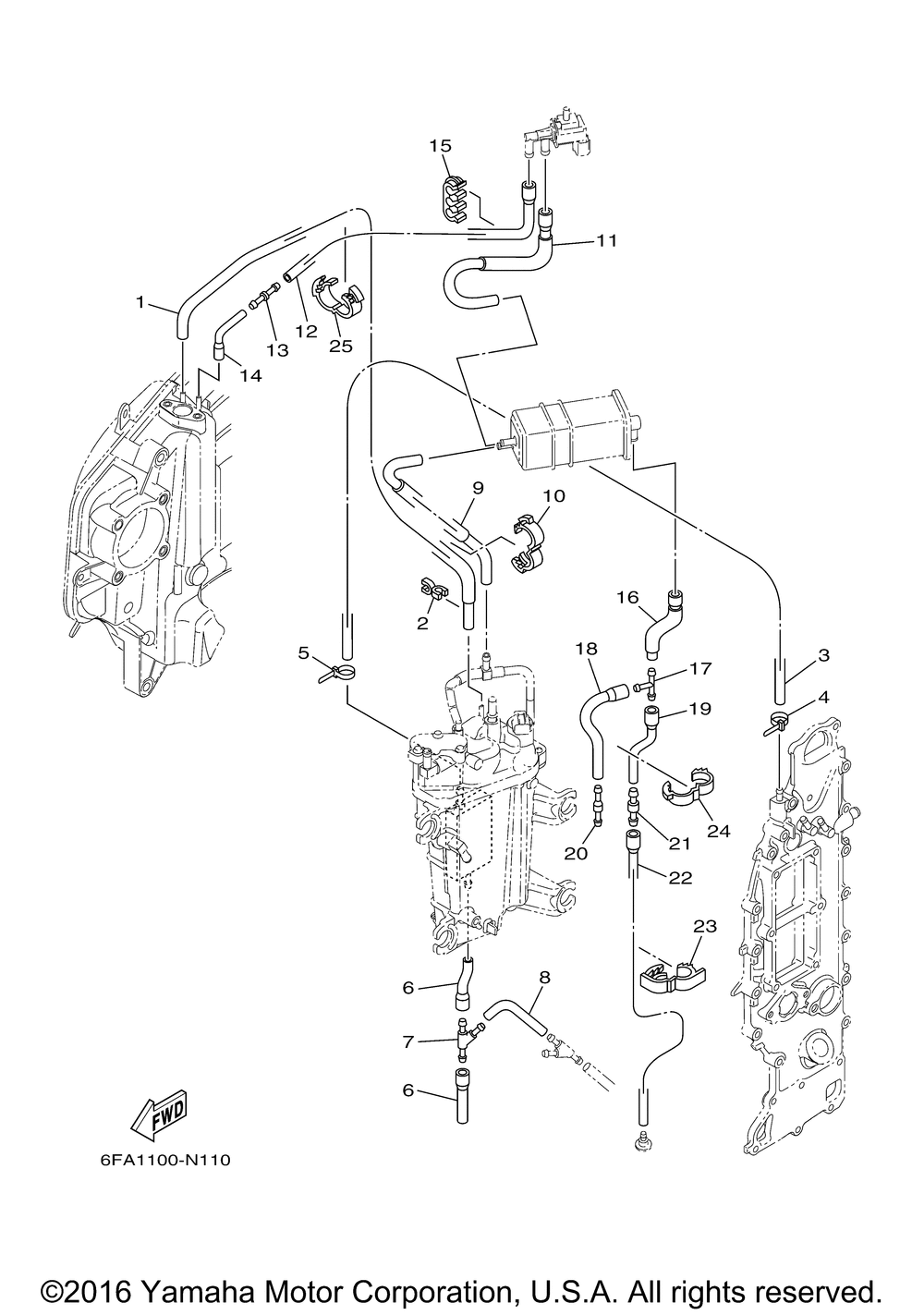

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOSE VACUUM SENSING 3 | 1 | |
| 2 | CLAMP | 1 | |
| 3 | HOSE (L470) | 1 | |
| 4 | CLAMP | 1 | |
| 6 | HOSE 1 | 2 | |
| 7 | PIPE JOINT 2 | 1 | |
| 8 | HOSE (L85) | 1 | |
| 9 | PIPE 1 | 1 | |
| 10 | CLAMP | 1 | |
| 11 | PIPE 3 | 1 | |
| 12 | HOSE | 1 | |
| 13 | ORIFICE AIR VENT | 1 | |
| 14 | PIPE 4 | 1 | |
| 15 | CLAMP | 1 | |
| 16 | HOSE 1 | 1 | |
| 17 | PIPEJOINT 4 | 1 | |
| 18 | HOSE 2 | 1 | |
| 19 | HOSE AIR 4 | 1 | |
| 20 | BREATHER | 1 | |
| 21 | BREATHER | 1 | |
| 22 | HOSE 3 | 1 | |
| 23 | CLAMP | 1 |
