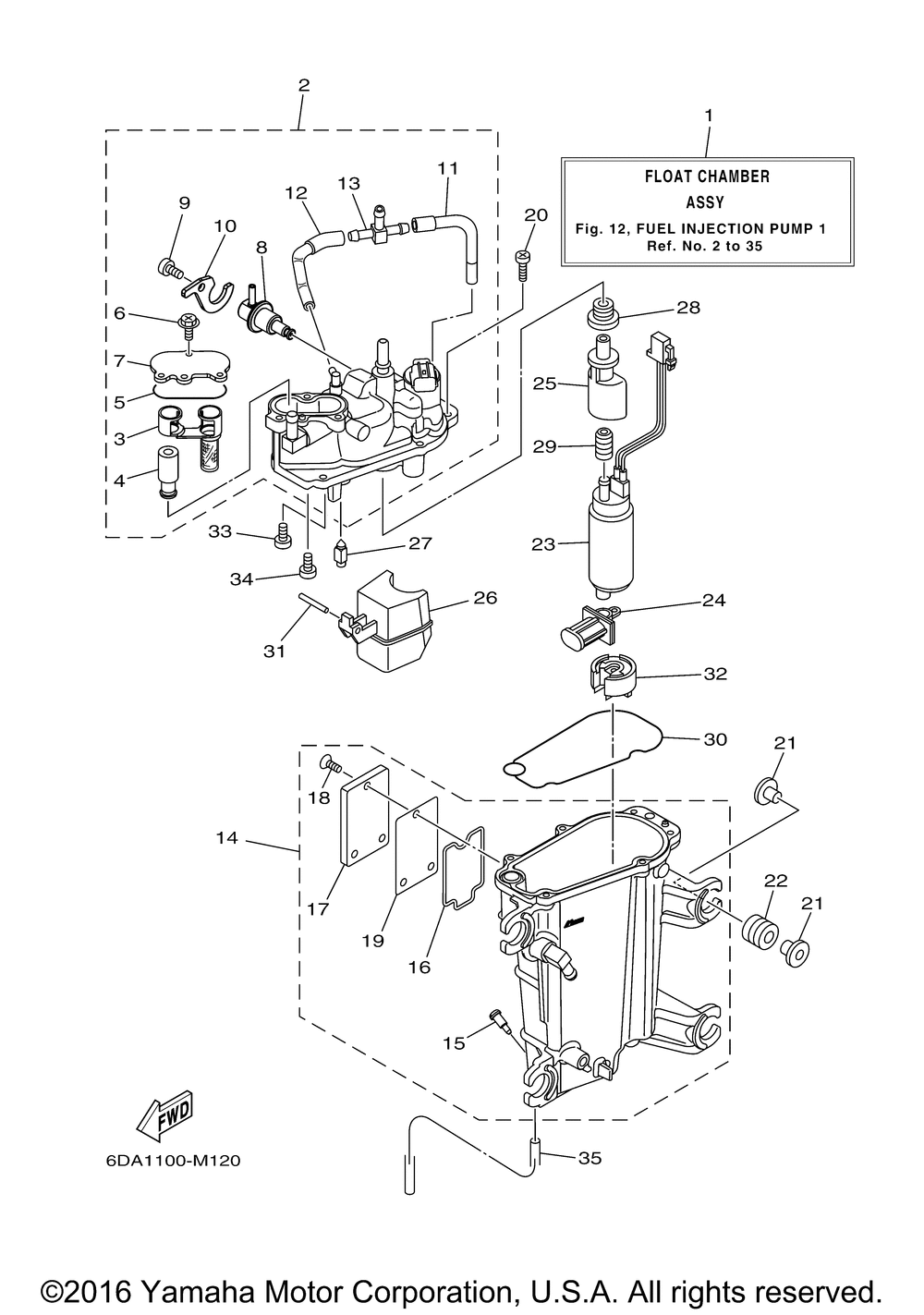

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FLOAT CHAMBER ASSY | 1 | |
| 2 | COVER FLOAT CHAMBER | 1 | |
| 3 | FILTER FUEL | 1 | |
| 4 | RELIEF VALVE ASSY | 1 | |
| 5 | O-RING | 1 | |
| 6 | SCREW | 3 | |
| 7 | COVER | 1 | |
| 8 | REGULATOR PRESSURE | 1 | |
| 9 | O-RING | 1 | |
| 10 | PLATE | 1 | |
| 11 | . .HOSE AIR 2 | 1 | |
| 12 | . .HOSE AIR 3 | 1 | |
| 13 | . .PIPE JOINT 4 | 1 | |
| 14 | BODY FLOAT CHAMBER 1 | 1 | |
| 15 | PLUG DRAIN | 1 | |
| 16 | SEAL | 1 | |
| 17 | COVER | 1 | |
| 18 | SCREW | 3 | |
| 19 | GASKET 1 | 1 | |
| 20 | SCREW | 6 | |
| 21 | COLLAR | 8 | |
| 22 | DAMPER | 4 | |
| 23 | FUEL PUMP COMP. | 1 | |
| 24 | FILTER | 1 | |
| 25 | JOINT | 1 | |
| 26 | FLOAT | 1 | |
| 27 | VALVE NEEDLE | 1 | |
| 28 | BUSH 1 | 1 | |
| 29 | DAMPER PUMP | 1 | |
| 30 | GASKET FLOAT CHAMBE | 1 | |
| 31 | PIN FLOAT | 1 | |
| 32 | COVER PUMP | 1 | |
| 33 | SCREW | 1 | |
| 34 | SCREWPAN HEAD | 1 | |
| 35 | PIPE | 1 |
