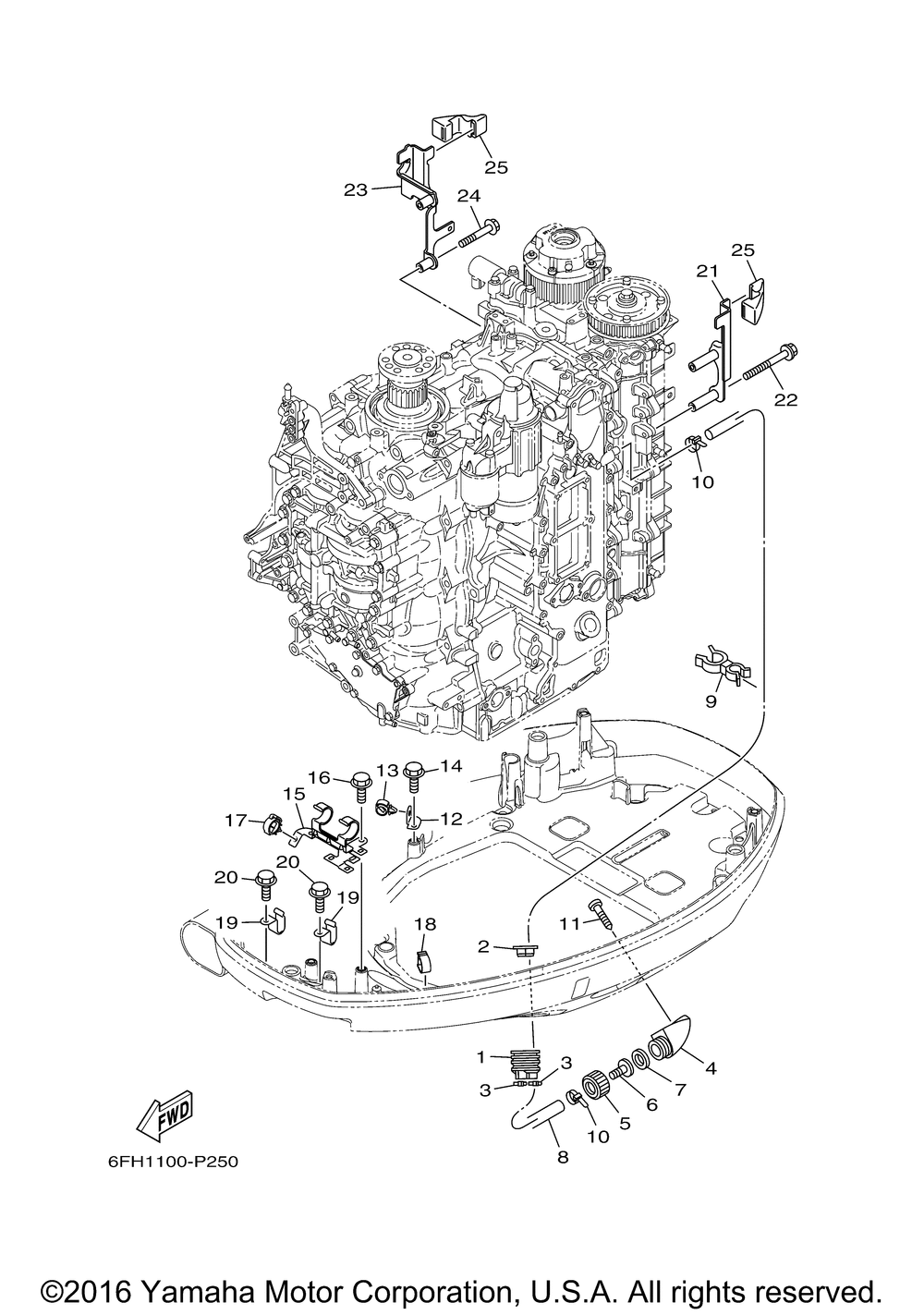

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | GROMMET | 1 | |
| 2 | SEAL CAP | 1 | |
| 3 | CLAMP | 2 | |
| 4 | ADAPTER | 1 | |
| 5 | JOINTHOSE 1 | 1 | |
| 6 | JOINT HOSE 2 | 1 | |
| 7 | GASKETHOSE JOINT | 1 | |
| 8 | PIPE 1 | 1 | |
| 9 | CLAMP | 1 | |
| 11 | SCREWTAPPING | 2 | |
| 12 | STAY CLAMP | 1 | |
| 13 | CLAMP | 1 | |
| 14 | BOLT | 1 | |
| 15 | BRACKET 3 | 1 | |
| 17 | CLAMP | 1 | |
| 18 | CLAMP | 1 | |
| 19 | CLAMP | 2 | |
| 21 | BRACKET 1 | 1 | |
| 22 | BOLT FLANGE | 2 | |
| 23 | BRACKET 2 | 1 | |
| 24 | BOLT FLANGE | 2 | |
| 25 | DAMPER | 2 |
