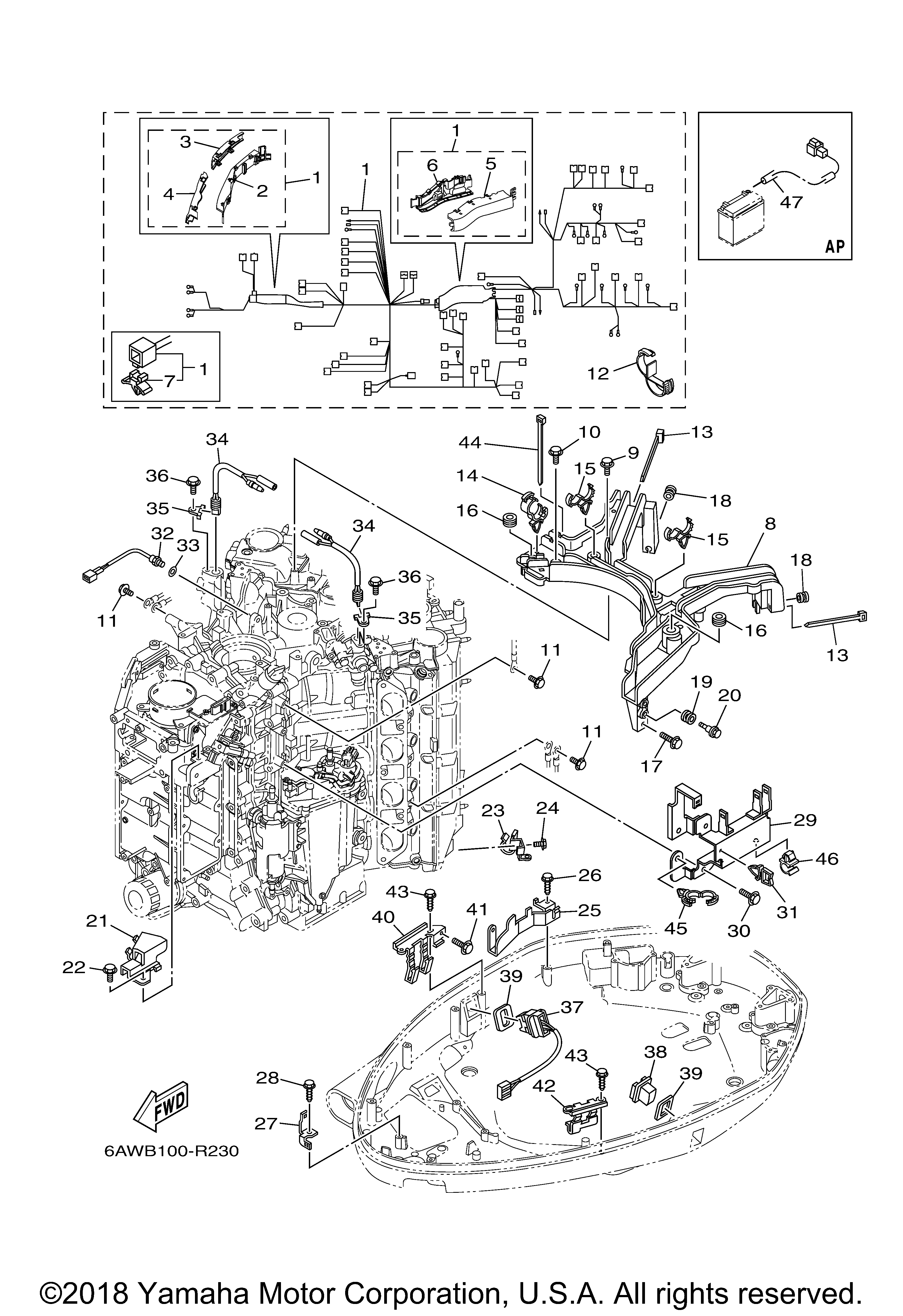

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | WIRE HARNESS ASSY | 1 | |
| 2 | . .PROTECTOR 1 | 1 | |
| 3 | . .PROTECTOR 2 | 1 | |
| 4 | . .PROTECTOR 3 | 1 | |
| 5 | . .PROTECTOR 4 | 1 | |
| 6 | . .PROTECTOR 5 | 1 | |
| 7 | CLAMP | 2 | |
| 8 | PROTECTER WIRE HARNESS | 1 | |
| 9 | BOLT WITH WASHER | 2 | |
| 10 | BOLT | 1 | |
| 11 | BOLT WITH WASHER | 3 | |
| 12 | CLAMP | 1 | |
| 13 | CLAMP (5 per pack) | 2 | |
| 14 | CLAMP (5 per pack) | 1 | |
| 15 | CLAMP | 2 | |
| 16 | GROMMET | 2 | |
| 17 | BOLT W/WASHER (USA) | 1 | |
| 18 | GROMMET (5 per pack) | 2 | |
| 20 | BOLT | 2 | |
| 21 | PLATE | 1 | |
| 22 | BOLT W/WASHER | 1 | |
| 23 | CLAMP 1 | 1 | |
| 25 | CLAMP CORD | 1 | |
| 26 | BOLT | 1 | |
| 27 | BRACKET | 1 | |
| 29 | PLATE | 1 | |
| 31 | CLAMP(4GY) | 1 | |
| 32 | THERMOSENSOR ASY | 1 | |
| 33 | WASHER (5 per pack) | 1 | |
| 34 | THERMO SWITCH ASSY | 2 | |
| 35 | PLATE | 2 | |
| 36 | BOLT W/WASHER | 2 | |
| 37 | TRIM & TILT SWITCH ASSY | 1 | |
| 38 | COVER BOTTOM | 1 | |
| 39 | GASKET | 2 | |
| 40 | BRACKET | 1 | |
| 42 | BRACKET | 1 | |
| 44 | BAND | 1 | |
| 46 | CLAMP | 2 | |
| 47 | WIRE LEAD (ISOLATOR 3.8M ) | 1 |
